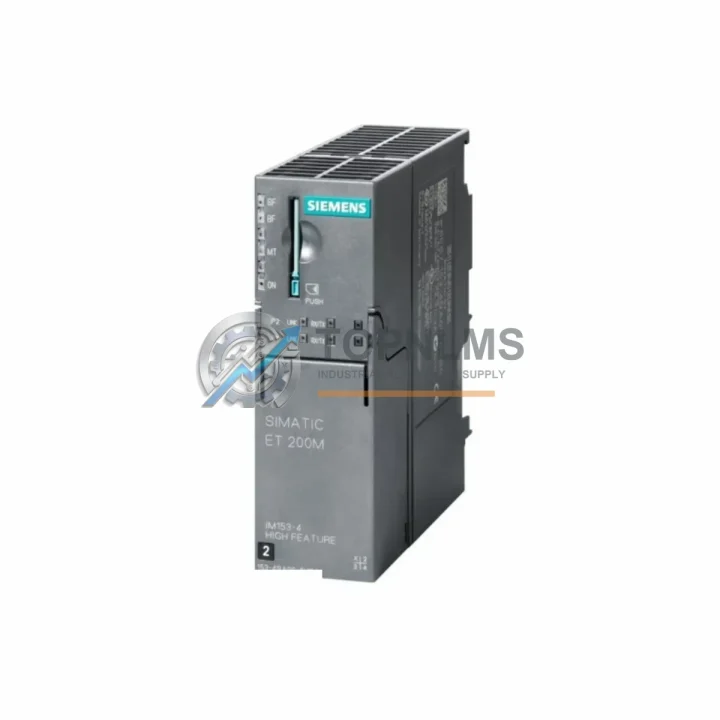

Siemens 6ES7153-4BA00-0XB0 Ruggedized DP Interface Module for Harsh Environments

The Siemens 6ES7153-4BA00-0XB0 is the IM 153-4 PROFIBUS DP Interface Module designed for the ET 200M distributed I/O station — one of the most widely deployed remote I/O platforms in the SIMATIC S7-300 ecosystem. Built to operate continuously in demanding industrial environments, this module serves as the communication backbone between the PROFIBUS DP master controller and the field-level I/O modules installed in the ET 200M rack. Whether deployed in a high-temperature foundry, a dust-laden cement plant, a vibration-intensive mining conveyor system, or a moisture-rich water treatment facility, the 6ES7153-4BA00-0XB0 delivers consistent, deterministic data exchange without compromise.

In modern industrial automation architectures, the reliability of the interface module is critical. A single point of communication failure between the PLC master and the distributed I/O station can halt an entire production line. The 6ES7153-4BA00-0XB0 addresses this risk with robust EMI shielding, wide operating temperature tolerance, and compliance with industrial vibration and shock standards — making it a trusted choice for engineers designing control systems in oil and gas processing, power generation, metallurgical plants, and chemical manufacturing.

The module integrates seamlessly into ET 200M racks populated with Siemens SM 321 digital input modules, SM 322 digital output modules, SM 331 analog input modules, and SM 332 analog output modules. It supports hot-swapping of I/O modules when used with the active bus module configuration, enabling maintenance teams to replace faulty signal modules without shutting down the entire station — a critical capability in continuous-process industries where unplanned downtime carries significant financial and safety consequences.

Communication is established over PROFIBUS DP at data rates up to 12 Mbit/s, ensuring low-latency, cycle-consistent data transfer even in electrically noisy environments. The module supports both DPV0 and DPV1 services, enabling not only cyclic I/O data exchange but also acyclic parameter reads and writes for advanced diagnostics and device configuration. This makes it fully compatible with SIMATIC S7-300 CPUs such as the CPU 315-2 DP, CPU 317-2 DP, and CPU 319-3 PN/DP, as well as SIMATIC S7-400 systems acting as DP masters.

For facilities running redundant control architectures, the 6ES7153-4BA00-0XB0 supports Y-Link configurations in conjunction with the IM 153-2 redundancy module, allowing dual-master setups that maintain process continuity even during a CPU or communication path failure. This redundancy capability is particularly valued in power plant distributed control systems (DCS), where safety-critical loops must remain operational at all times.

The module’s compact rail-mount design fits standard 35 mm DIN rails within industrial control cabinets, and its passive backplane bus connector ensures reliable mechanical contact even under continuous vibration. Field engineers frequently pair this module with Siemens PS 307 power supply modules to ensure stable 24 VDC bus voltage across the ET 200M rack, and with Siemens CP 342-5 communication processors when additional PROFIBUS DP master ports are required at the controller level.

From a procurement standpoint, the 6ES7153-4BA00-0XB0 is a high-demand spare part across industries that standardized on SIMATIC S7-300 and ET 200M platforms throughout the 2000s and 2010s. As these systems age, maintaining an adequate inventory of interface modules is essential for rapid fault recovery. TOPNLMS stocks this module and subjects each unit to functional verification testing prior to shipment, covering communication initialization, bus address configuration, and diagnostic LED behavior — ensuring that every module dispatched is field-ready.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7153-4BA00-0XB0 does not operate in isolation — it is the communication hub of a broader protection and control architecture. In a typical ET 200M station deployed in a hazardous area control cabinet, the interface module works in concert with Siemens SM 326 F-DI safety digital input modules and SM 326 F-DO safety digital output modules, which handle SIL-rated safety loops for emergency shutdown systems and fire-and-gas detection circuits. These F-modules communicate their safety data through the same PROFIBUS DP segment managed by the 6ES7153-4BA00-0XB0, leveraging PROFIsafe protocol layered over standard DP.

Power integrity for the entire ET 200M rack is maintained by the Siemens PS 307 5A or 10A power supply modules, which provide regulated 24 VDC with built-in short-circuit and overload protection. Upstream, the PROFIBUS DP segment itself is protected against ground faults and cable breaks by Siemens OLM (Optical Link Module) devices when fiber-optic PROFIBUS segments are used in environments with severe electromagnetic interference — such as near large variable frequency drives (VFDs) or high-voltage switchgear.

For installations requiring additional I/O capacity, the ET 200M rack can be expanded with Siemens SM 334 analog I/O combination modules and SM 323 digital I/O combination modules, all managed through the same 6ES7153-4BA00-0XB0 interface. When the control architecture demands higher availability, the Siemens IM 153-2 redundancy module is installed alongside the 6ES7153-4BA00-0XB0 in a Y-Link topology, ensuring that a failure of the primary DP master does not interrupt field I/O communication. Terminal modules such as the Siemens TM-E series provide reliable field wiring termination points that simplify module replacement without disturbing field cables — a key advantage during emergency spare part swaps in live production environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 6ES7153-4BA00-0XB0 is commonly deployed in wellhead control panels and pipeline SCADA remote terminal units, where PROFIBUS DP connects pressure transmitters, flow meters, and valve positioners to the central S7-300 PLC. The module’s wide temperature tolerance and vibration resistance make it suitable for outdoor equipment enclosures in desert or arctic field conditions.

In coal-fired and combined-cycle power plants, ET 200M stations equipped with this interface module are installed in turbine control panels, boiler management systems, and auxiliary plant control cabinets. The deterministic PROFIBUS DP communication cycle ensures that critical analog measurements — such as steam pressure, exhaust temperature, and generator output — are delivered to the DCS with consistent timing, supporting stable closed-loop control.

In metallurgical and steel production facilities, the module operates in rolling mill automation systems where high electromagnetic interference from large AC drives and induction furnaces is a constant challenge. Its EMI-hardened design and shielded PROFIBUS cable compatibility allow reliable operation even in close proximity to high-power electrical equipment. Water treatment and municipal utility plants rely on ET 200M systems for pump station automation, chemical dosing control, and effluent monitoring — applications where the 6ES7153-4BA00-0XB0 provides the dependable field communication layer that keeps treatment processes running within regulatory compliance parameters.
