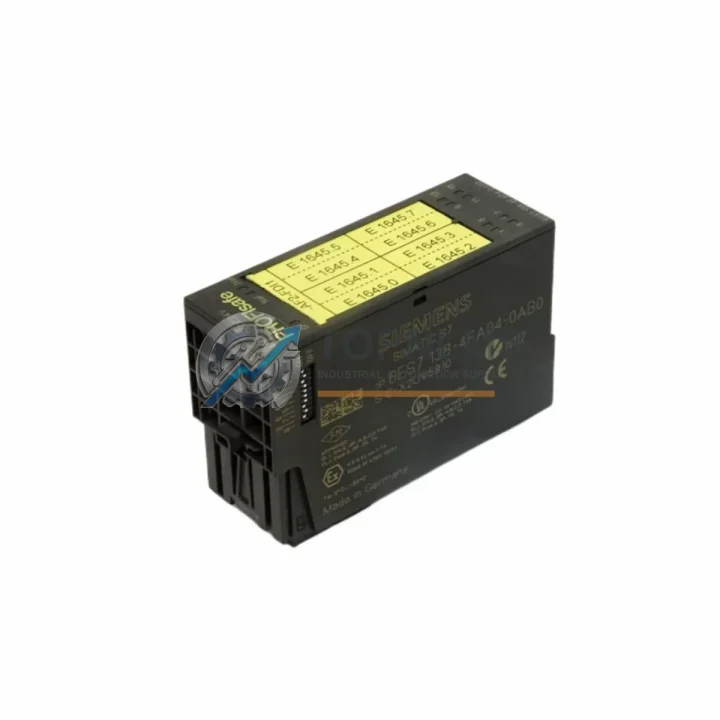

Siemens 6ES7138-4FA04-0AB0 Ruggedized Safety I/O Module

Product Overview

Siemens 6ES7138-4FA04-0AB0 Ruggedized Safety I/O Module: Industrial Resilience for Harsh Environments

The Siemens 6ES7138-4FA04-0AB0 is a fail-safe digital input module (F-DI 4x24VDC) designed for the ET 200S distributed I/O system, operating under the ProfiSafe safety communication profile over PROFIBUS DP. Built to IEC 61508 and EN 954-1 Category 4 / SIL 3 standards, this module delivers uncompromising safety integrity in environments where conventional I/O would fail — including high-temperature process areas, high-humidity coastal installations, dust-laden mining galleries, vibration-intensive press lines, and zones with severe electromagnetic interference from variable frequency drives and high-power switchgear.

Engineered in Germany to Siemens’ exacting industrial standards, the 6ES7138-4FA04-0AB0 integrates seamlessly into safety-rated control architectures where a single point of failure is not an option. Its compact rail-mount form factor and hot-swap capability make it a preferred choice for continuous production lines in oil refining, chemical processing, and power generation — environments where unplanned downtime carries both financial and safety consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated safety architecture, the 6ES7138-4FA04-0AB0 does not operate in isolation. It is typically paired with the Siemens IM 151-3 PN/DP interface module, which anchors the ET 200S station to the PROFIBUS DP or PROFINET backbone and coordinates ProfiSafe frame transmission with the central safety CPU. The safety CPU itself — commonly a SIMATIC S7-315F-2 PN/DP or S7-317F-2 DP — executes the F-program that validates the safe state signals received from this input module, ensuring that emergency stop circuits, light curtains, and two-hand control devices are processed within the required safety response time.

On the power supply side, a Siemens SITOP PSU100S 24V/10A regulated power supply provides the stable 24 VDC rail that the 6ES7138-4FA04-0AB0 and its companion modules depend on. Voltage fluctuations or transient spikes — common in heavy industrial environments near large motor starters — can corrupt I/O signals; the SITOP’s active buffering and diagnostic output prevent nuisance trips and protect the entire ET 200S station. Alongside the fail-safe input module, standard 6ES7131-4BF00-0AA0 digital input modules and 6ES7132-4BF00-0AA0 digital output modules handle non-safety process signals within the same ET 200S rack, reducing cabinet footprint and simplifying wiring.

For process-level signal conditioning, Siemens 3RK1 safety relay modules and 3SK1 safety relays are frequently installed upstream of the F-DI inputs, providing galvanic isolation and contact multiplication for emergency stop loops. Where variable frequency drives such as the Siemens SINAMICS G120 or SINAMICS S120 are present on the same bus segment, the ProfiSafe protocol’s CRC-protected frames ensure that drive safe-torque-off (STO) commands and F-DI status data are transmitted without corruption despite the high-frequency switching noise these drives generate. Communication integrity is further reinforced by Siemens PROFIBUS DP repeaters (6ES7972-0AA02-0XA0) on long cable runs in large plant layouts.

Terminal connectivity within the control cabinet is managed through Siemens TM-E15S26-A1 terminal modules, which provide the mechanical interface between the 6ES7138-4FA04-0AB0 and the DIN rail, enabling module replacement without disturbing field wiring — a critical advantage during live maintenance windows in continuous-process industries.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 6ES7138-4FA04-0AB0 monitors wellhead emergency shutdown (ESD) valves, high-pressure trip sensors, and flame detection circuits. Its SIL 3 rating satisfies the functional safety requirements of IEC 61511, the process industry safety standard, making it a compliant choice for Safety Instrumented Systems (SIS) without requiring additional external safety relays in many configurations.

In underground coal and hard-rock mining, where methane accumulation and rock-fall hazards demand instantaneous machine shutdown, this module’s fast response time and ProfiSafe watchdog mechanism ensure that conveyor belt emergency stops and ventilation fan interlocks are executed within milliseconds of a trip signal. The module’s vibration tolerance — validated to IEC 60068-2-6 — allows reliable operation on structures subject to continuous mechanical shock from blasting and heavy haulage equipment.

In power generation and grid substations, the 6ES7138-4FA04-0AB0 is deployed in turbine protection panels and transformer differential protection circuits, where it interfaces with protection relays and SCADA systems via the PROFIBUS DP network. Its EMC immunity to IEC 61000-6-2 Class A ensures that high-voltage switching transients do not induce false trip signals.

In water and wastewater treatment plants, the module monitors chemical dosing pump interlocks, high-level float switches, and chlorine gas leak detectors — all of which require fail-safe handling to prevent environmental incidents. Its wide humidity tolerance makes it suitable for wet pump rooms and outdoor junction boxes when housed in appropriately rated enclosures.

In metallurgical and steel-making facilities, continuous casting lines and rolling mills subject control equipment to extreme thermal cycling, heavy vibration, and intense electromagnetic fields from induction furnaces. The 6ES7138-4FA04-0AB0’s industrial-grade design and Siemens’ proven ET 200S platform provide the long-term reliability that these 24/7 operations demand.
