Siemens 6ES7135-4GB01-0AB0 Replacement for ET 200S: Smooth Transition from Legacy Analog Output Systems

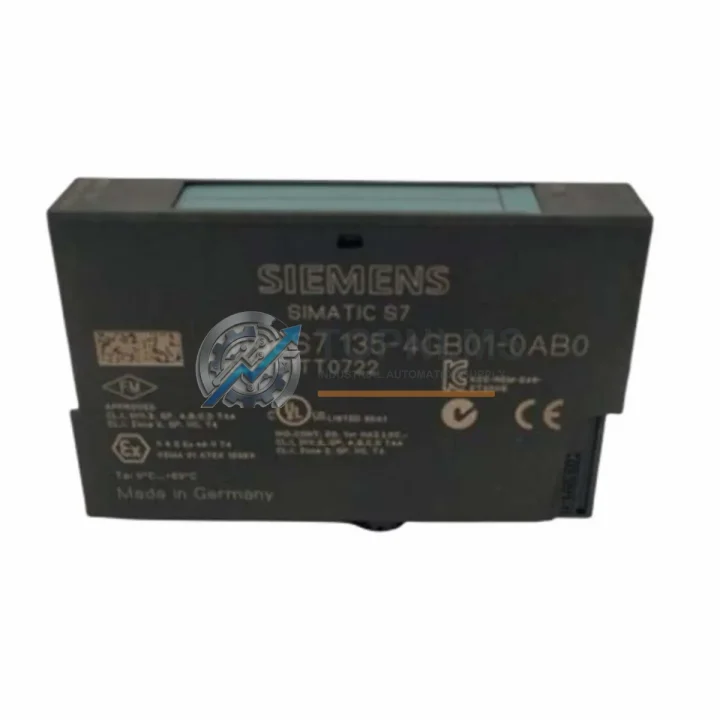

The Siemens 6ES7135-4GB01-0AB0 is a 2-channel analog output module engineered for the ET 200S distributed I/O platform, operating within the SIMATIC S7-300 and S7-400 control architecture. As legacy automation systems age and original spare parts become increasingly difficult to source, engineering teams face mounting pressure to qualify direct replacements that preserve wiring layouts, signal ranges, and program logic — without triggering a full-scale control system redesign.

This product page is specifically structured to support migration, replacement, and upgrade decisions for facilities currently operating the 6ES7135-4GB01-0AB0 or functionally equivalent discontinued analog output modules within the ET 200S platform. Whether your plant is executing a planned maintenance window, responding to an end-of-life notification, or managing an unplanned failure, this module is stocked and ready for rapid dispatch from Xiamen, China.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 6ES7135-4GB01-0AB0 rarely occurs in isolation. In most ET 200S retrofit projects, the analog output module is one component within a broader distributed I/O station that may also require attention to adjacent modules and system infrastructure. During the upgrade process, engineers commonly evaluate the 6ES7138-4CA01-0AA0 power module to ensure adequate 24 V DC supply capacity for the updated station, particularly when adding higher-current output channels or expanding the I/O count.

The interface module — typically an IM 151-1 (6ES7151-1AA05-0AB0) or the PROFINET-capable IM 151-3 PN (6ES7151-3AA23-0AB0) — governs how the entire ET 200S station communicates with the host CPU. Migrating from PROFIBUS DP to PROFINET at this stage is a common decision point, and the 6ES7135-4GB01-0AB0 is fully compatible with both interface variants, making it a future-proof choice even when the communication backbone is being upgraded simultaneously. No changes to the analog output module’s parameter assignment are required when switching interface modules.

For digital I/O co-located in the same control cabinet, the 6ES7131-4BF00-0AA0 (4-channel digital input) and 6ES7132-4BF00-0AA0 (4-channel digital output) are frequently replaced alongside the analog output module during planned maintenance windows, reducing total downtime by consolidating the retrofit into a single outage event. Coordinating these replacements also simplifies the hardware configuration update in STEP 7 or TIA Portal.

Terminal modules such as the TM-E15S24-A1 (6ES7193-4CA40-0AA0) serve as the mechanical and electrical interface between the 6ES7135-4GB01-0AB0 and the DIN rail assembly. In most cases, the existing terminal module can be retained and only the electronics module is swapped — a significant advantage for minimizing field wiring disturbance and reducing installation time. However, if the terminal module shows signs of contact wear or mechanical degradation, replacing it concurrently is recommended practice to avoid latent failures.

Where the control system includes analog signal conditioning upstream of the PLC, signal isolators or loop-powered transmitters compatible with the HART protocol may need recalibration after the module swap to ensure output accuracy within the 4–20 mA loop. This is particularly relevant in process industries where the analog output drives control valves, variable-speed drives (VSDs), or electro-pneumatic positioners. Verifying the output calibration against the process instrument’s input range is a standard commissioning step following any analog output module replacement.

For facilities upgrading from an older S7-300 rack-based architecture to the ET 200S distributed model, the CPU 315-2 DP (6ES7315-2AH14-0AB0) or CPU 317-2 PN/DP (6ES7317-2EK14-0AB0) are common host controllers that natively support the ET 200S station via PROFIBUS or PROFINET, requiring no additional configuration beyond standard hardware catalog assignment. Where the host CPU is also being upgraded as part of a broader modernization program, the ET 200S station — including the 6ES7135-4GB01-0AB0 — can be retained as-is, preserving the field wiring investment while the control logic is migrated to the new CPU platform.

In applications where the ET 200S station is mounted in a remote field cabinet and communicates over long PROFIBUS DP cable runs, the addition of a PROFIBUS repeater (6ES7972-0AA02-0XA0) may be evaluated to maintain signal integrity, especially when the cable segment length approaches the protocol’s distance limits at higher baud rates. This is a common infrastructure consideration during ET 200S expansion or relocation projects.

Retrofit Guidance FAQ

Q: Does replacing the 6ES7135-4GB01-0AB0 require changes to the field wiring?
A: No. The module mounts onto the existing ET 200S terminal module. All field wiring connections are made at the terminal module level, which remains in place. The electronics module is simply unclipped and replaced — no rewiring is required under normal conditions. This is one of the key design advantages of the ET 200S platform for maintenance and spare parts management.

Q: Is the module compatible with both PROFIBUS DP and PROFINET?
A: Yes. The 6ES7135-4GB01-0AB0 is compatible with both PROFIBUS DP (via IM 151-1 or IM 151-7) and PROFINET (via IM 151-3 PN) interface modules. The communication protocol is determined by the interface module, not the analog output module itself, so no changes to the AO module configuration are needed when migrating between protocols.

Q: Will existing STEP 7 or TIA Portal programs require modification?
A: In most cases, no. The module’s hardware identifier and I/O address mapping remain consistent with the original configuration. If the hardware catalog entry is unchanged, the program can be downloaded without modification. A hardware configuration update may be required only if the firmware revision changes the GSD/GSDML module identifier — this can be verified by comparing the module order number and firmware version in the hardware catalog.

Q: What output signal types are supported?
A: The module supports voltage output (±10 V) and current output (0–20 mA, 4–20 mA) on both channels, configurable independently via parameter assignment in the hardware configuration tool. No hardware jumpers are required — all configuration is software-based.

Q: Can this module be installed in a different physical slot within the ET 200S station?
A: Yes, subject to the station’s power budget and slot assignment rules. The module must be assigned to a slot with a compatible terminal module type (TM-E or TM-P). Slot reassignment requires a corresponding update in the hardware configuration in STEP 7 or TIA Portal.

Q: What is the lead time and shipping arrangement?
A: Stock is maintained in Xiamen, China. Orders are typically processed and dispatched within 1–3 business days. International express shipping via DHL, FedEx, and UPS is available to most destinations. Estimated transit times range from 3–7 business days for major industrial regions in Europe, Southeast Asia, the Middle East, and the Americas.

Q: Is this a new, refurbished, or tested-used unit?
A: All units supplied by TOPNLMS are either new-in-box or fully tested and verified. Product condition is clearly stated at the time of quotation. Tested units undergo the same functional verification protocol as new units prior to dispatch.

Warranty Assurance

Every 6ES7135-4GB01-0AB0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on testing, output signal range confirmation across all configured modes (voltage and current), and communication bus integrity checks. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: the defective unit is returned, inspected, and a replacement is dispatched within 5 business days of receipt confirmation. Customers are not required to wait for repair — a replacement unit is issued directly to minimize system downtime and avoid extended production interruptions.

Our after-sales team is reachable via email and phone for technical pre-sales consultation, compatibility verification, and post-installation support. We maintain documentation archives including datasheet references, GSD files, GSDML files, and wiring diagrams to support your engineering team throughout the retrofit and commissioning process.

For bulk procurement, project-based pricing, and multi-unit orders, please contact us directly. Volume discounts and priority stock allocation are available for registered system integrators, EPC contractors, and MRO procurement teams.
