Siemens 6DD1661-0AD0 PROFIBUS DP Module SIMATIC TDC: Industrial Resilience in the Harshest Environments

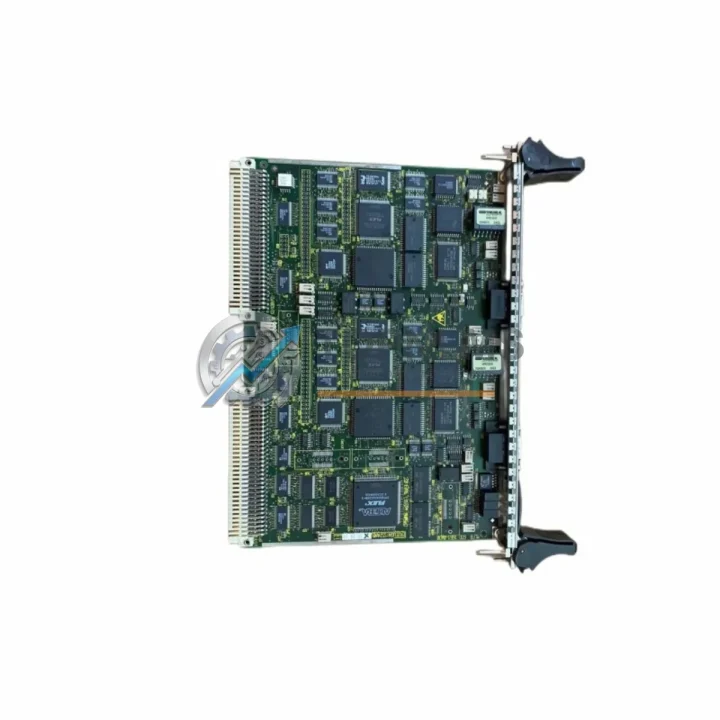

The Siemens 6DD1661-0AD0 is a PROFIBUS DP interface communication module designed for the SIMATIC TDC (Technology and Drive Control) platform — one of Siemens’ most powerful and demanding high-performance controller architectures. Built to operate reliably in environments characterized by extreme temperature fluctuations, high electromagnetic interference, mechanical vibration, airborne particulates, and continuous 24/7 production cycles, this module serves as the critical communication backbone between the TDC controller and field-level devices across PROFIBUS DP networks.

In heavy industrial settings — steel mills, chemical processing plants, paper and pulp facilities, offshore platforms, and large-scale power generation sites — the communication layer between the controller and field devices is the most vulnerable point in the automation architecture. A failed or degraded communication module can halt an entire production line, trigger safety shutdowns, or cause loss of process visibility at the worst possible moment. The 6DD1661-0AD0 addresses this vulnerability by providing a dedicated, hardware-isolated PROFIBUS DP interface that offloads communication processing from the main CPU module, ensuring that fieldbus traffic does not compete with real-time control cycle execution.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6DD1661-0AD0 does not operate in isolation — it is one component in a tightly integrated TDC control system where every module must perform reliably under the same harsh conditions. Understanding the full system context is essential for procurement engineers planning a spare parts strategy or a system upgrade.

At the heart of the SIMATIC TDC architecture sits the CPU551 or CPU555 central processing unit, which handles the high-speed closed-loop control algorithms — torque control, speed regulation, and position synchronization — that define TDC’s role in demanding drive and motion applications. The 6DD1661-0AD0 connects to this CPU via the TDC rack backplane, providing a dedicated PROFIBUS DP channel that allows the CPU to communicate with distributed field devices without interrupting its real-time control cycle. In environments with strong electromagnetic interference — such as those generated by large variable frequency drives, arc furnaces, or high-current bus bars — the hardware isolation provided by a dedicated communication module like the 6DD1661-0AD0 is far more reliable than software-based communication stacks running on a shared CPU.

On the PROFIBUS DP network connected to this module, typical field devices include SINAMICS S120 drive systems, ET 200M distributed I/O stations, and SIMOTION D motion controllers. In a rolling mill or continuous casting line, for example, the 6DD1661-0AD0 may simultaneously manage communication with multiple SINAMICS S120 drive units controlling individual roll stands, while the TDC CPU handles the tension and speed cascade control across the entire line. The reliability of this communication link directly determines whether the line can maintain product quality tolerances during acceleration, deceleration, and steady-state operation.

For power distribution within the TDC rack, the PS505 power supply module provides the regulated 24 VDC backplane voltage that feeds the 6DD1661-0AD0 and all other modules in the rack. In facilities with unstable mains power — common in heavy industrial sites with large motor loads — a SITOP UPS1600 uninterruptible power supply upstream of the control cabinet provides ride-through capability during voltage dips, protecting the TDC system from communication interruptions caused by power quality events rather than hardware faults.

Where the PROFIBUS DP network spans long distances across a large plant floor, PROFIBUS repeaters or optical link modules (OLM) are used to extend the network beyond the standard cable length limits and to provide galvanic isolation between network segments. This is particularly important in facilities where ground potential differences between buildings or process areas can introduce common-mode noise onto the PROFIBUS cable — a known cause of intermittent communication errors that are difficult to diagnose without proper isolation.

For facilities that also operate SIMATIC S7-400 PLCs alongside the TDC system, the CP 443-5 Extended PROFIBUS communication processor provides the equivalent fieldbus interface function on the S7-400 platform. Maintaining a stock of both the 6DD1661-0AD0 and the CP 443-5 Extended ensures that the maintenance team can respond to communication module failures on either platform without waiting for emergency procurement — a critical consideration for facilities where production downtime costs are measured in thousands of dollars per hour.

Application in Critical Infrastructure

The SIMATIC TDC platform, and by extension the 6DD1661-0AD0 communication module, was specifically engineered for the most demanding segments of industrial automation — applications where standard PLCs are insufficient and where system failure carries consequences beyond lost production.

Steel and Metals Processing: In hot rolling mills and cold rolling lines, the TDC system controls the speed and torque of multiple drive stands in precise synchronization. The 6DD1661-0AD0 manages the PROFIBUS DP communication between the TDC controller and the SINAMICS drive systems at each stand, transmitting speed references and receiving actual value feedback at cycle times measured in milliseconds. The module must maintain this communication reliably in an environment filled with radiated EMI from high-power thyristor drives, mechanical vibration from rolling equipment, and airborne metallic dust from the rolling process.

Oil and Gas Processing: In compressor control and pipeline pumping stations, the TDC platform is used for high-speed surge control and anti-surge protection — applications where a communication failure between the controller and the field instrumentation can result in compressor damage or process shutdown. The 6DD1661-0AD0’s dedicated PROFIBUS DP interface ensures that surge control loop communication is not affected by other system activities, maintaining the sub-100 ms response times required for effective surge protection.

Power Generation: In turbine control and generator excitation systems, the TDC platform provides the high-speed closed-loop control required for grid synchronization and load sharing. The 6DD1661-0AD0 connects the TDC controller to field-level measurement and protection devices via PROFIBUS DP, providing the communication infrastructure for real-time monitoring of turbine speed, generator output, and protection relay status. In this application, the module operates continuously for years without scheduled maintenance windows, making long-term reliability and the availability of qualified spare parts the primary procurement criteria.

Water and Wastewater Treatment: Large pumping stations and treatment plants use the TDC platform for coordinated pump control and process optimization. The 6DD1661-0AD0 enables communication with variable speed drives controlling large centrifugal pumps, allowing the TDC system to implement energy-efficient flow control strategies while maintaining the process parameters required for regulatory compliance. In outdoor or partially exposed installations, the module’s operating temperature range and humidity tolerance are critical to year-round reliability.
