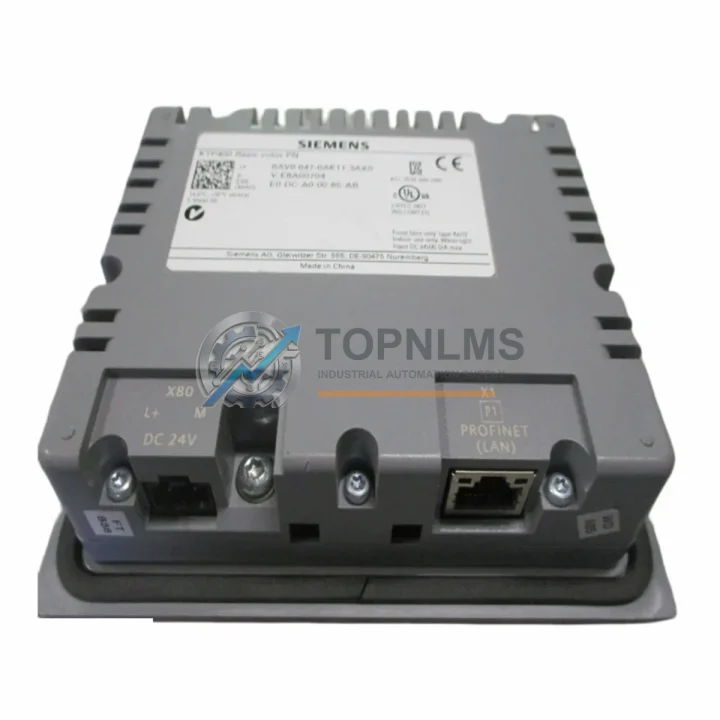

Siemens 6AV6647-0AK11-3AX0 Ruggedized HMI Panel for Harsh Environments

Product Overview

Siemens 6AV6647-0AK11-3AX0 Ruggedized HMI Panel for Harsh Environments

The Siemens 6AV6647-0AK11-3AX0 — commercially designated as the SIMATIC KTP400 Basic PN — is a 4-inch key-and-touch HMI panel engineered for continuous, reliable operation in demanding industrial environments. Designed as part of Siemens’ SIMATIC HMI Basic Panel family, this unit delivers robust human-machine interface functionality where conventional display hardware would fail: high-vibration production lines, dusty mineral processing facilities, high-humidity water treatment plants, and electrically noisy power distribution substations.

Built on Siemens’ proven SIMATIC platform, the 6AV6647-0AK11-3AX0 integrates seamlessly with SIMATIC S7-1200 and S7-300 series PLCs via PROFINET, enabling real-time process visualization and operator control without the latency or reliability risks associated with legacy serial interfaces. Its compact 4-inch TFT display with 4-wire resistive touch and four dedicated function keys provides a tactile, glove-friendly interface suited to operators working in PPE-mandatory zones — including oil and gas wellheads, chemical dosing stations, and metal smelting control rooms.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated SIMATIC automation architecture, the 6AV6647-0AK11-3AX0 operates as the operator interface layer within a control cabinet that typically houses a SIMATIC S7-1200 CPU — such as the CPU 1214C DC/DC/DC (6ES7214-1AG40-0XB0) — alongside SIMATIC ET 200SP distributed I/O modules for remote field signal acquisition. The HMI communicates over PROFINET with the PLC, which in turn manages field devices including SINAMICS V20 variable frequency drives for motor speed regulation and SITOP PSU100S 24 V power supply units that deliver stable, filtered DC power to the entire control panel.

Electromagnetic interference is a persistent threat in heavy industrial environments. The 6AV6647-0AK11-3AX0 is rated to EN 61000-6-2 industrial EMC immunity standards, making it compatible with installations that include SIRIUS 3RT2 contactors, SIRIUS 3RV2 motor protection circuit breakers, and SIRIUS 3SK1 safety relays — all of which generate switching transients that lesser HMI hardware cannot tolerate. For installations requiring functional safety, the panel integrates naturally with SIMATIC Safety F-CPU modules and PROFISAFE-capable I/O, ensuring that the operator interface remains operational even when safety-rated shutdown sequences are active.

Communication integrity is maintained through SCALANCE X005 unmanaged Industrial Ethernet switches, which provide robust PROFINET segment management within the control cabinet. For applications requiring remote diagnostics or SCADA connectivity, the 6AV6647-0AK11-3AX0 can be networked alongside SIMATIC S7-1200 CP 1243-1 communication processors, enabling secure data exchange with higher-level MES or DCS systems without compromising panel-level response times.

Application in Critical Infrastructure

The Siemens 6AV6647-0AK11-3AX0 has established a strong track record across critical infrastructure sectors where unplanned downtime carries severe operational and safety consequences.

In oil and gas upstream operations, the KTP400 Basic PN is deployed in wellhead control panels and compressor station skids, where it provides operators with real-time pressure, flow, and valve status visualization. Its IP65 front-face protection prevents hydrocarbon particulates and wash-down water from compromising the display, while its vibration tolerance ensures readability on skid-mounted equipment subject to compressor-induced oscillation.

In mining and mineral processing, the panel is integrated into conveyor drive control stations and crusher monitoring cabinets. The combination of resistive touch input — operable with heavy-duty gloves — and dedicated function keys allows operators to execute emergency stop sequences and mode changes without removing PPE, a critical safety requirement in underground and open-cut mining environments.

In power generation and distribution, the 6AV6647-0AK11-3AX0 serves as the local HMI for transformer protection relay panels and auxiliary control systems in substations. Its compliance with industrial EMC standards ensures stable operation in environments with high magnetic field intensities generated by power transformers and bus bars.

In water and wastewater treatment, the panel is used in pump station control cabinets and chemical dosing skids, where high ambient humidity and chemical vapors demand IP65-rated enclosure integrity. Its low power consumption (3.6 W typical) makes it suitable for solar-powered remote pump stations where energy budgets are constrained.

In metallurgy and steel production, the KTP400 Basic PN is mounted in rolling mill control desks and furnace temperature management stations, where radiant heat and airborne metal dust create an exceptionally hostile operating environment. The panel’s wide storage temperature range (−20 °C to +60 °C) ensures it survives both cold-start commissioning in winter and sustained high-ambient operation during summer production campaigns.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 6AV6647-0AK11-3AX0?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification — including power-on testing, display integrity check, and PROFINET port continuity — before dispatch. Warranty claims are processed directly through TOPNLMS with no requirement to engage the OEM warranty chain, minimizing downtime for our customers.

Q2: How do I confirm compatibility between the 6AV6647-0AK11-3AX0 and my existing SIMATIC PLC or TIA Portal version?
The KTP400 Basic PN is natively supported in SIMATIC WinCC Basic, which is included with TIA Portal V13 SP1 and all subsequent versions through TIA Portal V19. It communicates exclusively via PROFINET; legacy MPI or PROFIBUS connections are not supported on this model. For S7-300 integration, a PROFINET-capable CPU or CP module is required. Our technical team can review your existing hardware configuration and TIA Portal version to confirm compatibility before purchase.

Q3: Is long-term supply availability guaranteed for this model?
The 6AV6647-0AK11-3AX0 is maintained in TOPNLMS inventory as a strategic spare part for installed base support. We stock both new and tested-serviceable units to support customers with legacy SIMATIC HMI installations who require like-for-like replacement without engineering a panel redesign. Customers with recurring demand can arrange scheduled supply agreements to ensure availability during planned maintenance shutdowns.

Q4: What is the typical lead time and shipping arrangement for urgent replacement orders?
In-stock units are dispatched within 1–2 business days of order confirmation. Express international freight options (DHL Express, FedEx International Priority) are available for critical plant breakdown situations. All shipments include commercial invoice, packing list, and test report documentation to facilitate customs clearance. Contact our team at [email protected] or +86 18359293191 to confirm current stock status and arrange priority dispatch.
