Siemens 6AV6647-0AH11-3AX1 Replacement for KTP400 Basic PN

Product Overview

Siemens 6AV6647-0AH11-3AX1 Replacement for KTP400 Basic PN: Smooth Legacy System Upgrade

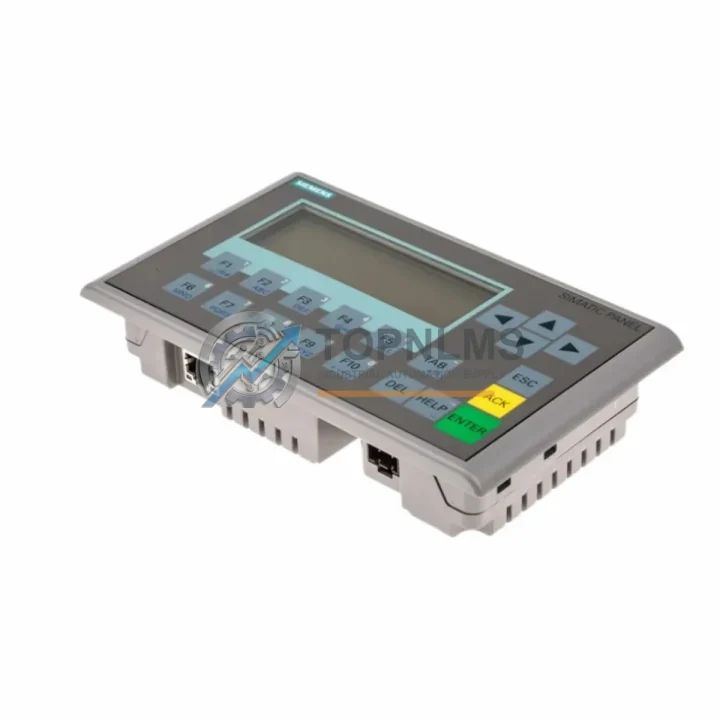

Replacing a discontinued or aging SIMATIC HMI panel in an active production environment requires a verified, low-disruption upgrade path. The Siemens 6AV6647-0AH11-3AX1 — the SIMATIC KTP400 Basic Mono PN — is a 4-inch monochrome key/touch panel with a native PROFINET interface, engineered for compact control cabinet integration. It is the direct functional successor to the KTP400 Basic DP (6AV6647-0AA11-3AX0) and a proven replacement for legacy panels including the OP77B and TP177B, which operated on MPI or PROFIBUS DP.

The transition to the 6AV6647-0AH11-3AX1 is designed to minimize engineering rework. The panel cutout dimensions are identical to the KTP400 Basic DP, the 24 V DC power supply requirement is unchanged, and the IP65 front protection rating is maintained. The primary engineering task is migrating the communication interface from PROFIBUS DP to PROFINET and updating the HMI project in TIA Portal — a process supported by Siemens’ built-in migration wizard for WinCC flexible projects.

TOPNLMS stocks the 6AV6647-0AH11-3AX1 for immediate dispatch from our Xiamen warehouse. Every unit undergoes pre-shipment functional verification. All orders are covered by a 12-month replacement warranty. Our industrial procurement team supports B2B buyers across manufacturing, energy, water treatment, and process automation sectors.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 6AV6647-0AH11-3AX1 rarely involves the HMI panel in isolation. In most retrofit projects, the surrounding system architecture must be evaluated and selectively upgraded to ensure stable, long-term operation across the full control loop.

When the existing installation uses a KTP400 Basic DP (6AV6647-0AA11-3AX0) connected to an S7-300 CPU via PROFIBUS DP, the most common migration path preserves the existing PLC rack. The S7-300 CPU — whether a CPU 315-2 DP or CPU 317-2 PN/DP — continues to manage the process, while a CP 343-1 Lean communications processor is added to the rack to bring the controller onto the PROFINET segment. This allows the 6AV6647-0AH11-3AX1 to connect directly over Ethernet without replacing the CPU or the existing SM321 digital input and SM322 digital output signal modules already installed in the rack.

For sites migrating from an OP77B or TP177B connected via MPI, the protocol gap is wider. In these cases, a Siemens IE/PB Link PN IO gateway bridges the legacy PROFIBUS segment to the new PROFINET network, preserving the existing fieldbus wiring infrastructure while enabling the KTP400 Basic Mono PN to communicate natively. This approach is particularly cost-effective when the PROFIBUS segment also serves distributed I/O stations such as ET 200M or ET 200S remote I/O racks that are not yet scheduled for replacement.

Where the project scope includes a full controller upgrade alongside the HMI, the SIMATIC S7-1200 CPU 1214C DC/DC/DC or the S7-1500 CPU 1511-1 PN are the natural pairing targets. Both controllers communicate natively with the 6AV6647-0AH11-3AX1 over PROFINET, and TIA Portal manages the HMI configuration and PLC program within a single unified engineering environment. Signal wiring from existing field devices can typically be re-terminated directly onto the new controller’s onboard I/O or onto a SIMATIC ET 200SP distributed I/O station mounted in the same or an adjacent cabinet.

Power distribution within the control cabinet should be reviewed as part of the retrofit. The 6AV6647-0AH11-3AX1 draws 24 V DC at approximately 3.5 W. If the existing SITOP PSU100S 24 V / 10 A power supply module is already loaded near capacity due to additional I/O expansions or new Ethernet switches added to the PROFINET segment, a supplementary power supply or a load calculation review is recommended before commissioning. An unmanaged SCALANCE XB005 Industrial Ethernet switch is commonly added to distribute the PROFINET segment across the HMI, the CP module, and any remote I/O stations without requiring a managed network infrastructure.

Programming and commissioning access is simplified with the PROFINET interface. TIA Portal communicates with the 6AV6647-0AH11-3AX1 directly over the standard RJ45 Ethernet port, eliminating the need for a dedicated PC Adapter USB A2 or MPI programming cable that older OP and TP panels required. The engineering laptop connects to the same Ethernet switch as the HMI and PLC, enabling simultaneous online access to both devices during commissioning and functional testing.

For installations in chemically aggressive or electrically noisy environments — common in water treatment, oil and gas, and heavy manufacturing — signal isolators or Zener safety barriers at the terminal block level should be retained or added as part of the retrofit. These components are independent of the HMI replacement and do not affect the PROFINET communication path, but they protect the 24 V DC supply rail and analog signal integrity across the upgraded system.

Retrofit Guidance FAQ

Q: Can the 6AV6647-0AH11-3AX1 directly replace a KTP400 Basic DP (6AV6647-0AA11-3AX0)?
A: Yes. The panel cutout, mounting depth, and 24 V DC power connector are identical. The only physical change is replacing the DB9 PROFIBUS cable with a standard Cat5e or Cat6 RJ45 Ethernet cable. In TIA Portal, the HMI device type is updated from the DP variant to the PN variant, and the communication connection is reconfigured to PROFINET. If the connected PLC has a PROFINET interface (S7-1200, S7-1500, or S7-300/400 with a CP module), no gateway is required.

Q: Do I need to rewrite the HMI project from scratch?
A: Not necessarily. TIA Portal includes a migration tool that imports WinCC flexible projects. Screen layouts, tag assignments, and alarm configurations can be partially migrated. Manual review is recommended for communication driver settings and tag addressing, which differ between the DP and PN variants. For simple projects with fewer than 50 screens, migration typically takes 2–4 hours of engineering time.

Q: What changes are required to the cabinet wiring?
A: The 24 V DC power wiring and functional earth connection remain unchanged. The PROFIBUS DB9 cable is removed and replaced with a Cat5e or Cat6 Ethernet cable to the nearest PROFINET switch or directly to the CP module on the PLC rack. No changes to field signal wiring, terminal blocks, or cabinet layout are required.

Q: Is the panel suitable for outdoor or high-temperature cabinet installations?
A: The 6AV6647-0AH11-3AX1 is rated for 0 °C to +50 °C ambient operating temperature. For outdoor enclosures or high-temperature environments, cabinet cooling or air conditioning must maintain the internal temperature within this range. The IP65 front rating provides protection against dust ingress and water jets on the panel face.

Q: Can this panel communicate with third-party PLCs such as Allen-Bradley or Mitsubishi?
A: The KTP400 Basic Mono PN supports Siemens S7 communication drivers via PROFINET. Native communication with third-party PLCs is not supported in WinCC Basic. For multi-vendor environments requiring OPC UA, Modbus TCP, or EtherNet/IP connectivity, a SIMATIC HMI Comfort Panel with expanded protocol support is recommended.

Q: How long does on-site commissioning take after physical installation?
A: For a like-for-like replacement where the TIA Portal project is already prepared and the PROFINET network is configured, physical installation and commissioning typically takes 1–2 hours. If project migration from WinCC flexible is required, allow an additional 4–8 hours of engineering time depending on project complexity and the number of screens and tags involved.

Warranty Assurance

Every 6AV6647-0AH11-3AX1 unit dispatched by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Our pre-shipment inspection process includes power-on functional testing, display verification, PROFINET port continuity check, key and touch input validation, and physical condition assessment. Units that do not pass inspection are not dispatched.

In the event of a warranty claim, our after-sales team responds within 1 business day. Verified defective units are replaced at no additional cost, including outbound shipping for standard warranty cases. We do not charge restocking or inspection fees for legitimate warranty returns.

For B2B procurement teams managing planned maintenance schedules or emergency breakdown replacements, TOPNLMS offers priority stock reservation and expedited dispatch. Our Xiamen warehouse maintains buffer stock of high-demand Siemens SIMATIC HMI panels to support unplanned downtime scenarios with minimal lead time.
