ABB 3BHB002916R0001 UFC721AE Replacement for AC800M

Product Overview

ABB 3BHB002916R0001 UFC721AE Replacement for AC800M: Smooth Migration & Upgrade

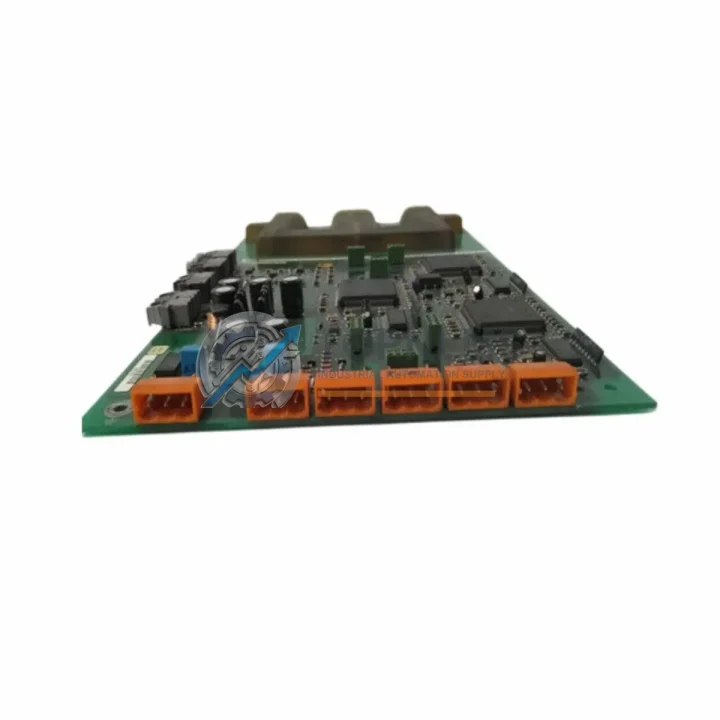

The ABB 3BHB002916R0001 UFC721AE is a high-performance CPU processor module designed for the ABB AC800M Distributed Control System (DCS) platform — part of the Symphony Plus family. As legacy AC800M installations age and original modules approach end-of-life, plant engineers and procurement teams increasingly require a reliable, drop-in replacement that preserves existing wiring infrastructure, communication architecture, and control logic without requiring a full system overhaul.

TOPNLMS supplies the 3BHB002916R0001 UFC721AE from verified inventory, fully tested prior to shipment, with a 12-month warranty. Whether you are replacing a failed unit, building a critical spare inventory, or executing a phased DCS modernization project, this module delivers the processing power and protocol compatibility your AC800M system demands.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC800M migration rarely involves replacing the CPU module in isolation. In practice, field engineers working on Symphony Plus modernization projects will simultaneously evaluate adjacent components to ensure system-wide compatibility and minimize unplanned downtime.

When upgrading from an older AC800M configuration or retiring a discontinued controller variant, the TB820V2 PROFIBUS DP communication interface module is frequently replaced alongside the CPU to maintain fieldbus integrity. Similarly, the TB840A Ethernet communication module is commonly updated to support modern OPC UA and MMS communication stacks required by SCADA and historian systems.

On the I/O side, AI810 analog input modules and DI810 digital input modules mounted in the same rack are often inspected and replaced as part of the same maintenance window, particularly when the existing units have accumulated significant operating hours. The AO810V2 analog output module is another common companion replacement, especially in process control loops where signal accuracy is critical.

For installations where the AC800M rack itself — such as the TB807 rack unit — shows signs of backplane wear or connector fatigue, replacing the rack in conjunction with the CPU module eliminates a common root cause of intermittent faults. Power supply modules, including the SD821 24 VDC power supply unit, should also be evaluated: an aging power supply delivering marginal voltage can cause erratic CPU behavior that mimics processor failure.

In control cabinet environments where space is constrained, the compact form factor of the 3BHB002916R0001 UFC721AE ensures that no panel modifications are required. Engineers migrating from older Symphony Harmony or Advant OCS platforms to AC800M will find that the UFC721AE integrates cleanly into existing cabinet layouts, with the TK212A programming cable providing a straightforward connection to ABB Control Builder M for program upload, verification, and commissioning.

For sites running hybrid architectures — where AC800M controllers communicate with third-party PLCs or remote I/O via CI854A PROFIBUS DP interface modules — the UFC721AE maintains full protocol compatibility, preserving existing fieldbus segment configurations without requiring re-parameterization of slave devices.

Retrofit Guidance FAQ

Q: Can I replace the UFC721AE without rewiring field terminals?
A: Yes. The 3BHB002916R0001 UFC721AE uses the same backplane connector and rack interface as the original module. Field wiring connected to I/O modules in the same rack is unaffected. Only the CPU module itself is swapped.

Q: Do I need to reload the control program after replacement?
A: In most cases, yes. The application program stored in the original CPU’s flash memory must be reloaded via ABB Control Builder M. If a backup of the project was maintained — which is standard practice — this process typically takes less than 30 minutes for an experienced engineer.

Q: Is the UFC721AE compatible with PROFIBUS DP fieldbus segments?
A: Yes. When paired with a TB820V2 or CI854A communication interface module, the AC800M system maintains full PROFIBUS DP master functionality. Existing slave device configurations, GSD files, and bus parameters do not require modification.

Q: What are the physical space requirements for installation?
A: The 3BHB002916R0001 UFC721AE occupies a single module slot in the standard AC800M rack. No additional panel space or cabinet modification is required. The module slides directly into the vacated slot and locks via the standard front-panel latch mechanism.

Q: Can this module be used in a redundant CPU configuration?
A: The AC800M platform supports CPU redundancy configurations. Consult your existing system architecture documentation and ABB Control Builder M project settings to confirm whether your installation uses simplex or redundant CPU topology before ordering.

Q: How do I verify firmware compatibility before installation?
A: Check the firmware version currently running on your AC800M system via Control Builder M. TOPNLMS technical support can advise on firmware baseline compatibility for the UFC721AE prior to shipment upon request.

Warranty Assurance

Every ABB 3BHB002916R0001 UFC721AE supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification process to confirm module integrity, connector condition, and basic operational status. This pre-shipment inspection reduces the risk of DOA (dead-on-arrival) incidents and provides procurement teams with documented quality assurance.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the nature of the fault and the customer’s preference. Our after-sales response target is within 24 business hours of a reported issue. Customers are encouraged to retain original packaging for warranty return shipments.

For time-critical plant environments where downtime costs are significant, TOPNLMS maintains buffer stock of high-demand AC800M components to support expedited dispatch. Standard lead time from order confirmation to shipment is 1–3 business days for in-stock items, with express international freight options available to most destinations.

Procurement teams requiring formal documentation — including test reports, packing lists, commercial invoices, or certificates of origin — can request these at the time of order. TOPNLMS supports standard B2B procurement workflows including purchase order processing and proforma invoice issuance.
