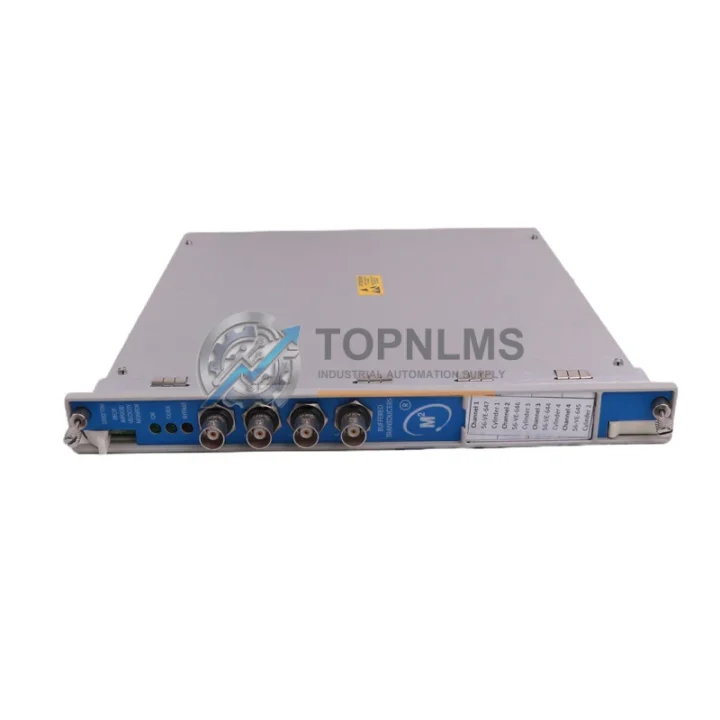

Bently Nevada 3500/70M 176449-09 Original Industrial Spare

Product Overview

Bently Nevada 3500/70M 176449-09 Original Industrial Spare: System Stability and Reliable Velocity Monitoring

In rotating machinery protection, the integrity of every monitor card in the rack is the foundation of plant uptime. The Bently Nevada 3500/70M 176449-09 is a four-channel velocity monitor module within the 3500 Series Machinery Protection System — one of the most widely deployed condition monitoring platforms in the power generation, oil and gas, petrochemical, and heavy industrial sectors. Whether you are responding to an unplanned card failure, building a critical spare inventory, or executing a scheduled preventive maintenance overhaul, sourcing a verified 3500/70M 176449-09 from bonded stock is the fastest path to restoring full system functionality without compromising your protection architecture.

The 3500/70M accepts velocity transducer inputs — typically seismic velocity sensors mounted on bearing housings, gearbox casings, or turbine pedestals — and processes them into overall vibration amplitude values for alarm and trip logic. The module operates within the standard 3500 Series 19-inch rack alongside other monitor cards, sharing the backplane power bus and the rack’s communication infrastructure. Its four-channel architecture allows a single card to cover multiple measurement points on a machine train, reducing rack slot consumption and simplifying spare parts management compared to older single-channel monitor designs.

The 176449-09 suffix identifies a specific hardware revision and configuration of the 3500/70M. When ordering a replacement, matching the full part number — including the revision suffix — ensures that the card’s firmware version, I/O connector pinout, and configuration file compatibility align with the existing rack setup. Substituting a different revision without verifying compatibility in the System 1 configuration database or the rack’s Rack Interface Module can result in configuration mismatches that prevent the card from accepting its programmed setpoints.

From a maintenance planning perspective, the 3500/70M 176449-09 is most effectively managed as part of a broader 3500 Series spare parts strategy. Facilities running a full 3500 rack — which may include a 3500/15 Power Supply Module for redundant DC power distribution, a 3500/20 Rack Interface Module for Ethernet and Modbus TCP communication to the DCS or historian, and a 3500/32 4-Channel Relay Module for alarm and trip output wiring — should treat the velocity monitor card as one element of a coordinated spare inventory. A single rack failure that takes down the entire machinery protection system is far more costly than maintaining a small buffer of critical cards.

During a planned shutdown or turnaround, maintenance teams inspecting the 3500 rack should simultaneously verify the condition of adjacent cards. The 3500/42M Proximitor/Seismic Monitor — which handles eddy-current proximity probe inputs for shaft displacement measurement — shares the same rack backplane and is subject to the same environmental stresses as the velocity monitor. Similarly, the 3500/40M Proximitor/Seismic Monitor for earlier-generation probe configurations and the 3500/50 Tachometer Module for speed and phase reference signals are common companion cards that should be inspected and, where appropriate, replaced proactively during the same maintenance window.

Wiring to the 3500/70M is straightforward: velocity transducer cables terminate at the I/O module connected to the card’s rear I/O connector on the rack backplane. In most installations, the transducer cables are routed through existing conduit from the machine to the control room or local panel, and the I/O module connector is the only field-wiring interface. Replacing the monitor card does not require any rewiring at the machine end or at the junction box — only the card itself is swapped in the rack slot. This makes the 3500/70M one of the faster field replacements in the 3500 platform, typically achievable within a single shift when a spare card is on hand.

For facilities integrating the 3500 rack into a DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or Yokogawa CENTUM VP — the velocity monitor’s alarm and trip relay outputs connect to the DCS digital input cards via the 3500/32 Relay Module, while the 4–20 mA analog outputs feed the DCS analog input channels. Neither the DCS I/O wiring nor the relay output wiring requires modification during a like-for-like card replacement, preserving all existing loop documentation and DCS configuration.

Critical Technical Specs Table

Preventive Maintenance Strategy

A robust preventive maintenance program for a 3500 Series rack goes well beyond replacing a single failed card. When scheduling a maintenance window around the 3500/70M 176449-09, experienced reliability engineers use the opportunity to audit the entire rack and associated field instrumentation.

Start with the power infrastructure: the 3500/15 Power Supply Module should be inspected for output voltage stability and fan operation. A degraded power supply is one of the most common root causes of intermittent monitor card faults that are misdiagnosed as card failures. If the power supply is approaching its recommended service interval, replacing it during the same window as the velocity monitor card eliminates a second planned outage.

Next, inspect the 3500/20 Rack Interface Module — the communication gateway between the rack and the plant network. Firmware version mismatches between the RIM and newly installed monitor cards can cause configuration upload failures. Verifying that the RIM firmware is current before installing the replacement 3500/70M prevents commissioning delays.

At the field instrument level, the velocity transducers connected to the 3500/70M should be checked for cable jacket integrity, connector corrosion, and sensitivity drift. Seismic velocity sensors — particularly those mounted in high-temperature or high-vibration zones near turbine casings or compressor bearing housings — are subject to accelerated aging. Replacing a degraded transducer at the same time as the monitor card ensures that the restored measurement chain is accurate from sensor to display.

For facilities also running proximity probe measurements on the same machine train, the 3500/42M Proximitor/Seismic Monitor and its associated 330130 Series armored extension cables and Proximitor sensors should be included in the inspection checklist. Shaft displacement and velocity measurements together provide a complete picture of rotor dynamic behavior, and maintaining both measurement chains in parallel is essential for reliable machinery protection.

Finally, the 3500/32 4-Channel Relay Module — which routes alarm and trip signals from the monitor cards to the plant safety system or DCS — should have its relay contact resistance verified and its wiring terminations inspected for looseness or corrosion. A relay module with degraded contacts can cause spurious trips or, more dangerously, fail to trip when a genuine machine fault occurs.

Strategic Replacement Solutions

The 3500/70M 176449-09 is a direct replacement for any failed or end-of-life 3500/70M card carrying the same revision suffix. Because the 3500 Series platform has been in production for several decades, many facilities are operating racks with cards that are no longer available through the original manufacturer’s standard supply chain. TOPNLMS maintains bonded stock of the 3500/70M 176449-09 and related 3500 Series modules to support both emergency breakdown replacements and planned spare parts replenishment.

For facilities considering a broader system refresh — moving from an older 3300 Series panel-based protection system to the 3500 rack architecture — the 3500/70M provides a significant upgrade in diagnostic capability, communication options, and configuration flexibility. The transition preserves existing field wiring to velocity transducers, as the sensor types and cable standards are compatible across both platforms. The primary change is at the rack and monitor card level, where the 3500 architecture introduces per-channel configuration, Modbus TCP connectivity, and integration with System 1 condition monitoring software.

Every 3500/70M 176449-09 dispatched from TOPNLMS has been functionally tested prior to shipment. Standard dispatch from our Xiamen warehouse is 3–5 business days for international orders, with DHL Express and FedEx International Priority available for urgent breakdown scenarios. Purchase orders, proforma invoices, and material certifications are provided on request.

Support FAQ

Q: How do I verify that the 176449-09 revision is compatible with my existing rack configuration?
A: Check the revision suffix on the card currently installed in your rack and compare it to the replacement unit. If you have access to the Bently Nevada Rack Configuration Software or System 1, the configuration file will specify the compatible card revision. Contact our technical team with your rack serial number and we can confirm compatibility before you order.

Q: How many spare 3500/70M cards should I stock for a critical machine train?
A: Industry best practice for critical rotating machinery is to maintain at least one spare card per monitor type per machine train, with an additional shared spare for facilities running multiple identical racks. For machines where unplanned downtime carries significant production or safety consequences, a two-card buffer is recommended.

Q: What testing is performed before dispatch?
A: Each unit undergoes functional verification including channel input response, alarm setpoint logic, relay output continuity, and communication interface check. A test report is available on request and a 12-month warranty certificate is included with every shipment.

Q: Can I install the replacement card without taking the entire rack offline?
A: The 3500 Series supports hot-swap card replacement in most configurations, provided the rack is equipped with a redundant power supply and the specific monitor slot is not in a bypass-inhibited state. Verify your rack’s hot-swap capability in the system documentation before attempting a live card swap on a running machine.
