Bently Nevada 330905-00-15-05-02-00 3300 NSv Replacement Probe

Product Overview

Bently Nevada 330905-00-15-05-02-00 3300 NSv Replacement Probe: Smooth Migration from Legacy Proximity Systems

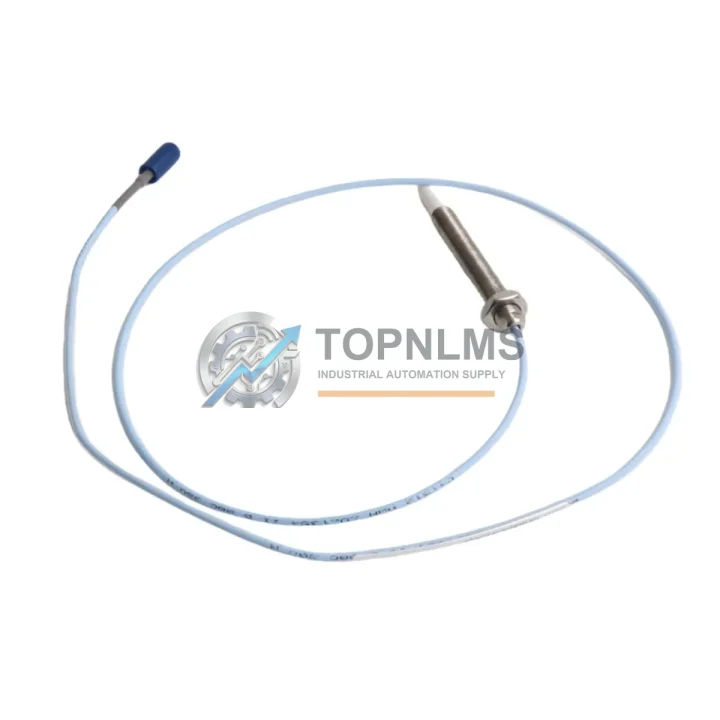

The Bently Nevada 330905-00-15-05-02-00 is a 15 mm proximity probe within the 3300 NSv series, engineered for non-contact vibration and axial position measurement in rotating machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large induction motors. As legacy 3300 NSv installations approach end-of-service life or face component obsolescence, plant engineers and reliability teams increasingly require a verified, drop-in replacement path that preserves existing wiring infrastructure, conduit routing, and system architecture without mandating a full platform overhaul.

TOPNLMS maintains ready stock of the 330905-00-15-05-02-00 and its compatible ecosystem components, enabling procurement teams to source, test, and deploy replacements with minimal lead time. Each unit ships from our Xiamen facility with full functional verification and is backed by a 12-month warranty covering manufacturing defects and performance deviations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300 NSv proximity probe replacement rarely involves the probe alone. In most retrofit and modernization projects, the 330905-00-15-05-02-00 is deployed alongside a coordinated set of system components to ensure end-to-end signal integrity and measurement accuracy from the shaft surface to the monitoring rack.

The probe interfaces directly with the Bently Nevada 330130-080-00-00 extension cable, which bridges the probe output to the proximitor/driver module. Where the original 5-metre cable run is insufficient due to machinery relocation or control cabinet repositioning, the extension cable allows the signal path to be extended without introducing impedance mismatches that would corrupt gap voltage readings. The proximitor itself — typically the Bently Nevada 330180-X1-05 proximitor/driver — conditions the raw probe signal into the −18 VDC output expected by the monitoring system. If the existing proximitor is also approaching end-of-life, replacing it simultaneously with the probe eliminates a common source of intermittent faults and baseline drift that can trigger nuisance trips during normal operation.

On the monitoring side, the 330905-00-15-05-02-00 is fully compatible with the Bently Nevada 3300 XL 8mm monitor and can also be integrated into 3500 series rack-based monitoring systems — such as the 3500/42M or 3500/40M monitor modules — using the appropriate transducer interface module. Plants migrating from standalone 3300 XL monitors to the 3500 platform benefit from retaining existing probe and cable infrastructure while upgrading only the monitor rack, significantly reducing installation downtime and re-commissioning effort. This hybrid migration approach is particularly cost-effective for facilities managing multiple machine trains simultaneously.

For installations where the control cabinet layout requires signal isolation — particularly in environments with high electromagnetic interference from variable frequency drives, large motor starters, or adjacent power distribution equipment — a signal isolator or galvanic separator inserted between the proximitor output and the monitor input preserves measurement fidelity. Similarly, where the existing terminal blocks are worn or corroded after years of service, replacing them with DIN-rail mounted screw terminal blocks compatible with the 3300 NSv wiring gauge ensures reliable field connections without re-pulling cables through conduit.

In turbine and compressor train applications, the 330905-00-15-05-02-00 is frequently deployed in sets covering radial X/Y vibration and axial position measurement, alongside the Bently Nevada 330104-00-06-10-02-00 8mm probe for shaft eccentricity monitoring and a dedicated Keyphasor probe for phase reference. Coordinating the procurement of the full probe set from a single verified supplier reduces the risk of mixed-revision hardware and simplifies system-level calibration during the maintenance window. Where the legacy system includes a Bently Nevada 1900/65A general-purpose equipment monitor, the 330905-00-15-05-02-00 can serve as a direct field replacement probe provided the monitor’s input sensitivity is configured for the 3300 NSv output range — no firmware changes are required on the monitor side for a like-for-like probe swap.

Retrofit Guidance FAQ

Q: Can I replace the 330905-00-15-05-02-00 without rewiring the junction box?
A: Yes. The 330905-00-15-05-02-00 uses the same coaxial connector and cable diameter as previous 3300 NSv probe revisions. The existing conduit, junction box entries, and terminal connections are fully reusable. Only the probe body and integrated cable assembly are replaced.

Q: Is the output signal compatible with my existing 3300 XL monitor?
A: Yes. The probe outputs the standard 3300 NSv −18 VDC signal, which is natively accepted by all 3300 XL series monitors. No sensitivity adjustment or recalibration of the monitor is required after a direct probe swap.

Q: Can this probe be used with a Bently Nevada 3500 series monitoring rack?
A: Yes, with the appropriate 3500 series transducer interface module. The 3500/42M or 3500/40M monitor modules accept 3300 NSv probe inputs when configured correctly. This is a common migration path for plants upgrading from standalone 3300 XL monitors to the 3500 platform while retaining field-installed probe infrastructure.

Q: What is the gap voltage setting for initial commissioning?
A: The standard gap voltage for a 15 mm 3300 NSv probe is approximately −10.0 VDC at the nominal 1.0 mm air gap. Refer to the Bently Nevada 3300 NSv installation manual for the full gap-versus-voltage curve. TOPNLMS can provide technical documentation upon request.

Q: Does the physical installation space need to be modified?
A: No. The 330905-00-15-05-02-00 retains the M14 × 1.5 mounting thread and identical probe body dimensions. Existing probe holders, armored conduit, and bracket assemblies are fully reusable without machining or modification.

Q: What if my existing extension cable is a different length?
A: The 330905-00-15-05-02-00 is supplied with a 5-metre integral cable. If your system uses a different total cable length (probe cable + extension cable), ensure the combined length matches the proximitor’s specified input cable length to maintain calibration accuracy. TOPNLMS can advise on compatible extension cable part numbers for non-standard runs.

Q: Is programming or configuration required after replacement?
A: No software or PLC programming changes are required for a direct probe replacement. The probe is a passive analog sensor; all signal conditioning is handled by the proximitor/driver module. Monitor alarm and danger setpoints remain unchanged after a like-for-like swap.

Q: How do I handle a mixed-revision probe set on the same machine train?
A: Mixed revisions within the 3300 NSv family are generally acceptable provided all probes share the same nominal sensitivity (200 mV/mil or 7.87 V/mm). TOPNLMS recommends replacing all probes on a given machine train simultaneously during a planned outage to eliminate revision-related calibration discrepancies and simplify future maintenance records.

Warranty Assurance

Every Bently Nevada 330905-00-15-05-02-00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each probe undergoes functional verification including output signal check, cable continuity test, and connector integrity inspection. Units that do not meet specification are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgement and 72 hours for resolution proposal. Warranty claims are processed via email at [email protected] with proof of purchase and a description of the fault.

For time-critical plant shutdowns or unplanned outages, TOPNLMS maintains buffer stock of high-demand 3300 NSv components to support expedited dispatch. Customers with standing procurement agreements can request priority allocation to ensure availability during planned maintenance windows. All units are shipped with a test report and packing list; customs documentation for international shipments is prepared upon request.

TOPNLMS is an independent supplier of industrial automation and control system components. We are not an authorized distributor of Bently Nevada / Baker Hughes. All brand names and part numbers are referenced for compatibility identification purposes only.
