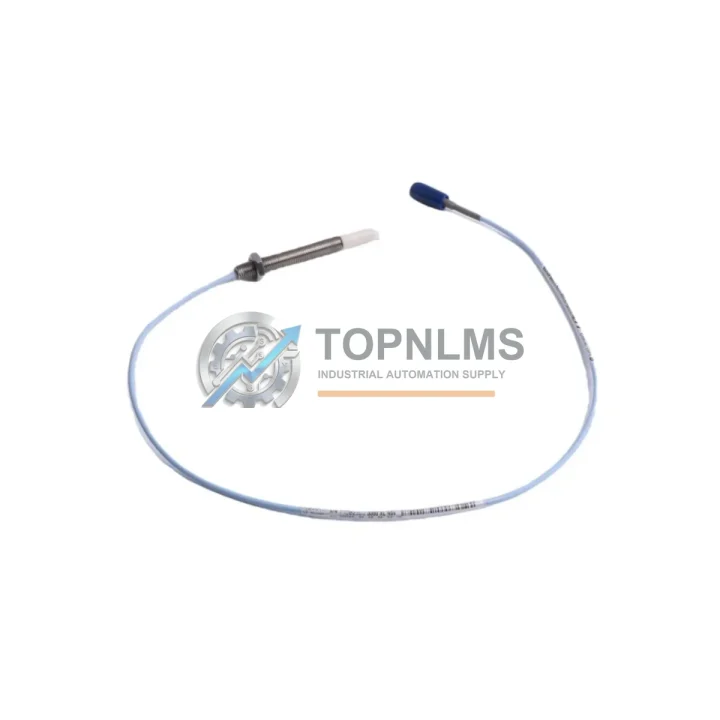

Bently Nevada 330903-00-22-10-02-00 Proximity Probe 3300 XL

Product Overview

Bently Nevada 330903-00-22-10-02-00 Proximity Probe 3300 XL: Industrial Resilience for Harsh Environments

The Bently Nevada 330903-00-22-10-02-00 is a high-precision eddy current proximity probe engineered as part of the renowned 3300 XL Series — one of the most trusted continuous vibration and position monitoring platforms deployed across critical industrial infrastructure worldwide. Designed to operate reliably in the most demanding environments, this probe delivers accurate, non-contact shaft displacement and vibration measurements even under conditions of extreme temperature, high humidity, heavy particulate contamination, mechanical shock, and intense electromagnetic interference.

In rotating machinery protection systems, measurement accuracy is not a preference — it is a safety imperative. The 330903-00-22-10-02-00 is built to that standard. Its ruggedized stainless steel housing, hermetically sealed sensing tip, and chemically resistant cable jacket allow it to maintain calibrated output in environments where standard instrumentation would fail. Whether installed in a turbine bearing housing, a compressor train, a pump pedestal, or a gearbox monitoring point, this probe delivers the signal integrity that protection systems depend on.

The 3300 XL proximity probe system operates on the eddy current principle: a high-frequency oscillating magnetic field is generated at the probe tip, and as a conductive target surface (typically a shaft or thrust collar) approaches, eddy currents are induced, causing a measurable change in the probe’s impedance. This change is converted by the companion Bently Nevada 3300 XL 8mm Extension Cable and 3300 XL Proximitor® Sensor (such as the 330180-X1-05 or 330130-040-00-00) into a DC voltage output proportional to the gap distance — providing real-time shaft position, radial vibration, and axial thrust data to the monitoring system.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330903-00-22-10-02-00 proximity probe does not operate in isolation — it is the sensing front-end of a complete machinery protection architecture. In a typical turbomachinery protection loop, this probe pairs with the Bently Nevada 3300 XL Proximitor® Sensor (e.g., 330180-51-05), which conditions the raw probe signal into a calibrated DC voltage output. That output feeds directly into a Bently Nevada 3500 Series Machinery Protection System rack — a modular, safety-rated monitoring platform that processes vibration, position, speed, and temperature data simultaneously across multiple measurement channels.

Within the 3500 rack, modules such as the 3500/42M Proximitor®/Seismic Monitor and the 3500/22M Transient Data Interface work in concert to provide both steady-state protection and transient event capture during machine startups and coastdowns. For installations requiring SIL-rated safety integrity, the system integrates with Bently Nevada 3500/33 16-Channel Relay Module outputs, which drive trip logic to emergency shutdown systems or DCS safety layers.

In control cabinet environments, the probe signal chain is often routed through Bently Nevada 3500/20 Rack Interface Module for Modbus or Ethernet/IP communication to a plant DCS or SCADA platform. Complementary instrumentation such as Bently Nevada 330500 Series Velocity Seismic Sensors and 330400 Series Accelerometers are frequently co-installed on the same machine train to provide a multi-parameter vibration signature — enabling predictive maintenance decisions before a bearing failure or rotor imbalance event escalates to an unplanned shutdown.

For installations in hazardous classified areas (Zone 1 / Zone 2 or Class I Division 1), the 330903-00-22-10-02-00 is deployed with appropriate Bently Nevada intrinsically safe barriers or Zener barriers to maintain ATEX/IECEx compliance, ensuring that the probe’s field wiring does not introduce ignition risk into flammable atmospheres — a critical requirement in upstream oil and gas, petrochemical, and LNG processing facilities.

Application in Critical Infrastructure

The Bently Nevada 330903-00-22-10-02-00 is a proven component in the most demanding sectors of global industrial infrastructure. In oil and gas upstream and midstream operations, it monitors the shaft displacement of gas compressors, pipeline booster pumps, and wellhead injection systems — where an undetected bearing failure can trigger a production shutdown costing hundreds of thousands of dollars per hour. In LNG liquefaction trains and refinery process units, it provides the continuous vibration baseline that allows operators to trend bearing wear and schedule maintenance during planned turnarounds rather than emergency outages.

In power generation — including coal-fired, gas turbine, combined-cycle, and nuclear auxiliary systems — this proximity probe monitors steam turbine journal bearings and generator rotor position, feeding trip-critical data to the turbine control and protection system. In mining and mineral processing, it is installed on large SAG mill drives, crusher pinion shafts, and slurry pump trains operating in high-dust, high-vibration environments where IP67 sealing and stainless steel construction are non-negotiable. In metallurgical and steel plant applications, it withstands the radiant heat, scale contamination, and electromagnetic noise generated by induction furnaces and rolling mill drives.

Water and wastewater treatment facilities rely on this probe to monitor large vertical turbine pumps and blower trains in humid, chemically aggressive environments. Across all these sectors, the 330903-00-22-10-02-00 delivers the measurement stability and long service life that justifies its position as a preferred spare part in plant maintenance inventories worldwide.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide on the Bently Nevada 330903-00-22-10-02-00?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional verification including output linearity check and cable continuity test before dispatch. If a unit fails within the warranty period under normal operating conditions, we provide replacement or full refund support.

Q2: How is compatibility with my existing 3300 XL system verified?
The 330903-00-22-10-02-00 is a standard 8 mm, 2.2 m cable, 10-32 UNF connector probe fully compatible with all Bently Nevada 3300 XL Proximitor® Sensors and extension cables. It is a direct form-fit-function replacement for any 3300 XL 8 mm probe of equivalent cable length. Our technical team can cross-reference your existing system configuration — including Proximitor model and gap voltage calibration — to confirm compatibility before shipment.

Q3: What is the lead time and shipping arrangement for urgent spare part requirements?
TOPNLMS maintains in-stock inventory of high-demand Bently Nevada 3300 XL series components to support emergency maintenance scenarios. Standard orders ship within 1–3 business days from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide options available. For critical plant shutdowns requiring expedited delivery, contact us directly at [email protected] or +86 18359293191 for same-day dispatch arrangements.

Q4: Can TOPNLMS support long-term supply continuity for this part number?
Yes. TOPNLMS specializes in industrial automation spare parts supply for legacy and current-production Bently Nevada, Siemens, ABB, Honeywell, and Emerson platforms. We maintain ongoing sourcing relationships to support multi-year supply agreements, annual blanket orders, and emergency replenishment programs. For OEM-discontinued or allocation-constrained part numbers, we provide verified equivalent sourcing with full traceability documentation.
