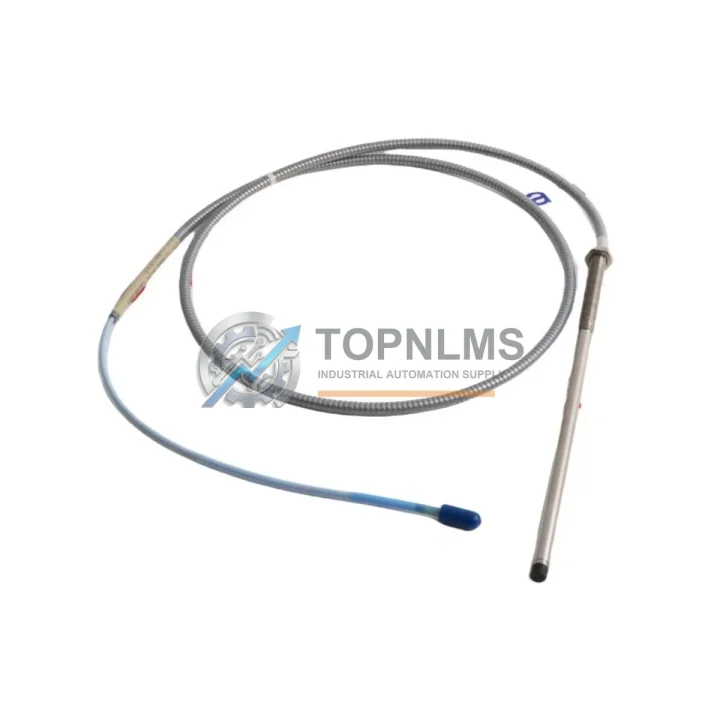

Bently Nevada 330194-00-18-10-00 Ruggedized Proximity Probe

Product Overview

Bently Nevada 330194-00-18-10-00 Ruggedized Proximity Probe: Industrial Resilience for Harsh Environments

The Bently Nevada 330194-00-18-10-00 is an 18-inch proximity probe engineered as part of the industry-proven 3300 XL ETR (Extended Temperature Range) series. Designed to deliver continuous, non-contact vibration and position measurement in the most demanding industrial environments, this probe is a cornerstone component in rotating machinery protection systems across oil & gas, power generation, mining, metallurgy, and heavy process industries.

Built to operate reliably where conventional sensors fail, the 330194-00-18-10-00 withstands extreme temperature swings, high-humidity atmospheres, pervasive dust and particulate contamination, mechanical shock, and intense electromagnetic interference (EMI). Its ruggedized construction and extended temperature rating make it the preferred choice for engineers who cannot afford unplanned downtime on critical rotating assets such as compressors, turbines, pumps, and gearboxes.

When integrated with the Bently Nevada 3300 XL proximitor/seismic transducer system — including the 330180-X1-05 proximitor sensor and 330130-045-00-00 extension cable — the 330194-00-18-10-00 forms a complete, calibrated measurement chain that feeds real-time shaft displacement data to machinery protection systems such as the Bently Nevada 3500 Series Machinery Protection System. This data is critical for triggering alarms and shutdowns before catastrophic bearing or seal failures occur.

In control architectures where a DCS (Distributed Control System) or PLC-based safety layer governs plant-wide protection logic, the analog output from this probe integrates seamlessly with 4–20 mA input modules, I/O expansion cards, and safety instrumented system (SIS) modules. The probe’s signal conditioning is compatible with standard industrial communication backbones, enabling data aggregation through FOUNDATION Fieldbus or Modbus RTU protocol gateways without signal degradation.

For facilities running continuous production lines — petrochemical refineries, LNG compression trains, steel rolling mills, or water treatment pump stations — the 330194-00-18-10-00 provides the early-warning vibration data that prevents unscheduled shutdowns. When paired with Bently Nevada 3300 XL barrier assemblies and intrinsically safe zener barriers for hazardous area (Zone 1/Zone 2) installations, the system meets the rigorous requirements of IEC 60079 and ATEX-classified environments.

Procurement engineers and reliability teams value this probe not only for its measurement accuracy but also for its direct drop-in compatibility with existing 3300 XL installations. No recalibration of the proximitor or adjustment of the Bently Nevada 3500/40M proximitor I/O module is required when replacing a worn or damaged probe — a critical advantage during planned turnarounds or emergency maintenance windows. The probe’s armored cable jacket and stainless-steel tip resist chemical attack from lubricating oils, hydraulic fluids, and process gases commonly found in rotating equipment environments.

At TOPNLMS, every 330194-00-18-10-00 unit is sourced through verified supply channels, individually inspected, and tested for electrical continuity and gap voltage output before dispatch. We maintain ready stock to support urgent replacement requirements, with same-day or next-business-day shipping available for confirmed orders. Each unit ships with full documentation and is covered by our 12-month quality warranty.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330194-00-18-10-00 proximity probe does not operate in isolation — it is the sensing front-end of a layered machinery protection architecture. In a typical turbomachinery protection panel, the probe connects via the 330130-045-00-00 extension cable to the 330180-X1-05 proximitor sensor, which conditions the raw eddy-current signal into a calibrated voltage output. This output feeds directly into the Bently Nevada 3500/40M Proximitor I/O Module, where the 3500 Series rack processes shaft displacement against alarm and danger setpoints.

For plants requiring redundant protection, dual-probe configurations are common: a second 330194-00-18-10-00 or a compatible 330104-00-18-10-02 probe is mounted 90° apart on the same bearing journal, providing X-Y radial vibration vectors. The 3500 rack’s 3500/42M Proximitor I/O Module handles dual-channel inputs natively, enabling full API 670-compliant shaft centerline and orbit plot analysis.

In hazardous classified areas, the probe system is completed with Bently Nevada 3300 XL intrinsic safety barriers or third-party MTL or Pepperl+Fuchs zener barrier modules mounted in the safe-area control cabinet. These barriers limit energy in the field circuit to levels safe for Zone 1 gas atmospheres, ensuring compliance without compromising measurement fidelity.

At the control system level, the 3500 rack communicates alarm and trip status to the plant DCS or PLC safety layer via hardwired relay contacts or Modbus TCP/RTU communication modules. In Siemens or Rockwell Automation PLC architectures, the relay outputs interface with digital input (DI) safety modules and F-DI cards to trigger emergency shutdown sequences. The seamless integration between the Bently Nevada protection layer and the plant’s Safety Instrumented System (SIS) — often built on platforms such as the Triconex Tricon or Hima HIMatrix — ensures SIL 2 or SIL 3 loop integrity is maintained.

Power supply reliability for the proximitor and 3500 rack is typically ensured by redundant 24 VDC industrial power supplies with active current sharing, protecting the measurement chain from power interruptions. Surge protection devices (SPDs) installed at the cabinet entry point guard against transient overvoltages from lightning or switching events on long field cable runs.

Application in Critical Infrastructure

Oil & Gas: On offshore platforms and onshore gas compression stations, this probe monitors the radial vibration of high-speed centrifugal compressors and gas turbine-driven generators. The ETR rating ensures stable operation in ambient temperatures that swing from arctic cold during winter shutdowns to extreme heat near gas turbine exhaust zones. In these environments, undetected bearing wear or rotor imbalance can escalate to catastrophic failure within seconds — the 330194-00-18-10-00 provides the continuous, millisecond-resolution data that prevents such events.

Power Generation: Steam turbine-generators in coal, gas, and nuclear power plants rely on API 670-compliant proximity probe systems to protect journal bearings operating at 3,000–3,600 RPM. The probe’s high-temperature tolerance and resistance to steam condensate and turbine oil make it a reliable long-term installation in turbine pedestals and bearing housings.

Mining & Metallurgy: In ore processing plants and steel mills, large induced-draft fans, ball mill drives, and rolling mill gearboxes generate intense vibration and airborne particulate. The armored construction of the 330194-00-18-10-00 resists abrasive dust ingress and mechanical shock, maintaining accurate gap measurement even in environments where conventional sensors fail within months.

Water & Wastewater Treatment: High-capacity pump stations and blower systems in municipal water treatment facilities benefit from continuous vibration monitoring to schedule predictive maintenance, avoiding emergency pump failures that could disrupt water supply to large populations.

Chemical & Petrochemical: Reactor feed compressors, ethylene cracker turbines, and refinery charge pumps operate in chemically aggressive atmospheres. The probe’s coaxial cable shielding and chemical-resistant jacket maintain signal integrity in the presence of hydrocarbon vapors, acids, and caustic wash environments.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 330194-00-18-10-00?
Every unit sold by TOPNLMS is covered by a 12-month quality warranty from the date of shipment. If the unit exhibits any manufacturing defect or fails to meet Bently Nevada 3300 XL system calibration specifications under normal operating conditions, we will provide a replacement or full refund. Our warranty process is straightforward — contact us directly at [email protected] with your order reference and fault description.

Q2: How is each unit tested before shipment?
All 330194-00-18-10-00 probes undergo pre-shipment inspection covering physical integrity (tip, cable jacket, connector), electrical continuity of the coaxial cable, and gap voltage output verification against Bently Nevada 3300 XL calibration curves. Units that do not pass inspection are quarantined and not dispatched. A test report is available upon request for critical plant applications.

Q3: Is this probe compatible with my existing 3300 XL proximitor and extension cable?
Yes. The 330194-00-18-10-00 is a direct replacement for any 18-inch, 8 mm tip, 3300 XL ETR series probe. It is fully compatible with the 330180-X1-05 proximitor sensor and all standard 3300 XL extension cables (330130 series). No recalibration of the proximitor or adjustment of the 3500 rack I/O module is required for a like-for-like replacement. If you are replacing a probe from a different sub-series, contact our technical team to confirm compatibility before ordering.

Q4: Can you support long-term or repeat supply for ongoing maintenance programs?
Absolutely. TOPNLMS maintains standing inventory of high-demand Bently Nevada 3300 XL series components to support planned turnaround schedules, annual maintenance contracts, and emergency replacement requirements. We can provide blanket purchase order arrangements and reserved stock allocation for customers with recurring demand. Contact us at [email protected] or +86 18359293191 to discuss your supply program requirements.
