Bently Nevada 330130-075-00-05 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330130-075-00-05 Original Industrial Spare 3300 XL Compatible: System Stability Through Verified Spare Parts

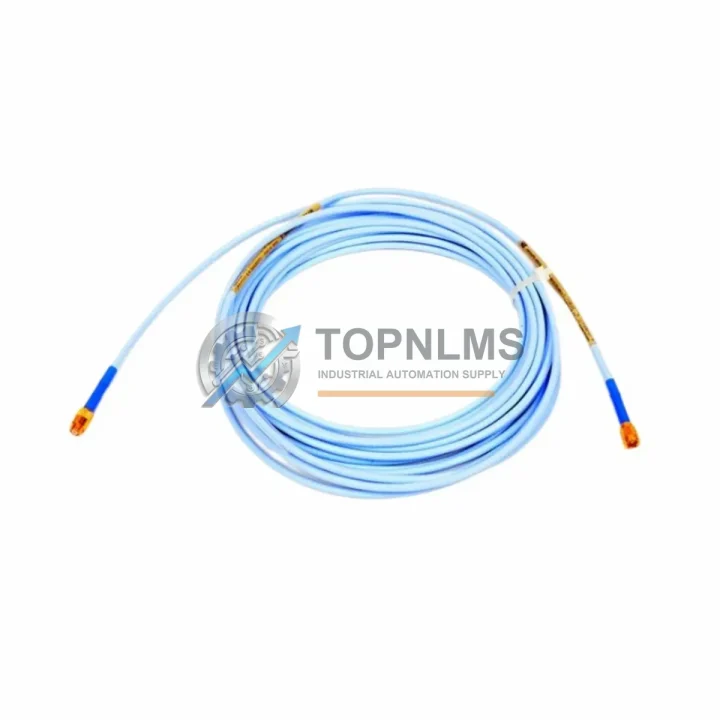

In rotating machinery protection environments, the integrity of every signal path between a proximity probe and its monitoring system is mission-critical. The Bently Nevada 330130-075-00-05 is a factory-original 7.5-metre extension cable engineered specifically for the 3300 XL Proximity System — one of the most widely deployed vibration and position monitoring platforms in turbomachinery, compressor trains, and critical rotating equipment worldwide. Maintaining a verified stock of this cable is not merely a convenience; it is a cornerstone of any credible predictive maintenance and rapid-response spare parts strategy.

When a proximity measurement loop fails during operation, the consequences extend far beyond a single sensor reading. Vibration data gaps can trigger protective shutdowns, mask developing faults, or — in worst-case scenarios — allow machinery damage to progress undetected. The 330130-075-00-05 extension cable is the precision link between the Bently Nevada 3300 XL 8mm Proximity Probe (330101 series) and the 3300 XL Proximitor Sensor (190501 or 200101 series). Replacing it with a non-OEM or mismatched cable introduces impedance errors, calibration drift, and potential false trips — risks no maintenance team can afford on a critical asset.

Every unit supplied by TOPNLMS is sourced from verified channels, individually inspected, and dispatched with full traceability documentation. Our 12-month warranty covers manufacturing defects and ensures your procurement team has the confidence to plan long-cycle maintenance windows without last-minute sourcing emergencies.

Critical Technical Specs

Preventive Maintenance Strategy

A proximity measurement loop is only as reliable as its weakest component. When scheduling a planned outage or responding to a vibration alarm, experienced maintenance engineers know that replacing the 330130-075-00-05 extension cable in isolation is rarely sufficient. The cable operates as part of a tightly coupled three-component system, and degradation in any element compromises the entire loop’s accuracy.

During a compressor or turbine overhaul, it is standard practice to simultaneously inspect and — where service hours dictate — replace the Bently Nevada 330101-00-08-10-02-00 proximity probe mounted at the bearing housing. Probe tip wear, contamination, or physical damage from shaft contact are common findings after extended run cycles. Alongside the probe, the Bently Nevada 190501-01-L proximitor sensor (or equivalent 200101 series) should be bench-tested for output linearity; a proximitor that has drifted outside its calibration window will produce erroneous gap readings even with a new cable installed.

At the rack level, the Bently Nevada 3300/16-13-01 16-channel vibration monitor and its associated 3300/20-02-01 power supply module should be inspected for capacitor aging, terminal corrosion, and firmware currency. Loose or oxidised terminal connections on the 3300 XL I/O module are a frequent source of intermittent channel faults that are often misdiagnosed as cable failures. Keeping a spare I/O module in your critical-spares cabinet eliminates this diagnostic ambiguity and dramatically reduces mean-time-to-repair during unplanned shutdowns.

For installations where the extension cable routes through conduit or cable trays exposed to high-vibration environments, periodic inspection of the armoured cable jacket and connector backshells is recommended every 12–18 months. Micro-fractures in the outer jacket — particularly near fixed conduit entry points — can allow moisture ingress that degrades the cable’s characteristic impedance over time. This failure mode manifests as slow calibration drift rather than a hard fault, making it easy to overlook during routine checks. Pairing the cable inspection with a review of the Bently Nevada 3300/05-01-02-00-00-00 tachometer input module and any 3300 XL keyphasor signal conditioner in the same rack ensures the full signal chain is evaluated in a single cabinet visit.

These modules share the same backplane power distribution and are subject to identical thermal cycling stresses. A comprehensive cabinet inspection that addresses the complete signal chain — from probe tip through extension cable, proximitor, field wiring, terminal block, and rack module — is far more cost-effective than repeated single-component replacements driven by recurring alarms. For sites managing multiple machine trains, a structured spare-parts inventory that includes at least one 330130-075-00-05 cable per critical machine, paired with a matched 330101 series probe and 190501 proximitor, provides the fastest possible MTTR when an unplanned shutdown occurs.

Procurement teams supporting legacy 3300 XL installations alongside newer platforms should also consider holding a Bently Nevada 3500/22M transient data interface module for cross-platform coverage during system migration periods, ensuring continuity of vibration monitoring data across both generations without gaps in protection.

Strategic Replacement Solutions

The 330130-075-00-05 is a direct OEM replacement for any 7.5m extension cable position in a Bently Nevada 3300 XL 8mm proximity loop. It supersedes earlier Bently Nevada cable part numbers used in pre-XL 3300 series installations where the connector and impedance specifications are compatible. No recalibration of the proximitor or monitor is required when replacing a like-for-like OEM cable, which means maintenance teams can execute the swap during a short planned window — or even a controlled online replacement on non-trip-critical channels — without scheduling a full system recalibration outage.

For ageing plant where the original 3300 XL system is approaching end-of-support, stocking verified OEM spare cables is a proven strategy to extend system life by 5–10 years without the capital expenditure of a full platform migration to the Bently Nevada 3500 series. This approach preserves existing probe mounting hardware, conduit runs, and operator familiarity while deferring migration costs to a planned capital cycle. TOPNLMS maintains stock of both current and legacy Bently Nevada proximity system components to support exactly this kind of long-horizon maintenance planning.

All units are tested for continuity, insulation resistance, and connector integrity prior to dispatch. Shipment is accompanied by a test report and packing list. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock items, with express freight options available for critical industrial emergencies.

Support FAQ

Q1: How do I verify that 330130-075-00-05 is the correct cable for my installation?
Confirm the probe model (should be an 8mm Bently Nevada 330101 or 330103 series), the proximitor model (190501 or 200101 series), and the required cable length (7.5m). The part number suffix “-075” denotes 7.5m; “-050” denotes 5.0m. If your installation uses a different length, contact us — we stock the full 3300 XL extension cable range.

Q2: Will installing this cable require recalibration of the proximity system?
No — provided you are replacing a 330130-075-00-05 with an identical OEM part in the same loop. The 3300 XL system calibration is set for the combined probe + extension cable + proximitor system. A like-for-like OEM cable replacement preserves the original calibration. Recalibration is only required if you change cable length, probe model, or proximitor type.

Q3: What is included in the 12-month warranty?
The warranty covers manufacturing defects, connector integrity failures, and signal-path anomalies attributable to the cable under normal operating conditions. Each unit is inspected and tested before dispatch. Warranty claims are processed within 5 business days of receipt of the returned item, with replacement dispatch on the next available shipping day.

Q4: Can this cable be used in hazardous area (Ex) installations?
The standard 330130-075-00-05 is rated for general industrial environments. For installations in classified hazardous areas (ATEX Zone 1/2 or NEC Class I Division 1/2), please confirm the area classification with our technical team before ordering. Bently Nevada offers specific Ex-rated variants for hazardous area proximity loops, and we can advise on the correct part number for your zone classification.
