Bently Nevada 330130-035-00-00 Replacement for 3300 XL

Product Overview

Bently Nevada 330130-035-00-00 Replacement & Upgrade Solution for 3300 XL Series

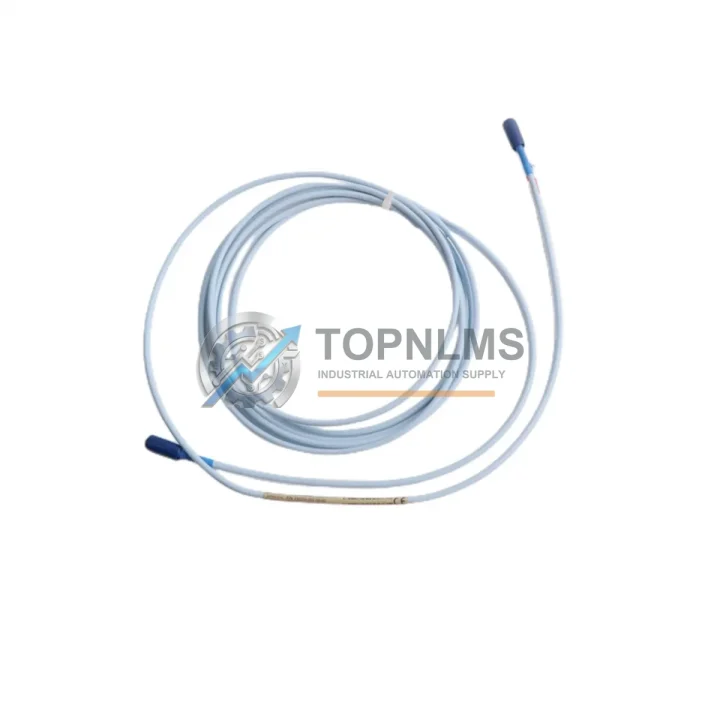

The Bently Nevada 330130-035-00-00 is an 8 mm proximity transducer forming part of the industry-standard 3300 XL Series continuous machinery monitoring system. Engineered for non-contact measurement of radial shaft vibration, axial position, and differential expansion on rotating equipment including steam turbines, gas compressors, centrifugal pumps, and large induction motors, this transducer is a critical front-end sensing element in any API 670-compliant protection system.

When the original 330130-035-00-00 reaches end-of-life, becomes physically damaged, or is flagged during a scheduled outage inspection, a like-for-like replacement must be qualified and installed with zero compromise to measurement accuracy. TOPNLMS supplies factory-tested, fully compatible 330130-035-00-00 units from verified inventory, ready for immediate dispatch from Xiamen with full documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 330130-035-00-00 replacement rarely involves the transducer alone. During a planned outage or emergency swap, maintenance teams typically audit the entire measurement chain. The 3300 XL Extension Cable 330130-080-00-00 is the first component to inspect: cable jacket cracking or connector corrosion at the junction box is a common root cause of false high-vibration trips that are misdiagnosed as transducer failure. Replacing the extension cable alongside the probe eliminates this ambiguity and restores full measurement chain integrity.

The 3300 XL 8 mm Driver 330180-X1-05 (also referred to as the proximitor sensor) converts the raw eddy-current signal into the −24 VDC output consumed by the monitor rack. If the driver has been exposed to moisture ingress or supply voltage transients, its internal oscillator circuit may drift, producing a bias voltage outside the monitor’s OK limits even after a new probe is installed. Replacing the driver as a matched set with the 330130-035-00-00 restores the full measurement chain to factory specification.

On the rack side, the Bently Nevada 3500/40M Proximitor I/O Module and the 3500/42M Proximitor Monitor are the most common channel cards associated with 8 mm XL transducers in turbine protection panels. If the channel card shows a fault LED that persists after transducer replacement, the I/O module’s barrier circuit or the monitor’s A/D converter may require attention. TOPNLMS can source both the 3500/40M and 3500/42M as part of a complete channel restoration kit.

For plants migrating from the older Bently Nevada 7200 Series proximity system to the 3300 XL platform, the physical probe bore diameter is identical (8 mm), but the driver output voltage and sensitivity differ. A full driver swap to the 330180 Series Proximitor is required before connecting to a 3500 rack monitor. This migration eliminates the need for custom signal conditioning and brings the measurement loop into full API 670 compliance.

Where control cabinet space is constrained — a common challenge in legacy turbine control rooms built around Woodward 505 governors or early GE Mark V / Mark VI turbine control panels — the compact DIN-rail-mountable 3300 XL driver enclosure fits within standard 19-inch relay racks without panel modification. Junction boxes such as the Bently Nevada 02504286 field wiring termination assembly provide a clean interface between the field cable and the rack, preserving cable segregation and EMC integrity inside the control cabinet.

For facilities running Emerson Ovation DCS or Honeywell Experion PKS as the plant-level control system, the 3500 rack communicates via Modbus RTU or Ethernet/IP through the 3500/92 Communication Gateway. Replacing the 330130-035-00-00 transducer does not require any DCS tag reconfiguration, as the gateway maps channel data by rack slot address, not by transducer serial number — meaning zero PLC or DCS programming changes are needed for a like-for-like transducer swap.

Retrofit Guidance FAQ

Q: Do I need to recalibrate the monitor after replacing the 330130-035-00-00?
A: No. The 3300 XL system uses a fixed sensitivity of −200 mV/mil. Provided the replacement transducer is a genuine 330130-035-00-00 and the installation gap is set to 2.0 mm ±0.1 mm per the OEM procedure, the monitor channel requires no sensitivity or zero adjustment. Verify the OK relay status and bias voltage (−10.0 VDC ±0.5 V at nominal gap) after installation.

Q: Is the wiring at the junction box compatible with the replacement unit?
A: Yes. The 330130-035-00-00 uses the same 3-conductor shielded cable and MIL-spec connector as all 3300 XL 8 mm probes. Existing field wiring, conduit runs, and junction box terminations are fully reusable. No rewiring is required.

Q: Can this transducer replace a 330130-035-00-CN or other regional suffix variant?
A: The -00-00 suffix denotes the standard international version. Regional suffix variants (e.g., -CN, -05) may have minor connector or cable jacket differences. Contact TOPNLMS to confirm cross-reference compatibility before ordering if your existing unit carries a non-standard suffix.

Q: What is the lead time and how is the unit shipped?
A: In-stock units ship within 1–2 business days from Xiamen via DHL Express or FedEx International Priority. Typical transit time to Southeast Asia is 3–5 days; Europe and the Americas 5–7 days. Each unit ships with a test report and packing list. Expedited same-day dispatch is available for emergency outage situations — contact [email protected] with your outage window.

Q: How do I verify the transducer is functioning correctly after installation?
A: With the machine at rest and the shaft stationary, measure the DC bias voltage at the driver output. It should read between −9.5 VDC and −10.5 VDC at a 2.0 mm gap. Confirm the monitor channel OK relay is energized and no alert or danger setpoints are active. Rotate the shaft slowly by hand and verify the output voltage changes proportionally with gap variation before returning the machine to service.

Q: Does replacing the transducer affect the communication protocol between the 3500 rack and the DCS?
A: No. The 3500/92 Communication Gateway maps vibration data by rack slot and channel number. A transducer swap at the field level does not alter the Modbus register map or Ethernet/IP tag structure visible to the Emerson Ovation or Honeywell Experion host system. No DCS engineering changes are required.

Warranty Assurance

Every Bently Nevada 330130-035-00-00 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection including visual examination, connector integrity check, and DC bias voltage verification at a calibrated test gap. Units that do not meet OEM specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement-first policy: a substitute unit is dispatched within 2 business days of claim confirmation, eliminating extended downtime while the failed unit is returned for analysis. Return shipping labels are provided at no cost for warranty returns within the 12-month coverage period.

Our after-sales team is reachable at [email protected] and +86 18359293191 for technical pre-sales questions, cross-reference verification, emergency procurement, and post-installation support. We maintain stock buffers specifically for critical rotating machinery components to support unplanned outage scenarios.

Purchasing through TOPNLMS provides full traceability documentation including supplier certificates, outgoing test reports, and commercial invoices suitable for plant maintenance records and ISO 55001 asset management compliance.
