Bently Nevada 330106-00-04-10-02-00 Original Industrial Spare 3300 XL

Product Overview

Bently Nevada 330106-00-04-10-02-00 Original Industrial Spare 3300 XL: System Stability and Industrial Spare Maintenance Value

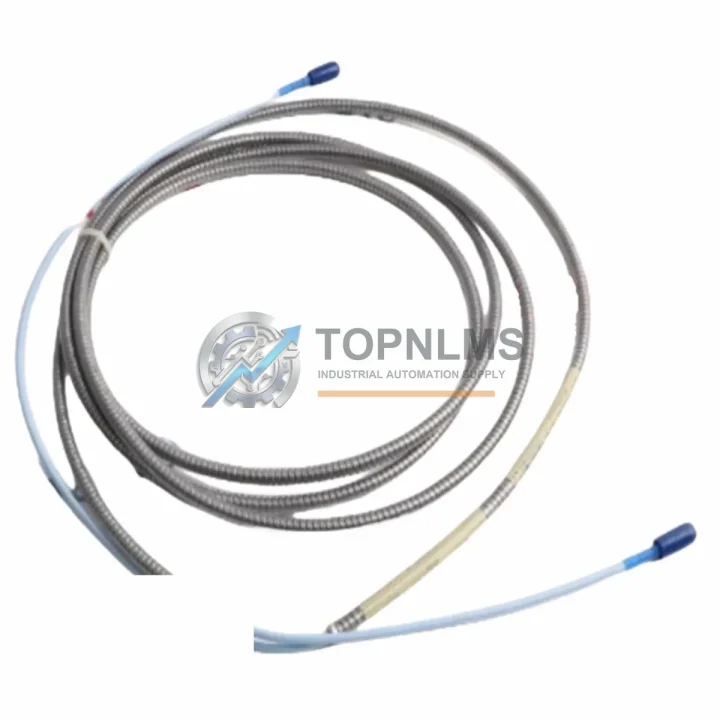

The Bently Nevada 330106-00-04-10-02-00 is an original eddy-current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. Designed for 8mm transducer systems, this probe delivers the measurement precision and long-term reliability that industrial maintenance teams depend on to keep turbines, compressors, pumps, and motors running without unplanned downtime.

In high-stakes industrial environments — petrochemical plants, power generation facilities, steel mills, and offshore platforms — the integrity of your vibration monitoring system is non-negotiable. A failed or degraded proximity probe can mask developing faults in rotating equipment, leading to catastrophic failures and costly production stoppages. Stocking a verified original replacement such as the 330106-00-04-10-02-00 is a foundational element of any responsible spare parts strategy.

This probe is fully compatible with the Bently Nevada 3300 XL monitoring system architecture, including standard 3300 XL 8mm extension cables, 3300 XL proximitor sensors, and the associated rack-mounted signal conditioning modules. Its plug-and-play compatibility with existing 3300 XL installations means field replacement can be completed quickly during a scheduled outage or emergency shutdown, minimising mean time to repair (MTTR) and restoring system integrity without recalibration delays.

Critical Technical Specs

Preventive Maintenance Strategy

A proximity probe replacement should never be treated as an isolated event. When a 330106-00-04-10-02-00 probe is flagged for replacement during a scheduled outage or condition-monitoring review, experienced maintenance engineers use the opportunity to inspect the entire vibration measurement loop and the surrounding control cabinet infrastructure.

Begin with the 3300 XL extension cable (such as the Bently Nevada 330130 series) that connects the probe to the proximitor sensor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation — particularly in high-temperature or high-vibration zones. A worn cable can introduce signal noise that mimics probe failure, so replacing or testing the cable alongside the probe eliminates ambiguity in fault diagnosis.

Next, inspect the 3300 XL Proximitor Sensor (e.g., Bently Nevada 330180 series). The proximitor converts the probe’s raw impedance signal into a calibrated DC voltage output. If the probe is being replaced due to a suspected measurement drift, the proximitor should be bench-tested or swapped with a known-good unit to confirm the fault source. Keeping a spare proximitor in your critical-spares inventory is strongly recommended for any facility running continuous rotating equipment.

While the control cabinet is open, verify the condition of the 3300 XL rack-mounted monitor modules — including velocity monitor cards and position monitor modules such as the Bently Nevada 3300/16 or 3300/20 series. These modules accumulate thermal stress over years of continuous operation. Any module showing intermittent alarms or calibration drift should be flagged for replacement during the same maintenance window to avoid a return visit.

For facilities running integrated machinery protection systems, this is also the right time to inspect Keyphasor probes (such as the Bently Nevada 330980 series), which provide the once-per-revolution reference signal essential for phase-referenced vibration analysis. A degraded Keyphasor signal can corrupt all phase-angle data across the monitoring system, making it a high-priority spare item alongside the 330106-00-04-10-02-00.

Beyond the vibration loop itself, check the 24 VDC power supply modules feeding the 3300 XL rack. Power supply degradation — including output ripple and voltage sag under load — is a leading cause of spurious alarms and module resets in rack-based monitoring systems. Redundant power supply modules should be tested under load and replaced on a scheduled cycle rather than reactively.

If your facility uses a System 1 Evolution condition monitoring software platform, confirm that the replacement probe’s calibration data is correctly entered into the software configuration. Mismatched sensitivity values will produce systematic measurement errors that are difficult to diagnose without reviewing the software configuration file. At the same time, inspect the communication gateway modules (such as Bently Nevada 3500/92 Ethernet modules) that link the rack to the plant DCS or historian — connector oxidation and firmware mismatches are common failure modes in long-running installations.

Finally, review the terminal blocks and signal wiring within the control cabinet. Loose or corroded terminal connections on vibration signal wiring are a common source of intermittent faults that are frequently misattributed to probe failure. Tightening and cleaning terminal connections during a probe replacement adds minimal time but significantly improves overall system reliability and reduces nuisance trip events.

Strategic Replacement Solutions

The 330106-00-04-10-02-00 is a direct replacement for earlier 3300 series proximity probes used in legacy Bently Nevada installations. Many industrial facilities continue to operate machinery protection systems installed in the 1990s and early 2000s, and sourcing original or fully compatible replacement probes for these systems has become increasingly challenging through standard distribution channels.

Replacing a degraded probe with an original 330106-00-04-10-02-00 eliminates the need for system reconfiguration, recalibration, or software parameter changes. The probe’s electrical characteristics — sensitivity, linear range, and connector interface — are identical to the original specification, ensuring that the monitoring system continues to operate within its validated measurement envelope without any modification to alarm setpoints or trip thresholds.

For facilities managing end-of-life rotating equipment where full system upgrades are not yet justified, maintaining a stock of original 3300 XL series probes, extension cables, and proximitor sensors provides a cost-effective path to extending system service life by five to ten years. This approach defers capital expenditure while maintaining the measurement integrity required for safe and compliant machinery operation.

Each unit dispatched from our inventory undergoes pre-shipment functional testing to verify electrical continuity, connector integrity, and sensitivity within specification. Units are packaged in anti-static, shock-resistant packaging suitable for international air freight and sea freight shipment. A 12-month quality warranty is provided on all units, covering manufacturing defects and functional failures under normal operating conditions.

Support FAQ

Q1: Is the 330106-00-04-10-02-00 compatible with my existing 3300 XL proximitor sensor and extension cable?
Yes. The 330106-00-04-10-02-00 is designed for use within the 3300 XL system architecture and is electrically and mechanically compatible with all standard 3300 XL proximitor sensors and extension cables, including the 330130 and 330180 series. No system reconfiguration is required for a like-for-like replacement.

Q2: What pre-shipment testing is performed on each unit?
Each unit undergoes electrical continuity testing, connector integrity inspection, and sensitivity verification prior to dispatch. Test records are available upon request. Units are shipped in protective anti-static packaging with a 12-month quality warranty certificate included.

Q3: How should I manage proximity probe inventory for a facility with multiple rotating machines?
For facilities with three or more critical rotating machines monitored by 3300 XL systems, we recommend maintaining a minimum of two spare probes per probe diameter in use, along with at least one spare extension cable and one spare proximitor sensor per system. This inventory level supports same-shift replacement during unplanned outages without waiting for expedited shipping.

Q4: Can this probe replace probes from other manufacturers in a 3300 XL-compatible system?
The 330106-00-04-10-02-00 is a Bently Nevada original part and is the recommended replacement for any 8mm eddy-current probe within a 3300 XL system. If your system was previously fitted with a third-party compatible probe, replacing it with the original Bently Nevada part restores full factory specification compliance and eliminates any compatibility uncertainty.
