Bently Nevada 330104-05-10-15-02-CN Replacement/Upgrade Solution for 3300 XL

Product Overview

Bently Nevada 330104-05-10-15-02-CN Replacement/Upgrade Solution for 3300 XL: Seamless Transition & Legacy System Compatibility

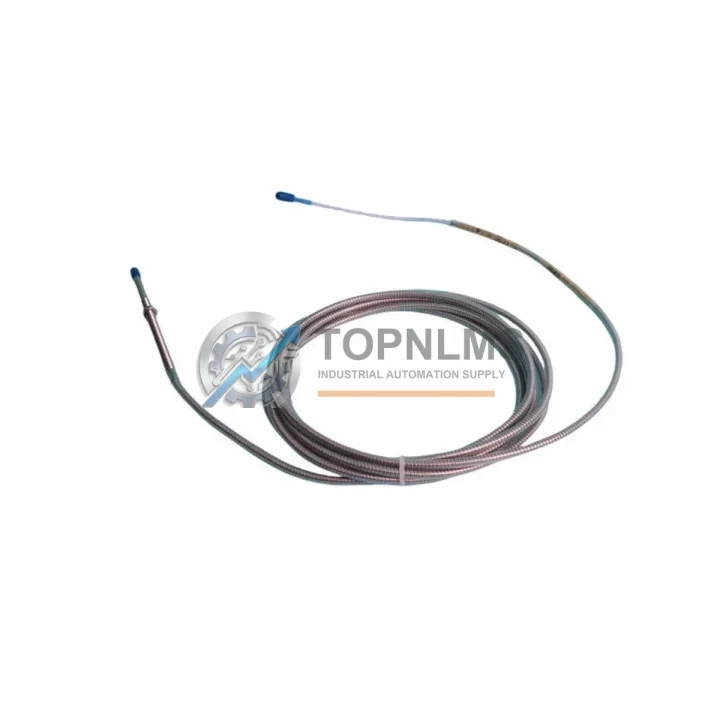

The Bently Nevada 330104-05-10-15-02-CN is an 8 mm proximity transducer belonging to the industry-standard 3300 XL Series, widely deployed in rotating machinery protection systems across power generation, oil & gas, petrochemical, and heavy industrial facilities. As original equipment ages, procurement teams and reliability engineers face increasing pressure to source verified replacement units that maintain full backward compatibility with existing Bently Nevada 3300 Series monitoring racks, extension cables, and signal conditioning hardware — without triggering costly re-engineering or extended plant shutdowns.

TOPNLMS stocks the 330104-05-10-15-02-CN as a direct drop-in replacement, sourced from verified supply channels and subjected to pre-shipment functional verification. Each unit ships with a 12-month warranty, full documentation, and is ready for immediate installation into your existing 3300 XL monitoring architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging vibration monitoring system to a fully operational 3300 XL architecture involves more than a single transducer swap. In practice, field engineers replacing the 330104-05-10-15-02-CN often simultaneously address adjacent components that have reached end-of-life or are approaching obsolescence.

The 330130-080-00-00 extension cable is the standard interconnect between the 330104 probe and the monitor rack input — verifying cable continuity and connector integrity before reinstallation eliminates the most common source of false gap readings. Where the existing extension cable shows insulation degradation or connector wear, a matched replacement cable ensures the system’s sensitivity specification is maintained without recalibration.

At the monitor card level, the 3300/16 Proximitor Monitor and 3300/20 Radial Vibration Monitor are the most common rack-mounted signal processors paired with 8 mm 3300 XL probes. If the monitor card itself is flagged during root-cause analysis, sourcing a replacement card alongside the transducer allows a single-outage resolution rather than a staged repair that risks a second unplanned shutdown.

For facilities running a Bently Nevada 3500 Series machinery protection system alongside legacy 3300 hardware, the 3500/42M Proximitor/Seismic Monitor module provides a migration path that retains existing probe wiring while adding MODBUS TCP and PROFIBUS DP communication capability — enabling integration with modern DCS platforms such as Emerson DeltaV or Honeywell Experion without rewiring the field junction boxes.

Power supply integrity is equally critical. The 3300 Series Power Supply Module (typically –24 VDC regulated) must be verified for output stability before commissioning a new transducer. A marginal power supply that passes basic continuity checks can still introduce noise into the proximity signal chain, causing nuisance trips. Where the existing PSU is original equipment from the same installation vintage as the transducer being replaced, proactive PSU replacement is a standard reliability engineering recommendation.

In control cabinet environments where multiple 3300 XL probes are routed through a common terminal block assembly, the 3300 Series I/O Terminal Block and associated field wiring barriers should be inspected for corrosion, loose terminations, and ground loop conditions. Signal isolators — such as DIN-rail-mounted galvanic isolators compatible with –24 VDC proximity outputs — are frequently added during retrofit projects to eliminate ground loops introduced when integrating legacy Bently Nevada signals into newer PLC or safety system I/O cards.

For sites transitioning to a fully digital architecture, the Bently Nevada System 1 condition monitoring software platform supports both 3300 and 3500 Series hardware, allowing a phased migration where legacy 3300 XL transducers continue to operate while new 3500 monitor cards are introduced rack-by-rack — minimizing capital expenditure and operational risk during the transition period. Additionally, the 3300/25 Keyphasor Monitor is commonly installed in the same rack to provide shaft reference signals essential for phase-referenced vibration analysis during commissioning of replacement transducers.

Retrofit Guidance FAQ

Q: Is the 330104-05-10-15-02-CN a direct replacement for the non-armored 330104-05-10-15-02-00?
A: Yes. The CN suffix denotes the armored (conduit) cable variant. The probe tip geometry, sensitivity (200 mV/mil), gap range, and connector type are identical. The only physical difference is the armored outer jacket, which provides additional mechanical protection in high-vibration or chemically aggressive environments. No recalibration of the monitor card is required when substituting CN for non-CN variants.

Q: Do I need to reconfigure the 3300 Series monitor card after installing this replacement transducer?
A: No configuration changes are required provided the replacement unit is the same probe diameter (8 mm) and sensitivity specification. The 3300 Series monitor cards store calibration parameters based on the Proximitor system sensitivity, not the individual probe serial number. Verify the gap voltage at installation (typically –10.0 VDC ±0.5 VDC at the nominal air gap) and confirm the OK relay status before returning the machine to service.

Q: Can this transducer be used with a Bently Nevada 3500 Series rack?
A: Yes. The 3300 XL 8 mm probe system is electrically compatible with 3500 Series Proximitor monitor cards (e.g., 3500/42M) when the correct sensitivity setting is selected in the rack configuration software. This is a common configuration in facilities running mixed 3300/3500 architectures during phased upgrades.

Q: What is the recommended installation gap for the 330104-05-10-15-02-CN?
A: The nominal installation gap is 1.0 mm (approximately –10.0 VDC output). The linear range extends from 0.25 mm to 2.25 mm. Set the gap to achieve –10.0 VDC ±0.5 VDC at the Proximitor output with the shaft stationary and at operating temperature.

Q: How do I verify the transducer is functioning correctly after installation?
A: With the machine stationary, measure the DC gap voltage at the Proximitor output. Confirm the OK relay is energized. Rotate the shaft slowly by hand and verify the AC vibration signal is present and proportional to shaft movement. Compare readings against the previous baseline data stored in your condition monitoring system before returning the machine to automatic protection mode.

Q: What physical space is required for installation?
A: The 330104-05-10-15-02-CN uses a standard 8 mm probe boss (M10 × 1.0 thread). No machining or housing modification is required for a like-for-like replacement. The armored cable requires a conduit entry point; verify the existing conduit fitting is compatible with the CN cable outer diameter before installation.

Warranty Assurance

Every 330104-05-10-15-02-CN unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes electrical continuity verification, sensitivity output measurement, connector integrity check, and visual inspection of the probe tip and cable assembly. Units that do not meet Bently Nevada specification are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation questions, gap setting verification, and compatibility confirmation for mixed 3300/3500 Series architectures. Response time for warranty and technical inquiries is typically within one business day.

Stock is maintained in Xiamen, China, with standard international shipping to major industrial regions. Express shipping options are available for urgent plant maintenance requirements. All units ship with a packing list, test record, and warranty certificate.

For bulk procurement, long-term supply agreements, or technical pre-sales consultation, contact our industrial automation team directly.
