Bently Nevada 330104-01-05-10-02-00 Replacement for 3300 XL: Smooth Migration & Upgrade Solution

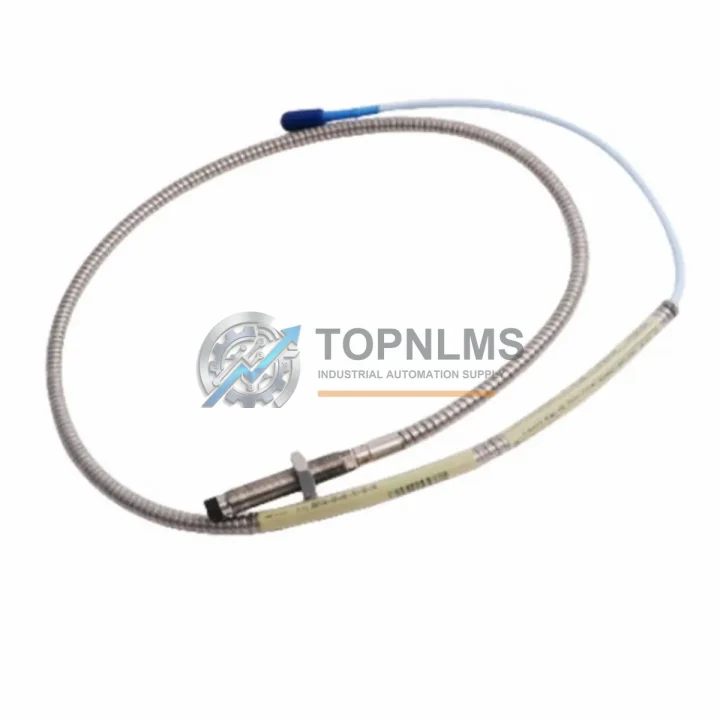

The Bently Nevada 330104-01-05-10-02-00 is an 8mm eddy-current proximity probe from the industry-standard 3300 XL Series, engineered for continuous shaft vibration, position, and eccentricity monitoring in rotating machinery. As legacy 3300 XL installations age and original spare inventories deplete, plant engineers and reliability teams increasingly require a verified, drop-in replacement that preserves existing wiring infrastructure, gap voltage calibration, and system architecture — without forcing a full machinery protection system overhaul.

TOPNLMS supplies the 330104-01-05-10-02-00 as a direct replacement and upgrade solution for facilities operating Bently Nevada 3300 XL machinery protection systems. Each unit is sourced, inspected, and shipped from Xiamen with a 12-month warranty, supporting smooth migration from end-of-life or discontinued probe assemblies to a fully functional, specification-matched unit.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a worn or discontinued proximity probe assembly to the 330104-01-05-10-02-00 rarely involves the probe alone. In practice, field engineers replacing this unit within an active Bently Nevada 3500 Series machinery protection rack will also evaluate the condition of the paired 330130 Series extension cable, which routes the signal from the probe tip through the bearing housing conduit to the Proximitor junction box. If the extension cable jacket shows heat damage or connector corrosion after years of service, replacing it alongside the probe eliminates a common source of intermittent gap voltage drift that can trigger nuisance trips.

The 330180 Series 3300 XL 8mm Proximitor mounted in the field junction box is the signal conditioning element that converts probe gap voltage into a readable output for the 3500/40M Proximitor I/O Module in the monitor rack. Where the Proximitor itself is beyond its service life, a simultaneous replacement of both the probe and Proximitor ensures the entire measurement chain is restored to factory specification, avoiding mismatched sensitivity curves. The 3500/40M and 3500/42M I/O modules in the rack accept the conditioned signal directly — no channel reconfiguration is required when the replacement probe matches the original sensitivity.

For facilities running a full Bently Nevada 3500 rack, the 3500/20 Rack Interface Module (RIM) and 3500/22M Transient Data Interface manage communication between the protection system and the plant DCS or historian via Modbus RTU/TCP or the 3500/92 Communication Gateway for Ethernet connectivity. When migrating from an older 3300 Series installation to a 3300 XL-based architecture, verifying that the RIM firmware supports the updated channel configuration prevents data gaps during commissioning. The 3500/32 4-Channel Relay Module should also be confirmed against the new probe’s alarm setpoints before the machine is returned to service.

In turbine and compressor applications where the 330104-01-05-10-02-00 is used for radial vibration measurement, a companion 330105 Series thrust position probe is often installed on the same shaft. Replacing both probes during a planned outage eliminates the need for a second machine isolation within the same maintenance window, reducing total downtime. 330980 Series Keyphasor probes mounted on the same shaft should also be inspected, as their gap voltage reference directly affects phase-referenced vibration analysis in the 3500 monitor. Replacing a degraded Keyphasor probe at the same time as the radial vibration probe ensures the entire measurement system is commissioned together, reducing the risk of phase-angle errors in post-maintenance vibration reports.

Where the existing field wiring conduit is shared with power cables or the installation is in a classified hazardous area, a signal isolator or Zener barrier module may be required to suppress common-mode noise on the probe output and maintain intrinsic safety compliance. TOPNLMS can advise on compatible barrier options for 3300 XL probe circuits based on your site’s hazardous area classification, cable run length, and applicable IEC or NEC standards.

Retrofit Guidance FAQ

Q: Can I reuse my existing extension cable and Proximitor when replacing the 330104-01-05-10-02-00?
A: Yes, in most cases. The 330104-01-05-10-02-00 mates directly with the 330130 Series extension cable and the 330180 Series 3300 XL 8mm Proximitor. Provided both components are within specification, no additional hardware is required. Verify total system resistance and gap voltage at the Proximitor output before returning the channel to service.

Q: Will I need to reconfigure the 3500 monitor after installing the replacement probe?
A: No configuration changes are required. The 330104-01-05-10-02-00 maintains the same sensitivity (7.87 V/mm), gap voltage (−10 VDC at 2.0 mm), and connector interface as the original 3300 XL 8mm probe. Existing alarm and trip setpoints remain valid. A gap voltage verification at the Proximitor is recommended as a commissioning check.

Q: What is the correct installation gap for this probe?
A: The recommended installation gap is 2.0 mm (approximately 79 mils), corresponding to a Proximitor output of −10 VDC. Use a non-ferrous feeler gauge or a calibrated gap-setting tool. Confirm the gap voltage at the Proximitor output with a calibrated voltmeter before locking the probe in position with the locknut.

Q: Is this probe compatible with the Bently Nevada 1900/65 general-purpose monitor?
A: Yes. The 330104-01-05-10-02-00 is compatible with the 1900/65 machinery protection monitor when used with the appropriate 3300 XL 8mm Proximitor. Verify the monitor’s input configuration matches the probe system’s sensitivity and gap voltage specifications before commissioning.

Q: How do I handle physical space constraints in the bearing housing during replacement?
A: The 330104-01-05-10-02-00 uses a standard M10 × 1.0 mm thread and 8mm tip diameter, identical to the original 3300 XL 8mm probe. No machining or modification of the probe holder or bearing housing is required. The 0.5 m integral cable routes through the existing conduit entry. If bearing housing access is restricted, a right-angle extension adapter may be used, provided it is rated for the operating temperature range.

Q: What communication protocols does the 3500 system support when using this probe?
A: The 3500 machinery protection system communicates via Modbus RTU/TCP, Ethernet (via the 3500/92 Communication Gateway), and hardwired relay outputs. The probe itself is an analog sensor; protocol compatibility is determined by the 3500 rack modules, not the probe. No protocol changes are required when replacing the probe on an existing installation.

Q: What if the original probe model is discontinued and I cannot find the exact part number?
A: The 330104-01-05-10-02-00 is the current 3300 XL 8mm probe part number and serves as the direct replacement for earlier 3300 Series 8mm probes. If your existing installation uses an older part number from the 3300 or 7200 Series, contact TOPNLMS with your existing probe’s part number and cable length for a compatibility confirmation before ordering.

Warranty Assurance

Every Bently Nevada 330104-01-05-10-02-00 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment inspection that includes visual examination, connector integrity check, and gap voltage verification against the 3300 XL specification. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned item. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse, with express shipping available to minimize plant downtime.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with each shipment. Lead time for in-stock units is typically 3–7 business days to most international destinations. Bulk orders and blanket purchase agreements are supported for facilities managing multi-machine spare inventories.

Contact our technical sales team to confirm stock availability, request a quotation, or discuss compatibility with your specific installation before placing an order.
