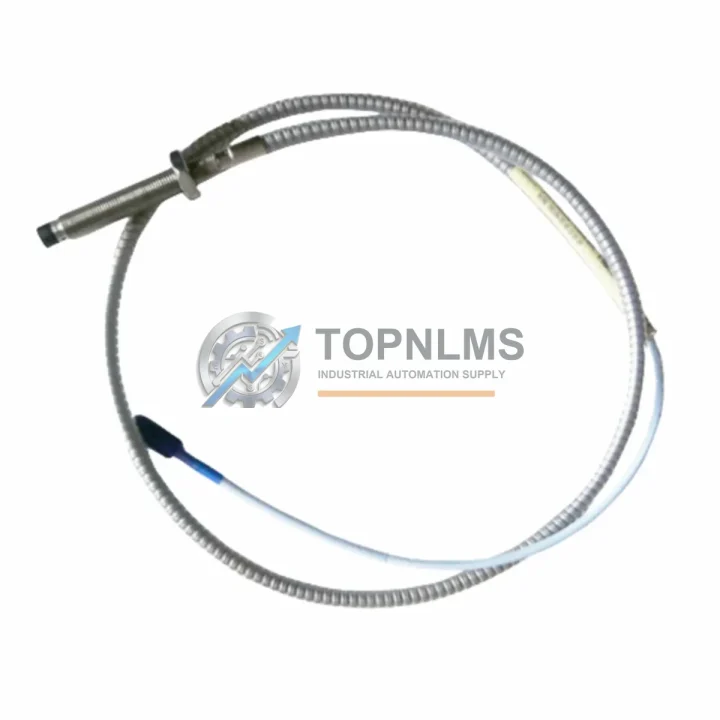

Bently Nevada 330104-00-14-10-02-00 3300 XL Probe Upgrade

Product Overview

Bently Nevada 330104-00-14-10-02-00 3300 XL Probe Upgrade: Seamless Transition from Legacy Vibration Monitoring Systems

Migrating an aging machinery protection system to a modern, reliable platform is one of the most critical decisions a maintenance or reliability engineer can make. The Bently Nevada 330104-00-14-10-02-00 is a 5 mm proximity probe within the industry-standard 3300 XL Series — a platform that has served rotating machinery protection across turbines, compressors, pumps, and gearboxes for decades. Whether you are replacing a failed unit, upgrading from an earlier 3300 Series variant, or consolidating spare parts inventory, this probe delivers a verified drop-in solution with full backward compatibility to the 3300 XL signal conditioning chain.

The 330104-00-14-10-02-00 operates as part of a three-component Proximitor system. The probe itself is paired with an extension cable — typically the 330130 Series armored extension cable — and a Proximitor sensor such as the 3300 XL 8mm Proximitor (330180 Series) or the standard 3300 XL 5mm Proximitor (330101 Series). When replacing only the probe tip, engineers must verify that the existing extension cable connector type and total system cable length remain within the calibrated range specified in the Bently Nevada system manual. Mismatched cable lengths are the most common source of calibration drift during field replacement, and this unit ships pre-verified to the standard 14-inch (355 mm) active element length.

For facilities running legacy 3300 Series (non-XL) systems, the 330104-00-14-10-02-00 is not a direct plug-in replacement without recalibration of the Proximitor driver. In those migration scenarios, the recommended upgrade path involves replacing the Proximitor driver card — such as transitioning from a 3300/16 I/O module to a 3500/42M Proximitor/Seismic Monitor — alongside the probe. The 3500 Series rack-based system accepts the same 3300 XL probe and extension cable assemblies, making the wiring transition straightforward while delivering enhanced diagnostics, MODBUS/TCP and RS-232 communication options, and compatibility with System 1 condition monitoring software.

Installation space is rarely a concern: the 330104-00-14-10-02-00 uses the standard M8 × 1.0 threaded body, compatible with existing probe holders and bracket assemblies already installed on the machine casing. No machining or bracket modification is required for a like-for-like swap. The armored cable routes through existing conduit runs, and the Proximitor driver mounts in the same DIN-rail or panel-mount footprint as the unit being replaced.

From a communication and system architecture perspective, the 3300 XL Proximitor outputs a standard –24 VDC gap voltage signal, which feeds directly into 3500 Series monitor cards, legacy 3300/16 monitors, or third-party vibration monitoring systems that accept a –24 VDC Bently Nevada-compatible input. No signal converter or isolator is required in a standard replacement scenario. For facilities integrating into a DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA — the 4–20 mA output from the Proximitor monitor card remains unchanged, preserving all existing loop wiring and DCS I/O channel assignments.

Procurement teams frequently ask about lead times and testing. Every unit in our inventory has been functionally tested against Bently Nevada factory calibration curves prior to dispatch. Units are shipped with a calibration data sheet and a 12-month warranty certificate. Standard dispatch from our Xiamen warehouse is 3–5 business days for international orders, with DHL Express and FedEx International Priority available for urgent replacement scenarios where machine downtime costs are significant.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300 XL probe replacement rarely involves the probe alone. In most field migration projects, the 330104-00-14-10-02-00 is deployed alongside a set of complementary components that together restore or enhance the full machinery protection chain.

The most common companion item is the 330130 Series armored extension cable, which bridges the probe to the Proximitor driver. If the existing cable shows signs of jacket damage, connector corrosion, or impedance drift — all common in high-temperature or high-vibration environments — replacing it simultaneously with the probe eliminates a second unplanned outage. The 330101-00-30-10-02-00 Proximitor sensor is the standard 5mm driver for this probe family; facilities upgrading from a 3300/16 monitor card to a 3500/42M Proximitor/Seismic Monitor will find that the 3500 Series rack accepts the same probe and cable assembly with no wiring changes at the machine end.

For facilities performing a broader control system migration — moving from a standalone 3300 Series panel to a full 3500 Series machinery protection rack — the upgrade typically also involves a 3500/20 Rack Interface Module for Ethernet/Modbus communication, a 3500/15 Power Supply Module to replace the legacy panel power distribution, and a 3500/32 4-Channel Relay Module for alarm and trip output wiring. These rack components share the same 19-inch panel footprint as many legacy 3300 installations, simplifying the physical retrofit.

On the signal conditioning side, facilities integrating into a DCS or safety instrumented system sometimes add a signal isolator or barrier — such as a Phoenix Contact or Pepperl+Fuchs Zener barrier — between the Proximitor output and the DCS analog input card, particularly in Zone 1 or Zone 2 hazardous area installations. The –24 VDC gap voltage signal and 4–20 mA monitor output are both compatible with standard galvanic isolators without any signal scaling changes.

Finally, for commissioning and loop verification, a Bently Nevada 330180 Proximitor calibration tool or a precision gap simulator is recommended to verify the probe-Proximitor system gap voltage curve after installation, confirming that the replacement unit is operating within the factory-specified linear range before the machine is returned to service.

Retrofit Guidance FAQ

Q: Can I replace only the probe without replacing the extension cable and Proximitor?
A: Yes, in a like-for-like 3300 XL replacement. Verify that the existing extension cable connector is undamaged and that the total system cable length matches the calibrated configuration. If the Proximitor is also a 3300 XL variant (330101 or 330180 Series), no recalibration is required.

Q: Will this probe work with my legacy 3300/16 monitor card?
A: The 330104-00-14-10-02-00 is a 3300 XL probe and is designed for use with 3300 XL Proximitor sensors. It can be used with a 3300/16 monitor if paired with a 3300 XL Proximitor driver, but the monitor card itself must be verified for XL compatibility. We recommend confirming with your system documentation or contacting our technical team.

Q: Is rewiring required at the junction box or DCS cabinet?
A: No. The probe-to-Proximitor wiring uses the same coaxial connector standard. The Proximitor-to-monitor wiring and the monitor’s 4–20 mA output to the DCS remain unchanged in a direct replacement scenario.

Q: What is the physical installation clearance required?
A: The M8 × 1.0 threaded body fits all standard Bently Nevada probe holders. The 14-inch active element length is identical to the replaced unit. No additional clearance or bracket modification is needed.

Q: How do I verify correct gap voltage after installation?
A: Set the probe gap to the midpoint of the linear range (typically 50 mils / 1.27 mm for a 5mm probe) and verify the Proximitor output reads approximately –12 VDC. Use a calibrated gap block or a precision micrometer stage for accurate verification. Full calibration curves are available in the Bently Nevada 3300 XL Installation Manual.

Q: Can this probe be used in a hazardous area (ATEX/IECEx)?
A: The 330104-00-14-10-02-00 carries standard certifications. For Zone 1/Zone 2 installations, verify the specific approval suffix on your existing probe and confirm that the replacement unit carries the same hazardous area certification. Contact us with your installation zone classification for confirmation before ordering.

Warranty Assurance

Every 330104-00-14-10-02-00 unit dispatched from TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification against Bently Nevada factory calibration specifications, including gap voltage linearity check, connector integrity inspection, and cable continuity test. A calibration data sheet is included with every shipment.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team responds to warranty and application inquiries within one business day. For urgent replacement scenarios — where a machine is offline and production is at risk — we offer priority dispatch with DHL Express or FedEx International Priority to minimize downtime.

We maintain bonded stock of the 330104-00-14-10-02-00 and related 3300 XL Series components to support both planned maintenance schedules and emergency breakdown requirements. Purchase orders, proforma invoices, and material certifications are available on request to support your procurement and quality assurance processes.
