Bently Nevada 330104-00-13-10-02-CN Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330104-00-13-10-02-CN Original Industrial Spare 3300 XL Compatible: System Stability and Industrial Spare Maintenance Value

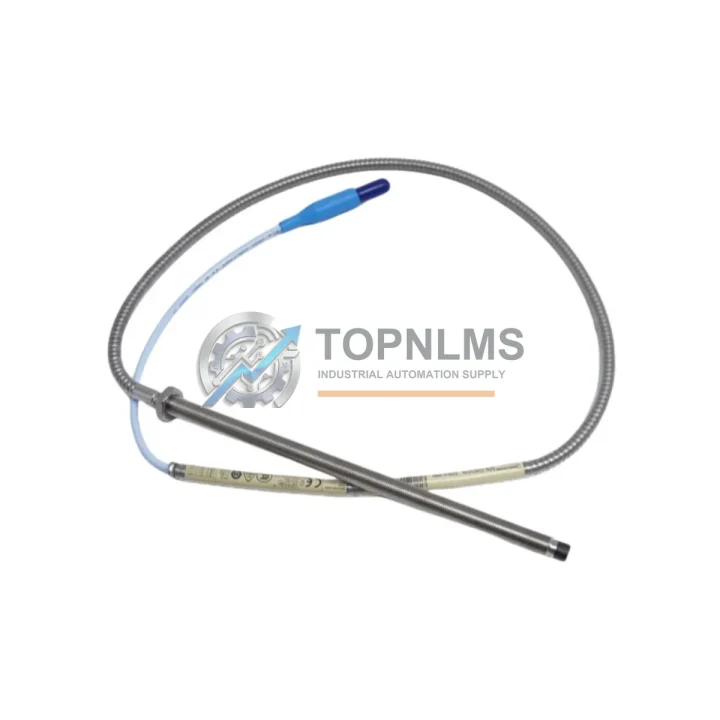

The Bently Nevada 330104-00-13-10-02-CN is an original proximity transducer designed for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or executing a preventive maintenance cycle, having a verified original spare of this transducer on hand is a foundational element of any serious maintenance strategy. This component is engineered to deliver precise, non-contact measurement of shaft radial vibration, axial position, and differential expansion in turbines, compressors, pumps, and motors operating in demanding industrial environments.

For maintenance engineers and reliability teams, the 330104-00-13-10-02-CN represents more than a single sensor — it is a critical node in a complete machinery protection loop. Its replacement without verified compatibility can introduce measurement drift, false trips, or undetected machinery faults. Sourcing an original spare from a trusted supplier eliminates that risk and ensures your 3300 XL system continues to operate within its certified performance envelope.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proximity transducer does not operate in isolation. The 330104-00-13-10-02-CN is part of a three-component measurement chain — probe, extension cable, and proximitor/oscillator-demodulator — and the integrity of the entire chain determines measurement accuracy. When replacing or inspecting this transducer, maintenance teams should simultaneously verify the condition of the companion Bently Nevada 330130-080-00-00 extension cable and the 3300 XL 8mm Proximitor (330180-X1-05). A degraded extension cable or a proximitor with a drifting bias voltage will produce erroneous readings even with a new probe installed.

Beyond the transducer chain itself, a comprehensive inspection of the control cabinet and monitoring rack is strongly recommended during any planned outage. The 3300/16 Dual Vibration Monitor and 3300/20 Radial Vibration Monitor cards that process signals from this transducer should be checked for relay output integrity and alarm setpoint calibration. If your facility runs a multi-channel rack, inspecting the 3300/55 Combination Monitor alongside the transducer replacement ensures that no upstream processing fault masks a genuine machinery anomaly.

Power supply reliability is equally critical. The Bently Nevada 3300/05 Power Supply feeding the monitoring rack should be tested for output voltage stability during the same maintenance window. A marginal power supply can introduce noise into the transducer signal chain, leading to nuisance trips or, worse, masking real vibration events. Pairing a power supply inspection with transducer replacement is a low-cost, high-value maintenance practice.

For facilities managing older 3300 XL installations, it is also prudent to audit the I/O terminal blocks and field wiring connectors within the junction box. Corroded terminals or loose connections at the field end of the extension cable are a common source of intermittent signal faults that are frequently misdiagnosed as transducer failure. Replacing the transducer without addressing wiring integrity will not resolve the underlying fault. Similarly, the 3300 XL barrier isolators or Zener barriers used in hazardous area installations should be tested for compliance with their rated parameters.

If your machinery protection system interfaces with a DCS or PLC via 4–20 mA output modules, verify that the analog input cards receiving vibration data are functioning correctly and that scaling parameters have not drifted. In many facilities, the vibration monitoring system feeds critical interlock logic in a Siemens S7 or Allen-Bradley ControlLogix PLC, and a misconfigured analog input can result in either spurious shutdowns or failure to trip on a genuine fault condition. Reviewing the interlock logic and analog scaling during a transducer replacement outage is a best practice that significantly reduces operational risk.

Finally, for facilities with HMI-based condition monitoring dashboards, confirm that the vibration trend displays and alarm history logs are correctly mapped to the replaced transducer channel. After installation, perform a static gap voltage check and a dynamic signal verification to confirm the new transducer is operating within the expected linear range before returning the machine to service.

Strategic Replacement Solutions

The 330104-00-13-10-02-CN is a direct replacement for earlier 3300 Series proximity probes used in legacy machinery protection installations. Many facilities that originally commissioned their rotating equipment in the 1990s or early 2000s are still operating 3300 XL monitoring systems, and the availability of original spare transducers is essential to extending the operational life of these systems without undertaking a costly full-system upgrade.

Sourcing an original Bently Nevada transducer — rather than an uncertified aftermarket substitute — ensures that the probe’s sensitivity, linearity, and temperature coefficient remain within the factory-calibrated parameters that the 3300 XL monitor expects. Aftermarket probes with nominally similar specifications frequently exhibit sensitivity deviations of 5–15% that are sufficient to shift alarm and danger setpoints outside their intended protective range, creating a latent safety risk that may not be detected until a machinery event occurs.

For maintenance planners managing multi-machine facilities, establishing a minimum stock level of two to four units of the 330104-00-13-10-02-CN per monitored machine train is a prudent inventory strategy. The lead time for original Bently Nevada spares through standard distribution channels can range from two to eight weeks depending on regional availability. Holding verified original spares on-site eliminates this lead time risk and enables same-day replacement during unplanned outages, directly reducing mean time to repair (MTTR) and minimizing production loss.

TOPNLMS supplies the 330104-00-13-10-02-CN from verified original stock, with each unit inspected and tested prior to shipment. Orders are processed and dispatched within 1–3 business days, with worldwide shipping available. Every unit is covered by a 12-month warranty against manufacturing defects, providing procurement teams with the confidence needed to approve spare parts purchases for critical machinery protection applications.

Support FAQ

Q1: Is the 330104-00-13-10-02-CN compatible with all 3300 XL monitors?
Yes. This transducer is designed for use with the full 3300 XL monitor family, including the 3300/16, 3300/20, 3300/25, and 3300/55 models. It must be used with a compatible 3300 XL Proximitor and extension cable to form a complete, calibrated measurement chain. If you are replacing a transducer in an existing installation, verify that the Proximitor model and extension cable length match the original system configuration.

Q2: What is the recommended inspection interval for this proximity transducer?
Bently Nevada recommends verifying gap voltage and cable integrity every 6 to 12 months as part of a routine preventive maintenance program. In high-temperature or high-vibration environments, more frequent inspection may be warranted. During each inspection, check the probe tip for mechanical damage, verify the coaxial connector for corrosion, and confirm that the static gap voltage falls within the linear range specified for the target material.

Q3: How is the unit tested before shipment?
Each 330104-00-13-10-02-CN unit supplied by TOPNLMS undergoes a pre-shipment functional inspection that includes verification of the probe’s output sensitivity, cable continuity, and connector integrity. Units that do not meet original factory specifications are not dispatched. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and verified performance failures under normal operating conditions.

Q4: Can this transducer be used as a direct field replacement without system recalibration?
In most cases, yes — provided the replacement transducer is an original Bently Nevada unit with the same part number and the installation gap is set correctly for the target material. However, if the target shaft material differs from AISI 4140 steel, a material-specific calibration curve must be applied. After installation, always perform a static gap voltage check and confirm the reading falls within the monitor’s configured linear range before returning the machine to service.
