Allen-Bradley 2711PC-RP8D Ruggedized HMI Logic Module

Product Overview

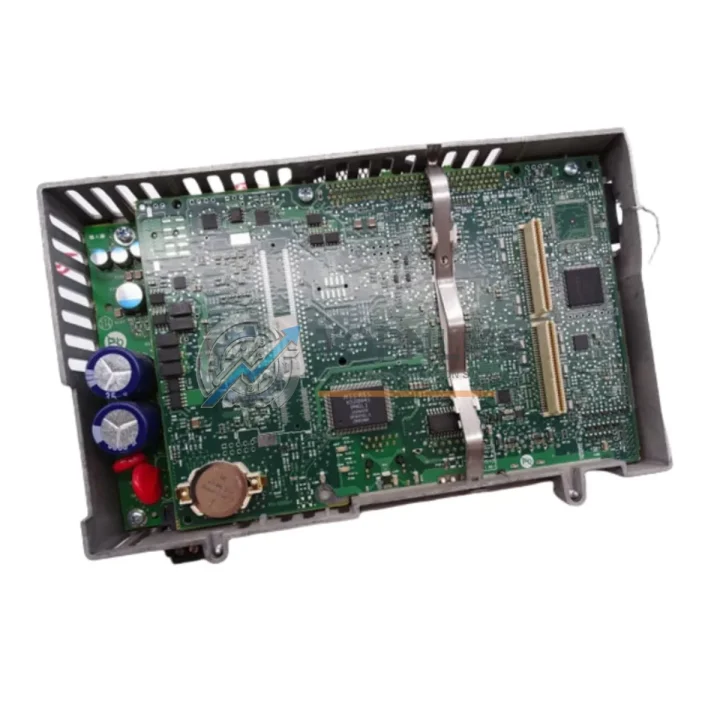

Allen-Bradley 2711PC-RP8D Ruggedized HMI Logic Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 2711PC-RP8D is a field-replaceable logic module engineered for the PanelView Plus 6 Compact HMI terminal series, designed to sustain continuous, reliable operation in the most demanding industrial environments. Built to Rockwell Automation’s rigorous quality standards, this module delivers the processing power, communication integrity, and environmental resilience required for mission-critical automation applications — from high-temperature foundry floors to dust-laden mining galleries and vibration-intensive heavy manufacturing lines.

In modern industrial control architectures, the HMI logic module is the cognitive core of the operator interface. The 2711PC-RP8D manages all runtime logic, application data, and communication protocols within the PanelView Plus 6 Compact terminal, ensuring that operators maintain real-time visibility and control over connected Allen-Bradley PLCs, ControlLogix and CompactLogix controllers, and distributed I/O networks. When this module is functioning at peak performance, the entire control loop — from sensor input through PLC processing to HMI visualization — operates with the determinism and safety margins that critical infrastructure demands.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2711PC-RP8D does not operate in isolation — it is the interface layer between human operators and a broader ecosystem of Allen-Bradley and Rockwell Automation control hardware. In a typical control cabinet deployment, this logic module communicates directly with ControlLogix L7x series PLCs or CompactLogix L3x controllers via EtherNet/IP, enabling seamless tag-based data exchange without additional configuration overhead. The module’s robust communication stack also supports legacy DF1 and DH-485 protocols, making it an ideal replacement or upgrade component in brownfield installations where older SLC 500 or MicroLogix 1400 controllers remain in service.

Within the same control enclosure, the 2711PC-RP8D frequently operates alongside Allen-Bradley 1734 POINT I/O modules, 1756 ControlLogix I/O adapters, and 1769 CompactLogix expansion modules. These distributed I/O components feed real-time process data — temperature readings, pressure signals, flow rates, and motor status — directly into the HMI visualization layer managed by the 2711PC-RP8D. In high-vibration environments such as mining conveyors or steel rolling mills, the module’s solid-state design and conformal-coated circuit board provide the mechanical and electrical stability that conventional computing hardware cannot match.

Power integrity is equally critical. The PanelView Plus 6 Compact terminal powered by the 2711PC-RP8D is typically supplied by Allen-Bradley 1606-XLP series industrial power supplies, which deliver clean, regulated DC power even when upstream AC mains are subject to voltage sags, surges, or harmonic distortion from variable frequency drives such as the PowerFlex 525 or PowerFlex 755. The 2711PC-RP8D’s internal power management circuitry is designed to tolerate these transient conditions without data corruption or unexpected resets — a non-negotiable requirement in continuous process industries.

For safety-critical applications, the HMI terminal running the 2711PC-RP8D logic module is often integrated with Allen-Bradley GuardLogix safety PLCs and 1791DS CompactBlock Guard I/O modules. The HMI provides operators with real-time safety status visualization, alarm acknowledgment, and emergency stop confirmation screens — functions that must remain available even during partial system faults. Supplementary communication is handled through 1783-series Stratix managed Ethernet switches, ensuring deterministic network performance across the plant floor. In installations requiring additional terminal block connectivity, 1492-series wiring accessories and Allen-Bradley 1492-CABLE series pre-wired terminal modules are commonly paired within the same control cabinet.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 2711PC-RP8D-equipped PanelView Plus 6 Compact terminals serve as the primary operator interface for wellhead control panels, compressor station HMIs, and pipeline SCADA local nodes. These environments impose extreme demands: ambient temperatures exceeding 45°C, persistent hydrocarbon vapors, and continuous mechanical vibration from reciprocating compressors. The module’s sealed logic board and wide operating temperature range ensure that operators retain full control visibility without the risk of HMI processor failure during peak production cycles.

In underground mining operations, where coal dust, silica particulates, and explosive atmospheres create both safety and reliability challenges, the 2711PC-RP8D is deployed within NEMA 4X-rated enclosures on conveyor drive control panels, ventilation management stations, and ore processing HMI consoles. Its EMI immunity — validated against IEC 61000-4-2 through IEC 61000-4-6 — protects the module from the intense electromagnetic fields generated by large DC drive systems and high-current motor starters common in mineral processing plants.

Power generation facilities — including thermal, hydroelectric, and wind farm substations — rely on the 2711PC-RP8D for turbine control HMI applications, where the module must maintain continuous operation across multi-year maintenance intervals. Water and wastewater treatment plants deploy this logic module in pump station control panels and chemical dosing HMI stations, where humidity levels frequently approach saturation and chemical aerosols can degrade unprotected electronics. Metallurgical plants and automotive body-in-white welding lines represent additional high-cycle, high-temperature use cases where the 2711PC-RP8D’s proven field reliability translates directly into reduced unplanned downtime and lower total cost of ownership.
