Allen-Bradley 2711P-RP1X Original Spare PanelView Plus Compatible

Product Overview

Allen-Bradley 2711P-RP1X Original Spare PanelView Plus Compatible: System Stability & Industrial Maintenance Value

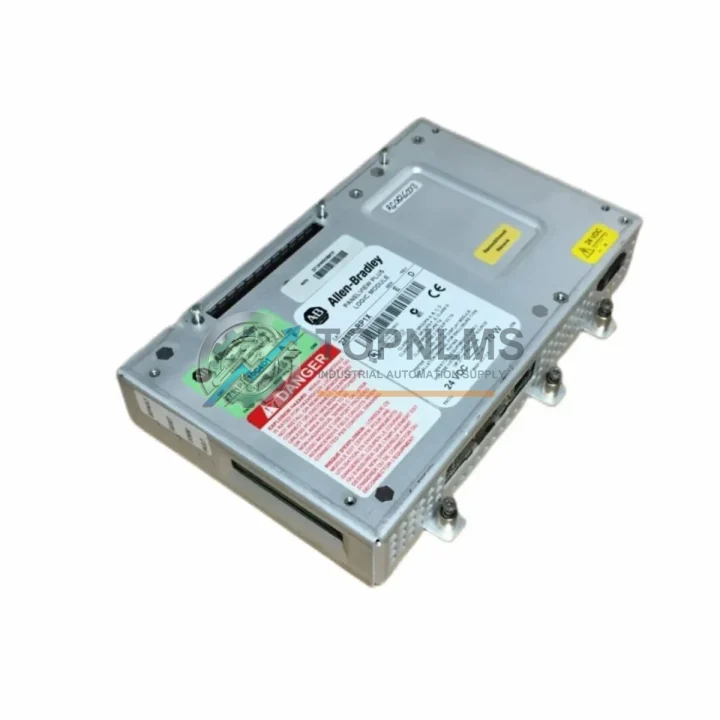

The Allen-Bradley 2711P-RP1X is the original replacement logic module engineered for PanelView Plus 6 HMI terminals across the Rockwell Automation ecosystem. In industrial environments where unplanned downtime translates directly into production loss, having a verified, tested spare logic module on the shelf is not optional — it is a core element of any responsible maintenance strategy. The 2711P-RP1X restores full HMI functionality without requiring panel redesign, rewiring, or software reconfiguration, making it the preferred choice for maintenance engineers managing aging control systems, multi-line production floors, and legacy Rockwell installations.

Whether your facility operates continuous process lines, discrete manufacturing cells, or batch production systems, the PanelView Plus 6 terminal is likely a critical operator interface node. When the logic module fails — due to firmware corruption, power surge damage, or end-of-life component degradation — the 2711P-RP1X provides a direct, drop-in replacement path that preserves your existing application files, communication configurations, and operator screen layouts. This eliminates the engineering hours typically associated with HMI replacement and gets your line back online in the shortest possible time.

Critical Technical Specs

Preventive Maintenance Strategy

A logic module failure in a PanelView Plus 6 terminal rarely occurs in isolation. In most field cases, the root cause involves broader electrical stress events — power quality issues, ground faults, or thermal cycling — that simultaneously affect adjacent components in the same control cabinet. A thorough preventive maintenance inspection should therefore extend beyond the HMI module itself.

When replacing or inspecting the 2711P-RP1X, maintenance teams should concurrently evaluate the 2711P-RW1 display module for backlight degradation and touch calibration drift, as display and logic modules share the same power rail and are subject to identical thermal stress. The terminal housing — whether a 2711P-B7C4D8 or equivalent PanelView Plus 6 assembly — should be inspected for housing cracks, connector corrosion, and seal integrity, particularly in washdown or high-humidity environments.

Within the same control cabinet, the 1756-PA72 or 1756-PB72 ControlLogix power supply module should be checked for output voltage stability, as undervoltage conditions are a leading cause of HMI logic module corruption. If the system uses a 1756-L71 or 1756-L73 ControlLogix CPU, verify firmware version compatibility with the replacement logic module to ensure seamless EtherNet/IP communication restoration after the swap.

For facilities running 1769 CompactLogix I/O modules on the same network segment, confirm that the EtherNet/IP node address and subnet configuration are correctly retained in the replacement module’s startup parameters. Communication infrastructure components such as the 1756-EN2T EtherNet/IP bridge module should also be inspected for port activity and error counters — a degraded network switch or cable can cause intermittent HMI disconnects that are frequently misdiagnosed as logic module failures.

Terminal blocks and 1492-series wiring duct and terminal assemblies connected to the HMI power input should be inspected for loose terminations and oxidation. A loose 24 VDC connection is a common and frequently overlooked cause of logic module brownout damage. If the panel includes a 1606-XLP DIN-rail 24 VDC power supply feeding the HMI, verify output ripple and load regulation under full panel load conditions before completing the replacement procedure.

For systems with distributed architecture, the 1734 POINT I/O adapter modules on the same EtherNet/IP ring should be checked for firmware currency and connection health. Finally, if the facility maintains a FactoryTalk View Site Edition server, ensure that the RSLinx Classic or FactoryTalk Linx gateway configuration is backed up prior to the logic module swap to prevent communication path loss during the replacement procedure.

Strategic Replacement Solutions

The 2711P-RP1X is specifically designed to address the most common failure mode in long-running PanelView Plus 6 installations: logic module degradation without requiring full terminal replacement. This approach delivers significant cost and time advantages over purchasing a complete new HMI assembly. The replacement module retains compatibility with all existing FactoryTalk View ME application files, meaning operators can resume normal production without reloading or reconfiguring the HMI application — a process that can otherwise require several hours of engineering time and a formal change management procedure.

For facilities managing older Rockwell installations where the PanelView Plus 6 has been in service for 7–12 years, the 2711P-RP1X provides a cost-effective path to extend system life by an additional 5–8 years without migrating to a newer HMI platform. This is particularly valuable in industries where control system validation, safety certification, or regulatory compliance makes platform migration prohibitively expensive. By replacing only the logic module, the existing panel cutout, mounting hardware, conduit entries, and operator training investment are fully preserved.

Maintenance planners should consider stocking a minimum of one 2711P-RP1X spare per production line that relies on PanelView Plus 6 terminals. For multi-line facilities with 10 or more HMI nodes, a pooled spare strategy — maintaining 2–3 units in the storeroom — reduces mean time to repair (MTTR) to under 30 minutes for logic module failures, compared to 3–10 business days for emergency procurement from distribution channels. Each unit shipped from TOPNLMS is individually tested, packaged in anti-static protective material, and accompanied by a shipment inspection report.
