Allen-Bradley 2094-BC04-M03-S Kinetix 6500 Upgrade Solution: Seamless Migration from Legacy Servo Systems

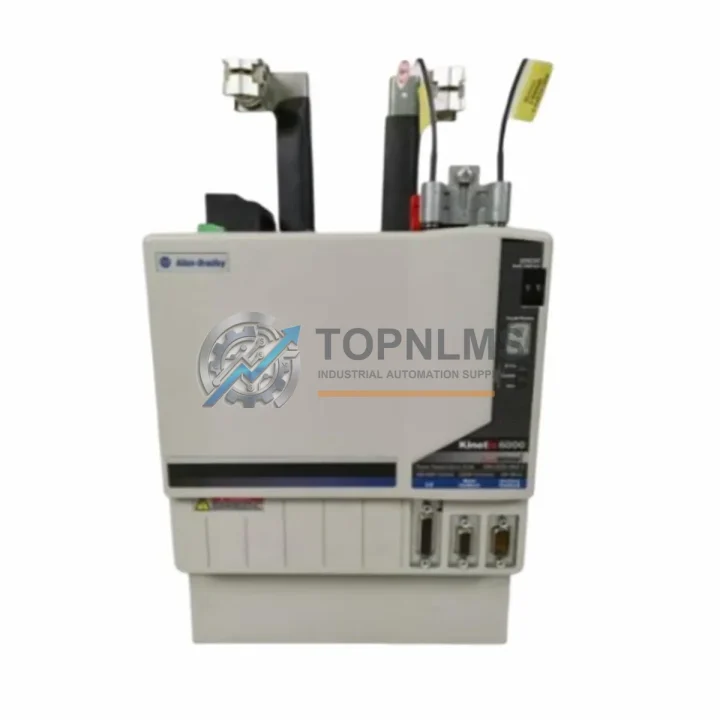

The Allen-Bradley 2094-BC04-M03-S is a Kinetix 6500 Integrated Axis Module (IAM) designed for high-performance multi-axis servo motion control within Rockwell Automation’s integrated motion architecture. As legacy Kinetix 6000 and Kinetix 6200 systems approach end-of-life or become increasingly difficult to source, the 2094-BC04-M03-S represents the proven upgrade path that preserves existing cabinet footprints, power wiring infrastructure, and EtherNet/IP communication topology — dramatically reducing migration risk and unplanned downtime.

This module operates on the 2094 series Bulletin drive rail and integrates directly with the Kinetix 6500 shared-bus architecture. It accepts 400–480 VAC three-phase input and delivers up to 3 kW continuous output power, making it suitable for replacing earlier-generation axis modules in packaging lines, material handling systems, press automation, and precision assembly equipment. The 2094-BC04-M03-S communicates natively over EtherNet/IP using the CIP Motion protocol, enabling direct integration with ControlLogix and CompactLogix controllers — including the 1756-L7x and 1756-L8x processor families — without gateway hardware or protocol converters.

When migrating from a Kinetix 6000 (2094-AC09-M01-S or 2094-AM01) system, engineers frequently encounter three primary compatibility concerns: power rail bus sharing, feedback device wiring, and axis tag remapping in Studio 5000 Logix Designer. The 2094-BC04-M03-S addresses all three. The shared DC bus architecture is preserved across the 2094 platform, meaning existing Bulletin 2094 power rail assemblies and shared-bus capacitor modules remain in service. Feedback wiring for Hiperface, EnDat 2.1, and incremental encoder devices is supported through the standard 15-pin D-sub feedback connector, which is pin-compatible with most Kinetix 6200 axis module feedback harnesses. Axis tag structures in Studio 5000 are standardized across the Kinetix 6500 family, so existing motion programs — including MAOC, MAAT, MAFR, and MASD instructions — require only axis re-association rather than full rewrite.

For facilities running mixed-generation control cabinets, the 2094-BC04-M03-S can coexist on the same EtherNet/IP network as 1756-M02AE motion modules, 2198-Hxxx Kinetix 5700 drives, and 2097-Vxxx Kinetix 350 single-axis drives, allowing phased migration rather than a full cutover. This is particularly valuable in automotive body-in-white, food and beverage filling, and semiconductor handling applications where production continuity is non-negotiable.

Physical installation follows the standard 2094 rail-mount procedure. The module slots into the Bulletin 2094 power rail — such as the 2094-PRF or 2094-XL75S-C16 — and is secured with the integrated latch mechanism. No additional mounting hardware is required. Cabinet depth requirements are identical to the Kinetix 6200 IAM, so existing enclosure layouts and cable management channels remain unchanged. The 24 VDC control power input is sourced from the same Bulletin 2094 control power bus, eliminating the need for additional power supply modules in most retrofit scenarios.

Communication commissioning is performed through the Add-On Profile (AOP) in Studio 5000, where the 2094-BC04-M03-S is recognized as a standard Kinetix 6500 IAM device. The module’s EtherNet/IP address is assigned via rotary switches on the front panel, consistent with other 2094-series devices. Once online, axis tuning parameters — including velocity loop gains, position loop bandwidth, and inertia ratio — can be transferred from the legacy axis configuration using the Logix Designer axis properties export/import function, significantly reducing recommissioning time.

For applications previously using the 2094-BC01-M01-S or 2094-BC02-M02-S in lower-power configurations, the 2094-BC04-M03-S provides a direct power-tier upgrade while maintaining the same physical form factor and bus interface. This makes it an effective solution for capacity expansion projects where motor frame sizes are being increased without full drive cabinet redesign.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 2094-BC04-M03-S typically involves coordinating several interconnected components within the same control cabinet or machine cell. On the power distribution side, the existing 2094-XL75S-C16 Bulletin 2094 power rail and 2094-BSP2 shared-bus capacitor module are retained without modification, preserving the DC bus energy storage and regeneration characteristics of the original system. If the legacy installation used a 2094-PRS7 line interface module for EMC filtering and precharge, this module remains fully compatible with the 2094-BC04-M03-S and does not require replacement.

On the controller side, the 1756-L73 ControlLogix processor with a 1756-EN2T EtherNet/IP communication module provides the recommended platform for CIP Motion coordination. Facilities upgrading from SERCOS-based Kinetix 6200 systems will decommission the 1756-M08SE SERCOS interface module and replace it with direct EtherNet/IP axis connections — eliminating a dedicated motion network card and simplifying the backplane configuration. The 1756-IB16 digital input module and 1756-OB16E digital output module handling machine I/O remain unchanged throughout the migration.

For feedback wiring, most installations using MPL-series servo motors (such as the MPL-B4530F or MPL-B3450F) with standard Kinetix feedback cables can connect directly to the 2094-BC04-M03-S feedback port without re-termination. Where cable lengths or connector types differ, 2090-CFBM7DF-CEAAxx feedback extension cables provide a straightforward solution. If the application requires signal isolation between the drive and a legacy I/O subsystem, a 1492-AIFM8-F-5 analog interface module or equivalent signal conditioner can be inserted without affecting the drive’s CIP Motion performance.

For HMI integration, existing PanelView Plus 7 terminals communicating over EtherNet/IP continue to display axis status, fault codes, and motion state without modification to the HMI application, since the Kinetix 6500 axis tag structure is exposed through standard ControlLogix data tables.

Retrofit Guidance FAQ

Q: Can I reuse existing motor power cables from my Kinetix 6200 installation?
A: Yes. The 2094-BC04-M03-S uses the same Bulletin 2090 motor power cable connector pinout as the Kinetix 6200 IAM. Standard 2090-CPxM7DF-xxAAxx motor power cables connect directly without re-termination, provided cable ratings match the new module’s output current specifications.

Q: Do I need to rewrite my motion program in Studio 5000?
A: No full rewrite is required. Existing MAOC, MAAT, MAFR, MASD, and MAS motion instructions remain valid. You will need to update the axis configuration in the I/O tree to reference the new 2094-BC04-M03-S AOP device type and re-associate axis tags. Tuning parameters can be exported from the legacy axis and imported to the new configuration.

Q: Is the EtherNet/IP address configuration compatible with my existing network topology?
A: Yes. The 2094-BC04-M03-S uses front-panel rotary switches for IP address assignment (last octet), consistent with other 2094-series devices. The module can be assigned the same IP address as the replaced axis module, requiring no changes to the controller’s I/O configuration beyond the device type update.

Q: What happens to the shared DC bus during the module swap?
A: The 2094 power rail and shared-bus capacitor module remain energized only if other axis modules on the same rail remain in service. For a single-axis swap, the rail must be de-energized and locked out per LOTO procedures. The 2094-BC04-M03-S slots into the same rail position as the removed module with no bus reconfiguration required.

Q: Can the 2094-BC04-M03-S operate in a mixed Kinetix 6500 / Kinetix 6200 cabinet?
A: Mixed-generation installations on the same 2094 power rail are not supported by Rockwell Automation. A phased migration approach — replacing all axis modules on a given rail simultaneously — is recommended to maintain bus compatibility and avoid firmware conflicts.

Q: What feedback devices are supported?
A: The module supports Hiperface absolute encoders, EnDat 2.1 absolute encoders, and incremental encoders (A/B/Z quadrature). Stegmann and Heidenhain feedback devices commonly used with MPL and TL-series motors are fully compatible.

Warranty Assurance

Every 2094-BC04-M03-S unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including power-on self-test, communication interface check, and visual inspection for physical integrity. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund at the buyer’s discretion. Our technical support team responds to warranty claims and commissioning inquiries within one business day. Expedited replacement shipment is available for critical production environments where downtime costs are significant.

We maintain standing inventory of the 2094-BC04-M03-S and related Kinetix 6500 components to support rapid fulfillment. Standard orders ship within 1–3 business days from our Xiamen warehouse. International DHL Express and FedEx International Priority options are available for urgent requirements.
