Allen-Bradley 1791-16B0 Ruggedized Block I/O Module

Product Overview

Allen-Bradley 1791-16B0 Ruggedized Block I/O Module: Industrial Resilience for the Harshest Environments

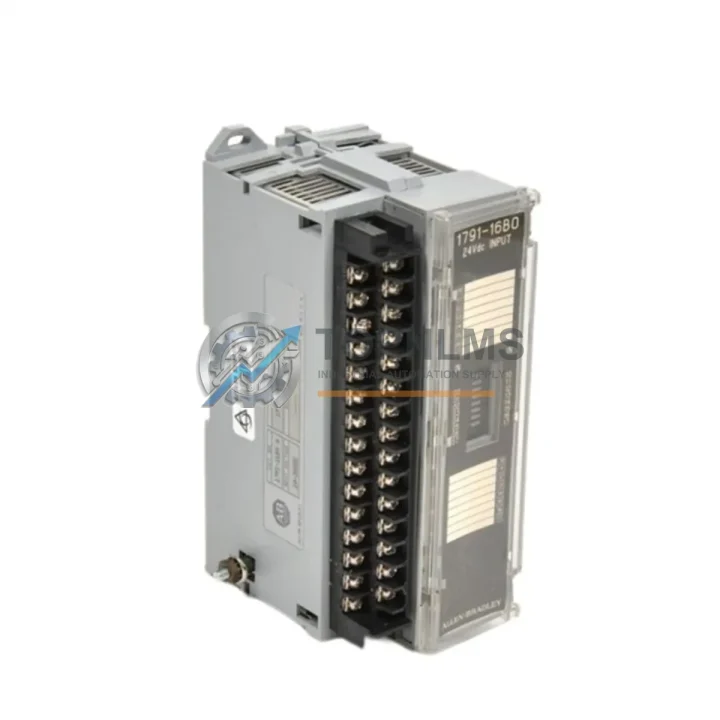

The Allen-Bradley 1791-16B0 is a 16-point, 24V DC discrete Block I/O module engineered for continuous, reliable operation in the most demanding industrial environments. As part of Rockwell Automation’s proven 1791 Series, this module delivers field-hardened performance across high-temperature, high-humidity, dust-laden, and vibration-intensive installations — making it a trusted backbone component in mission-critical control architectures worldwide.

Designed to mount directly in the field rather than inside a control cabinet, the 1791-16B0 eliminates long wire runs and reduces installation complexity. Its rugged housing and sealed terminal block construction provide inherent resistance to particulate ingress, moisture, and mechanical shock — qualities that are non-negotiable in continuous production lines, heavy-process plants, and hazardous-area applications where downtime carries severe operational and safety consequences.

For procurement engineers and MRO specialists sourcing replacement or expansion modules, the 1791-16B0 represents a proven, immediately deployable solution. TOPNLMS maintains dedicated stock of this module, with each unit pre-shipment tested and covered by a 12-month quality warranty — eliminating the risk and lead time associated with sourcing legacy Allen-Bradley hardware through conventional distribution channels.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1791-16B0 is rarely deployed in isolation. In a fully integrated control architecture, it works in concert with a range of complementary Allen-Bradley and Rockwell Automation components to deliver system-wide resilience. The module connects to the control backplane through a 1791-A2B Block I/O adapter, which bridges field-level I/O data to the PLC processor over the Allen-Bradley Remote I/O (RIO) link — a communication protocol well-proven in high-noise industrial environments where electromagnetic interference from variable frequency drives, arc furnaces, and high-current switching equipment is a constant operational reality.

On the controller side, the 1791-16B0 is commonly paired with Allen-Bradley PLC-5 processors (such as the 1785-L40B or 1785-L80B) and SLC 500 series controllers (including the 1747-L553 and 1747-L543), both of which support Remote I/O scanning natively. For modernized architectures, a 1756-DHRIO ControlLogix communication module enables the 1791-16B0 to integrate seamlessly into a ControlLogix or CompactLogix platform without replacing field wiring — protecting the capital investment in existing field installations while enabling migration to current-generation control platforms.

Power integrity is equally critical in harsh-environment deployments. The 1791-16B0 field bus and sensor circuits are typically supplied by an Allen-Bradley 1606-XLP series industrial power supply with active PFC and wide-range AC input, ensuring stable 24V DC delivery even during grid fluctuations common in heavy industrial facilities. Upstream surge protection through 1492-SP series supplementary protectors guards against transient overvoltages on the DC bus — a failure mode that accounts for a significant proportion of discrete I/O module damage in field installations.

For output-side control, the 1791-16B0 is frequently installed alongside 1791-16BB output block modules, forming a matched input/output pair within the same field enclosure. Safety-critical loops may additionally incorporate Allen-Bradley 440R Guardmaster safety relays or 1791DS safety I/O modules to enforce SIL-rated interlocks without requiring separate safety PLCs. Terminal connectivity is managed through 1492-CABLE series pre-wired interface cables and 1492-IFM interface modules, which reduce field wiring errors and accelerate commissioning in dense I/O installations where technician access time is limited and wiring mistakes carry serious safety implications.

Application in Critical Infrastructure

The Allen-Bradley 1791-16B0 has established a long service record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities — including wellhead control panels, pipeline SCADA nodes, and compressor station automation — the module’s IP67-rated sealed housing and wide operating temperature range allow direct field installation without the cost of pressurized enclosures. Its resistance to hydrogen sulfide-laden atmospheres and hydrocarbon vapors makes it a preferred discrete I/O solution where conventional open-frame modules would degrade rapidly.

In mining and mineral processing operations, the 1791-16B0 monitors conveyor belt status, crusher interlock signals, and ventilation fan feedback in environments saturated with coal dust, silica particulate, and high-frequency mechanical vibration. The module’s IEC 68-2-6 vibration compliance ensures signal integrity is maintained even when mounted on or near rotating equipment foundations — a deployment scenario that would render standard rack-mount I/O modules unreliable within months.

Power generation and electrical utilities deploy the 1791-16B0 in substation automation, turbine control panels, and switchgear monitoring applications where electromagnetic interference from high-voltage switching events is a constant challenge. The module’s optically isolated inputs provide galvanic separation between field signals and the control bus, suppressing common-mode noise that would otherwise corrupt discrete state data and trigger spurious safety shutdowns.

In water and wastewater treatment plants, the 1791-16B0 manages pump run/fault status, valve position feedback, and level switch inputs across geographically distributed lift stations and treatment cells — environments characterized by high humidity, chemical vapors, and wide ambient temperature swings. Its sealed construction eliminates the need for climate-controlled enclosures at remote field stations, reducing both capital and maintenance costs significantly over the asset lifecycle.

Steel mills, aluminum smelters, and heavy metallurgical plants rely on the 1791-16B0 for furnace interlock monitoring, rolling mill position sensing, and ladle transfer automation — applications where radiated heat, molten metal splash risk, and intense electromagnetic fields from arc furnaces demand the highest levels of module robustness and signal reliability. In these environments, the cost of a single unplanned shutdown far exceeds the total procurement cost of a complete spare module inventory.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the Allen-Bradley 1791-16B0?
Every 1791-16B0 unit shipped by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund — no lengthy RMA bureaucracy. Our warranty terms are documented and provided with each shipment, giving procurement teams a clear, auditable quality commitment.

Q2: How is each unit tested before shipment?
All 1791-16B0 modules undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, point-by-point I/O functional verification using a dedicated test fixture, and communication bus integrity check against the Allen-Bradley RIO protocol specification. Units that do not pass all test stages are quarantined and not shipped. A test report is available upon request for critical procurement applications where incoming inspection documentation is required.

Q3: Is the 1791-16B0 compatible with current ControlLogix and CompactLogix platforms?
Yes — with the appropriate adapter. The 1791-16B0 communicates over the Allen-Bradley Remote I/O (RIO) protocol. When paired with a 1756-DHRIO or 1747-SN Remote I/O Scanner, it integrates fully into ControlLogix and SLC 500 architectures respectively. TOPNLMS technical support can advise on adapter selection and configuration for your specific control system topology, including mixed-generation architectures where legacy and current-platform controllers share the same I/O network.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1791-16B0?
Absolutely. TOPNLMS maintains dedicated inventory of legacy and current-production Allen-Bradley modules to support ongoing MRO (Maintenance, Repair & Operations) procurement programs. We understand that industrial facilities cannot afford supply chain gaps for critical spare parts. Blanket purchase orders, scheduled releases, and priority allocation agreements are available for qualified customers. Contact our team at [email protected] to discuss your long-term supply requirements.
