Allen-Bradley 1785-L80E Replacement for PLC-5 Enhanced Series

Product Overview

Allen-Bradley 1785-L80E Replacement for PLC-5 Enhanced Series: Smooth Transition & Legacy System Compatibility

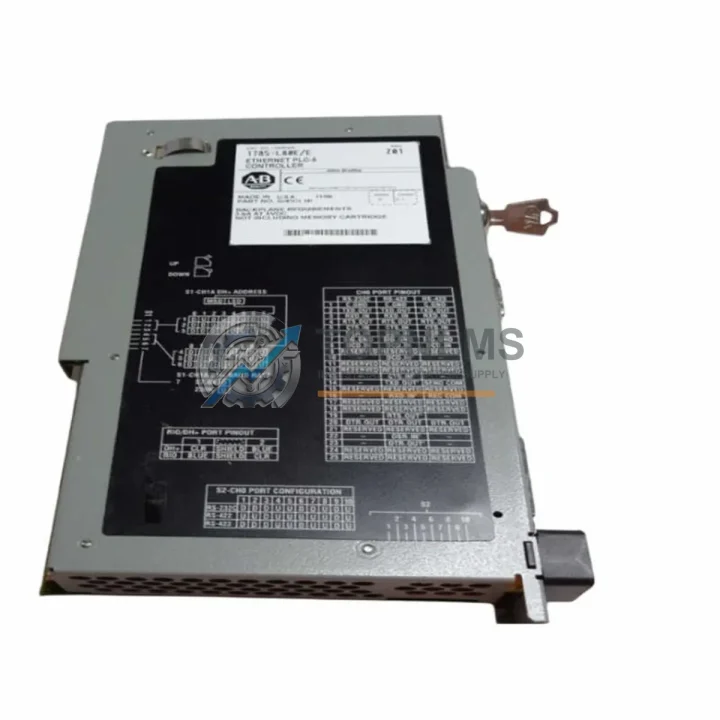

The Allen-Bradley 1785-L80E is a PLC-5 Enhanced Series programmable logic controller featuring an integrated Ethernet/IP communication port and 80K words of user memory. As Rockwell Automation has progressively phased out the PLC-5 platform, facilities running legacy 1785-series controllers now face increasing pressure to source verified replacement units or execute a structured migration to a supported control architecture. TOPNLMS supplies the 1785-L80E as a direct replacement module — tested, inspected, and backed by a 12-month warranty — enabling your engineering team to restore production continuity without committing to a full system redesign.

Whether your plant is operating a standalone PLC-5 rack or integrating the 1785-L80E into a larger DH+ or Ethernet/IP network alongside other Rockwell controllers, this unit maintains full backward compatibility with existing ladder logic programs developed in RSLogix 5. The 80K word memory capacity supports complex process control applications, and the onboard Ethernet port allows direct connection to supervisory SCADA systems, historian servers, or HMI panels without requiring an additional communication bridge module. For facilities replacing a 1785-L40E, 1785-L60E, or 1785-L80B, the 1785-L80E is a direct drop-in upgrade with no I/O rewiring, no chassis modification, and no program restructuring required.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1785-L80E replacement or migration typically involves more than swapping the processor module. In most field installations, the controller operates within a populated 1771-A4B or 1771-A2B I/O chassis alongside discrete and analog I/O modules such as the 1771-OBD DC output module and 1771-IFE analog input module, both of which remain fully compatible and do not require replacement during a processor swap. The existing 1771-series power supply — commonly a 1771-P4S — continues to provide regulated backplane voltage without modification, preserving the control cabinet layout and minimizing downtime during the changeover.

For facilities that rely on DH+ network communication to connect multiple PLC-5 nodes or to interface with legacy operator terminals, the existing DH+ cabling and network topology are fully preserved. Where Ethernet/IP connectivity is being introduced for the first time via the 1785-L80E’s onboard port, a managed industrial Ethernet switch is typically added to the control cabinet to segment PLC traffic from the plant network. HMI panels — including PanelView 1000 or PanelView Plus 6 units — can communicate with the 1785-L80E via DH+ or Ethernet/IP depending on the terminal model and firmware version, requiring only a communication path update in the HMI project rather than a full screen rebuild.

When the migration scope extends beyond a single processor replacement, engineering teams frequently address the 1785-L80E alongside related components: the 1785-ENET Ethernet interface module for older PLC-5 units lacking onboard Ethernet, 1784-U2DHP USB-to-DH+ programming cables for RSLogix 5 connectivity from modern laptops, and 1771-SDN DeviceNet scanner modules where field device networks are present. Signal conditioning requirements are evaluated on a case-by-case basis; where legacy analog signals require isolation before entering the 1771 chassis, DIN-rail-mounted signal isolators are installed in the cabinet without affecting the PLC program structure.

For sites planning a phased migration toward the ControlLogix or CompactLogix platform, the 1785-L80E serves as a stable interim solution, maintaining production uptime while the new 1756-L85E ControlLogix controller and associated 1756-EN2T Ethernet/IP communication modules are configured and validated in parallel. This approach eliminates the need for a hard cutover and allows program conversion from RSLogix 5 to Studio 5000 Logix Designer to proceed at a controlled pace, reducing commissioning risk and protecting existing capital investment in the 1771 I/O infrastructure.

Retrofit Guidance FAQ

Q: Can I replace a 1785-L60E or 1785-L40E with the 1785-L80E without modifying my I/O wiring?
A: Yes. The 1785-L80E occupies the same single slot in the 1771 chassis and uses the same I/O addressing structure. All existing wiring arms and I/O modules remain in place. The only change required is uploading the existing program to the new processor via RSLogix 5.

Q: Is my existing RSLogix 5 program compatible with the 1785-L80E?
A: Yes. The 1785-L80E is fully compatible with programs developed in RSLogix 5. No instruction set changes are required. If your program was developed for a smaller memory processor, the additional 80K word capacity is available immediately without configuration changes.

Q: How do I connect my programming laptop to the 1785-L80E?
A: You can connect via the onboard Ethernet port using RSLinx Classic with an Ethernet/IP driver, or via the DH+ port using a 1784-U2DHP USB-to-DH+ cable. The RS-232 port is also available for direct serial connection using a standard DF1 driver configuration in RSLinx.

Q: Does the 1785-L80E fit in my existing 1771 chassis without modification?
A: Yes. The 1785-L80E is a standard single-slot PLC-5 processor module. It is physically compatible with all 1771-A series chassis including the 1771-A1B, A2B, A3B, and A4B. No chassis modification, slot adapter, or additional hardware is required.

Q: What communication protocols does the 1785-L80E support?
A: The 1785-L80E supports Ethernet/IP (10/100 Mbps), Data Highway Plus (DH+), and RS-232 DF1. This allows simultaneous connectivity to Ethernet-based SCADA or HMI systems and legacy DH+ networks without requiring a separate communication bridge such as a 1761-NET-ENI.

Q: Can the 1785-L80E communicate with ControlLogix or CompactLogix controllers on the same Ethernet/IP network?
A: Yes. The 1785-L80E supports Ethernet/IP messaging, allowing it to exchange data with ControlLogix 1756-series and CompactLogix 1769-series controllers using MSG instructions. This is commonly used during phased migration projects where both platforms operate simultaneously.

Q: What is the physical installation space requirement for the 1785-L80E in the control cabinet?
A: The 1785-L80E occupies a single slot in the 1771 chassis. No additional DIN-rail space, mounting bracket, or cabinet modification is required. The existing chassis cutout, cable routing, and power supply arrangement are fully retained.

Warranty Assurance

Every 1785-L80E unit supplied by TOPNLMS undergoes a pre-shipment functional inspection covering power-on self-test, memory verification, communication port continuity, and firmware version confirmation. Units are shipped in anti-static packaging with appropriate cushioning for international freight.

All units are covered by a 12-month warranty from the date of shipment. If a unit exhibits a verified functional defect within the warranty period, TOPNLMS will arrange a replacement dispatch or issue a credit note based on the buyer’s preference. Warranty claims are processed within 3 business days of defect confirmation. Our technical team is available to assist with installation verification, communication configuration, and basic commissioning guidance via email or phone during the warranty period.

For procurement teams managing MRO inventory or executing emergency replacements, TOPNLMS maintains stock of the 1785-L80E and related PLC-5 Enhanced Series components. Standard lead time for in-stock units is 3–5 business days for international shipment via DHL Express or FedEx International Priority. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

For volume inquiries, approved vendor qualification, or technical pre-sales consultation, contact our industrial automation team directly.
