Allen-Bradley 1784-KTX Replacement/Upgrade Solution

Product Overview

Allen-Bradley 1784-KTX Replacement/Upgrade Solution: Seamless Transition from Legacy DH+ & RIO Systems

The Allen-Bradley 1784-KTX ISA Communication Card has served as a cornerstone component in countless industrial control architectures built around the Data Highway Plus (DH+) and Remote I/O (RIO) network protocols. As legacy ISA-slot workstations reach end-of-life and plant engineers face the challenge of migrating aging SCADA and PLC programming environments to modern hardware platforms, sourcing a verified, tested replacement 1784-KTX has become a critical procurement priority. TOPNLMS maintains ready stock of the 1784-KTX to support your retrofit, upgrade, or emergency replacement requirements — minimizing unplanned downtime and protecting your existing control system investment.

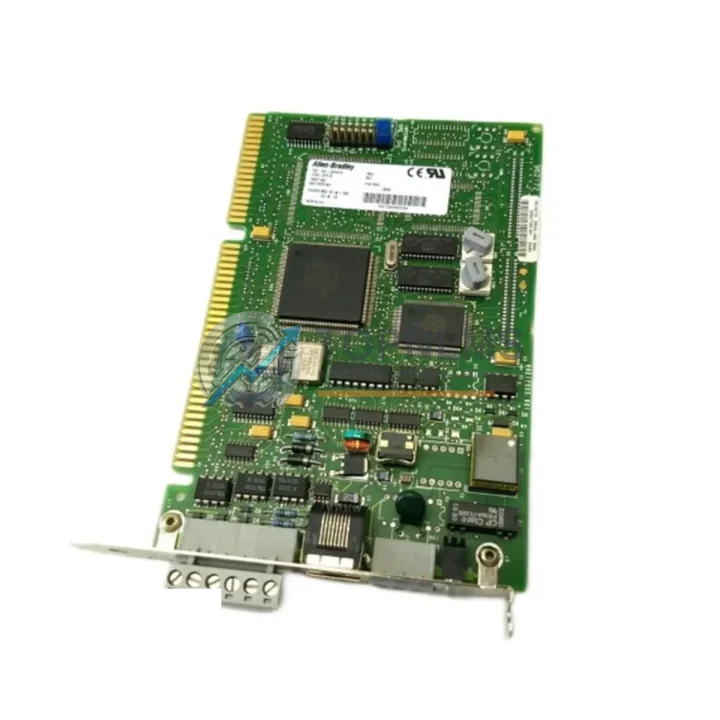

The 1784-KTX is a full-length ISA bus card designed to provide a direct communication interface between a PC-based programming or supervisory workstation and Allen-Bradley PLC-5, SLC 500, and MicroLogix controller families operating on DH+ or RIO networks. It supports data rates of 57.6 Kbps, 115.2 Kbps, and 230.4 Kbps on DH+, and is fully compatible with RSLinx Classic and RSLogix 5 / RSLogix 500 programming environments. For facilities still operating PLC-5/20, PLC-5/40, or PLC-5/60 processors on a DH+ backbone, the 1784-KTX remains the most direct and lowest-risk communication path — requiring no protocol conversion, no gateway configuration, and no changes to existing ladder logic programs.

Migration projects that involve replacing an aging 1784-KTX typically arise in one of three scenarios: the host PC’s ISA slot has failed; the card itself has developed intermittent communication faults causing RSLinx driver dropouts; or the facility is consolidating programming workstations and needs a verified spare to maintain network access during the transition period. In all three cases, a direct 1784-KTX replacement is the fastest path to restoring full DH+ or RIO network connectivity without touching the controller configuration, I/O mapping, or field wiring.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1784-KTX replacement or system migration rarely involves a single component in isolation. In practice, the DH+ and RIO network environment surrounding the 1784-KTX card encompasses a range of interconnected hardware that may require simultaneous attention during a retrofit or modernization project.

For facilities where the host PC no longer has available ISA slots — a common situation when upgrading from Windows XP-era workstations to current hardware — the 1784-U2DHP USB-to-DH+ interface offers a direct migration path, preserving the existing DH+ network topology and RSLinx Classic driver configuration without requiring any changes to the PLC-5 or SLC 500 controller programs. Similarly, the 1784-PCMK PCMCIA card provides an equivalent solution for laptop-based programming environments still in field service.

On the controller side, plants running PLC-5/40 or PLC-5/60 processors with multiple DH+ nodes will often need to verify the integrity of their 1785-L40B or 1785-L60B processor modules alongside the communication card replacement. The DH+ port on these processors shares the same network addressing scheme as the 1784-KTX, and a card swap is an appropriate moment to audit node address conflicts and cable termination resistors across the entire DH+ segment.

For Remote I/O applications, the 1784-KTX interfaces directly with 1771-ASB remote I/O adapter modules mounted in 1771 I/O chassis. During a card replacement, it is advisable to inspect the 1771-P4S or 1771-P7 power supply modules in the remote chassis, as power supply degradation is a common co-failure mode in aging RIO installations. If the remote I/O chassis itself is being retired as part of a broader modernization, 1794 FLEX I/O modules with EtherNet/IP adapters such as the 1794-AENT represent the standard migration target, allowing the field wiring to be preserved while the backplane and communication architecture is updated.

In control cabinet environments where the 1784-KTX workstation PC is co-located with the PLC rack, the 1756-DHRIO ControlLogix communication module provides a long-term upgrade path for facilities planning a full migration from PLC-5 to ControlLogix, enabling the existing DH+ and RIO field devices to remain operational during a phased cutover. For inter-panel communication, 1747-SDN DeviceNet scanner modules and 1756-DNB ControlLogix DeviceNet bridge modules are frequently encountered in the same control system generation and may require coordinated replacement scheduling.

Retrofit Guidance FAQ

Q: Can I reuse my existing DH+ cable and termination resistors after installing a replacement 1784-KTX?
A: Yes. The 1784-KTX uses a standard DB-9 connector for DH+ and the cable pinout is identical across all 1784-KTX revisions. Existing Belden 9463 or equivalent shielded twisted-pair cable, termination resistors (82Ω at each end of the DH+ segment), and node address settings on the card’s DIP switches are all preserved. No re-termination or re-cabling is required for a direct card swap.

Q: Do I need to reconfigure RSLinx Classic after replacing the card?
A: In most cases, no. If the replacement card is configured to the same DH+ node address (via DIP switch) and the RSLinx KTX driver is already installed, RSLinx will re-detect the card on the next service restart. If the driver was previously uninstalled, reinstall the RSLinx Classic KTX driver from your existing RSLinx installation media and configure the driver to match the card’s node address and IRQ/DMA settings.

Q: Is the 1784-KTX compatible with Windows 10 or Windows 11 workstations?
A: The 1784-KTX requires a physical ISA bus slot, which is not present in any PC manufactured after approximately 2003. For modern workstations, the recommended replacement is the 1784-U2DHP (USB to DH+) or the 1784-PCMK (PCMCIA). Both devices are supported by RSLinx Classic on Windows 10 and Windows 11 (64-bit) with the appropriate driver version.

Q: Will replacing the 1784-KTX require any changes to my PLC-5 or SLC 500 ladder logic programs?
A: No. The 1784-KTX is a communication interface only and does not affect the controller’s program memory, I/O configuration, or data table. Your existing RSLogix 5 or RSLogix 500 project files, processor files (.RSS / .RSP), and all associated data table mappings remain unchanged.

Q: What is the physical installation clearance requirement for the 1784-KTX in a PC chassis?
A: The 1784-KTX is a full-length ISA card (approximately 340mm / 13.4 inches). Ensure the host PC chassis provides sufficient clearance for a full-length card. Half-length ISA chassis are not compatible. The card requires one ISA slot and does not occupy adjacent slots.

Q: Can the 1784-KTX communicate with both DH+ and RIO simultaneously?
A: The 1784-KTX supports both DH+ and RIO protocols, but operates on one network type per driver instance in RSLinx. If simultaneous DH+ and RIO access is required from a single workstation, two 1784-KTX cards (or one 1784-KTX plus one 1784-KTXD dual-port variant) can be installed in the same PC, each configured for a separate network.

Warranty Assurance

Every 1784-KTX unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional outgoing inspection that includes DH+ communication verification, ISA bus interface testing, and visual inspection for connector integrity and PCB condition. An inspection report is available upon request.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund — whichever the customer prefers. Our standard response time for warranty claims is within 2 business days of receiving the defective unit. Customers are responsible for return shipping costs; TOPNLMS covers outbound replacement shipping.

For urgent replacement requirements where downtime cost is a primary concern, TOPNLMS offers expedited shipping via DHL Express, FedEx International Priority, and SF Express international services from our Xiamen warehouse. Most in-stock orders are dispatched within 24 hours of payment confirmation. Tracking information is provided automatically upon dispatch.

TOPNLMS specializes in legacy and current-generation industrial automation components for the global MRO and system integration market. Our inventory is sourced through verified supply channels and every unit is individually inspected before listing. We serve OEMs, system integrators, plant maintenance teams, and procurement departments across manufacturing, energy, water treatment, and process industries.
