Allen-Bradley 1770-XYC Replacement Solution for PLC-5: Seamless Legacy System Upgrade

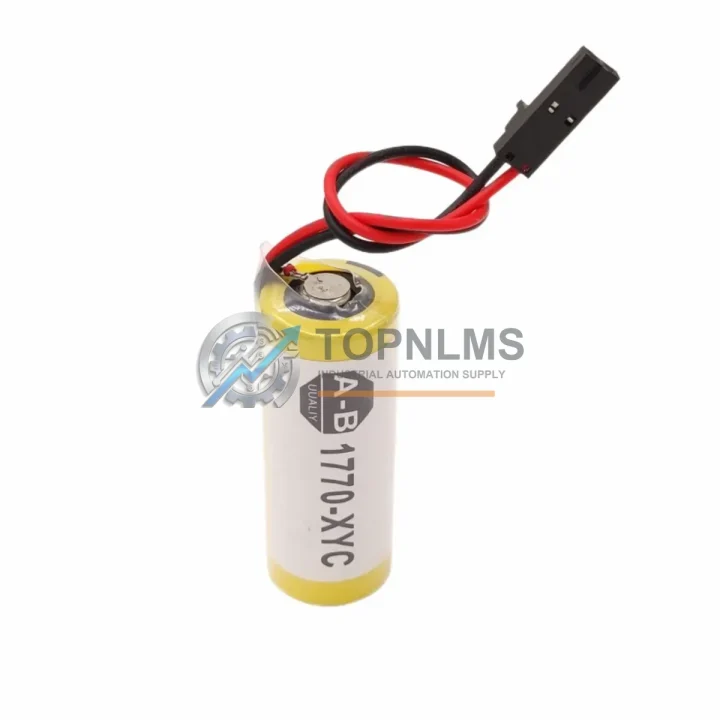

The Allen-Bradley 1770-XYC is a lithium battery module designed to maintain CMOS RAM data retention in the PLC-5 programmable controller family. As PLC-5 systems age and original batteries approach end-of-life, unplanned CMOS data loss can result in complete program loss, extended downtime, and costly re-commissioning. TOPNLMS supplies the 1770-XYC as a verified replacement module, enabling maintenance teams to execute a smooth, low-risk battery swap without disrupting the broader control architecture.

The PLC-5 platform remains deeply embedded in legacy process control, discrete manufacturing, and batch automation environments worldwide. Many facilities continue to operate 1785-L40B, 1785-L60B, and 1785-L80B processors alongside legacy I/O racks, making reliable battery backup a critical maintenance priority. The 1770-XYC slots directly into the PLC-5 processor chassis without requiring firmware changes, ladder logic modifications, or rewiring of field I/O terminals. Replacement is performed with the processor in a controlled power-down state, and the procedure is fully documented in Rockwell Automation publication 1770-IN009.

For facilities planning a broader migration from PLC-5 to ControlLogix or CompactLogix platforms, the 1770-XYC replacement provides a cost-effective bridge strategy. Rather than forcing an immediate full cutover, replacing the battery extends the operational life of the existing PLC-5 rack while migration planning, I/O mapping, and program conversion are completed in parallel. This approach minimizes production risk and allows engineering teams to validate the new 1756-L85E or 1769-L36ERM processor alongside the legacy system before final switchover.

Compatibility Comparison Table

Seamless Upgrade Solutions

A 1770-XYC battery replacement is rarely an isolated action. In most PLC-5 maintenance or migration scenarios, the battery swap is part of a broader effort to stabilize or modernize the control system. During the same maintenance window, engineers frequently address adjacent components to reduce future downtime risk.

Processor health is the first consideration. If the 1785-L40B or 1785-L60B processor has accumulated significant runtime hours, a spare processor module should be staged alongside the battery replacement. For sites already planning migration, a 1756-L85E ControlLogix processor with a 1756-A17 chassis provides the target platform, and the 1770-XYC battery replacement buys the time needed to complete RSLogix 5000 program conversion from the legacy RSLogix 5 project files.

Communication infrastructure is the next priority. PLC-5 systems commonly use 1784-KTX or 1784-PCMK Data Highway Plus cards for programming and SCADA connectivity. During migration, a 1756-ENBT or 1756-EN2T EtherNet/IP communication module in the new ControlLogix rack allows parallel operation, enabling the SCADA system to communicate with both the legacy PLC-5 and the new controller simultaneously during the cutover period.

I/O continuity is critical for minimizing field rewiring. Many migration projects retain the existing 1771 I/O chassis and field wiring by using a 1771-ASB remote I/O adapter, connecting the legacy I/O rack to the new ControlLogix system via the 1756-DHRIO module. This approach eliminates the need to rewire hundreds of field terminals and allows the new processor to read and write to the existing 1771-IFE analog input modules and 1771-OFE analog output modules without modification.

Power supply integrity should also be verified during any PLC-5 maintenance event. The 1771-P4S or 1771-P7 power supply modules that feed the 1771 I/O chassis are age-sensitive components. Staging a spare power supply alongside the 1770-XYC battery ensures that a single component failure does not cascade into a full system outage. For the new ControlLogix rack, the 1756-PA75 or 1756-PB75 power supply modules are the standard selection.

Finally, programming cable and software access must be confirmed before any battery replacement or migration work begins. A 1747-UIC USB-to-DH485 interface cable or a 1784-U2DHP USB-to-DH+ adapter is required to connect a programming workstation running RSLogix 5 to the PLC-5 processor for program backup and verification before and after the battery swap.

Retrofit Guidance FAQ

Q: Will replacing the 1770-XYC battery erase my PLC-5 program?
A: If the replacement is performed correctly with the processor powered down and the new battery installed within the specified time window (typically under 30 seconds for hot-swap procedures where supported, or immediately after power-down for cold-swap), CMOS RAM contents are preserved. Always perform a full program backup to a programming workstation via RSLogix 5 before beginning any battery replacement procedure.

Q: Does the 1770-XYC replacement affect DH+ or ControlNet communication?
A: No. The 1770-XYC is a passive backup battery with no active role in communication. DH+, DH-485, ControlNet, and any Ethernet/IP bridge configurations remain unaffected by the battery replacement.

Q: Can I replace the 1770-XYC without removing the processor from the chassis?
A: Yes. The 1770-XYC is accessible on the front face of the PLC-5 processor module and can be replaced in-chassis. Refer to Rockwell Automation publication 1770-IN009 for the exact procedure and safety precautions.

Q: How do I know when the 1770-XYC battery needs replacement?
A: The PLC-5 processor generates a low-battery fault (typically fault code S:11/10 or equivalent depending on firmware version) when battery voltage drops below threshold. Proactive replacement is recommended every 3–5 years regardless of fault status, particularly in critical process environments.

Q: Is the TOPNLMS 1770-XYC compatible with all PLC-5 processor variants?
A: Yes. The 1770-XYC is compatible with the full PLC-5 processor family including the 5/11, 5/20, 5/30, 5/40, 5/60, and 5/80 variants, as well as the PLC-5/VME and PLC-5/250 where applicable. If you have a specific processor catalog number, contact TOPNLMS for confirmation before ordering.

Q: What physical space is required for installation?
A: The 1770-XYC occupies the dedicated battery compartment on the PLC-5 processor module front panel. No additional rack slots, DIN rail space, or cabinet modifications are required.

Warranty Assurance

Every 1770-XYC supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including voltage output confirmation and physical inspection for connector integrity and labeling accuracy. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement dispatch within 3 business days of claim confirmation. Customers are not required to return the defective unit before a replacement is shipped for orders with documented fault evidence. Our after-sales team responds to warranty inquiries within 24 hours on business days.

For procurement teams, TOPNLMS maintains buffer stock of the 1770-XYC to support urgent maintenance requirements. Standard lead time is 3–7 business days for international shipments via DHL Express or FedEx International Priority. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

TOPNLMS serves industrial maintenance teams, MRO procurement departments, and system integrators across Asia-Pacific, Europe, and the Americas. All transactions are supported by commercial invoice, packing list, and certificate of conformance documentation suitable for customs clearance and internal procurement audit requirements.
