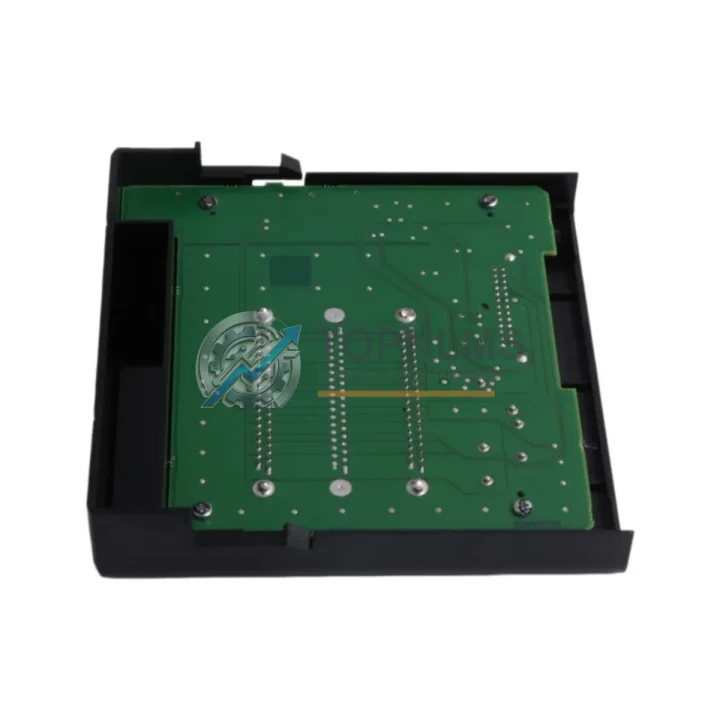

Allen-Bradley 1756-PSCA2 Replacement for ControlLogix 1756

Product Overview

Allen-Bradley 1756-PSCA2 Replacement for ControlLogix 1756: Smooth Transition & Legacy System Compatibility

When your Allen-Bradley 1756-PSCA2 ControlLogix Power Supply Chassis Adapter reaches end-of-life or becomes unavailable through standard distribution channels, production continuity depends on sourcing a verified replacement that preserves your existing wiring, rack architecture, and power distribution topology. The 1756-PSCA2 serves as the critical interface between the external power supply and the 1756-series chassis backplane, and any interruption to this component can cascade into full system downtime across your ControlLogix platform.

TOPNLMS supplies tested, ready-to-ship 1756-PSCA2 replacement units specifically for engineers and procurement teams managing ControlLogix 1756 system upgrades, emergency replacements, and planned retrofit projects. Each unit is inspected prior to dispatch and backed by a 12-month warranty, giving your maintenance team the confidence to proceed with installation without extended lead-time risk.

The 1756-PSCA2 is designed to mount directly into the 1756-series chassis — including the 4-slot 1756-A4, 7-slot 1756-A7, 10-slot 1756-A10, and 13-slot 1756-A13 — without modification to the chassis backplane or existing module slot assignments. Engineers migrating from older ControlLogix configurations or replacing failed adapters in live production environments will find that the physical footprint, connector pinout, and power rail interface remain fully consistent with the original specification.

In multi-chassis ControlLogix architectures, the 1756-PSCA2 works in conjunction with the primary power supply — such as the 1756-PA75 or 1756-PB75 — to distribute regulated DC power across the chassis backplane. When replacing the adapter in a system that also includes communication modules such as the 1756-EN2T EtherNet/IP bridge or the 1756-DHRIO Data Highway Plus/Remote I/O module, no changes to the communication configuration or network addressing are required. The adapter replacement is transparent to the Logix 5000 controller program running on the 1756-L71 or 1756-L83E processor.

For sites transitioning from legacy SLC 500 or PLC-5 platforms to ControlLogix, the 1756-PSCA2 is a standard component in the new chassis assembly. During such migrations, the power supply adapter is typically installed alongside the 1756-PA75 AC power supply, the target ControlLogix processor, and the required I/O modules — including analog input modules such as the 1756-IF16 or digital output modules such as the 1756-OB16I. The adapter ensures that all modules in the chassis receive stable, conditioned power from the external supply without requiring additional power conditioning hardware.

Field engineers performing hot-swap or scheduled maintenance replacements should note that the 1756-PSCA2 does not require firmware updates and does not store configuration data. Replacement is a purely mechanical and electrical operation: remove the existing adapter, seat the replacement unit into the chassis power supply bay, and restore power. No RSLogix 5000 or Studio 5000 Logix Designer project changes are required. This significantly reduces commissioning time and eliminates the risk of inadvertent program modification during the replacement procedure.

For control cabinets with constrained DIN rail or panel space, the 1756-PSCA2 maintains the same physical envelope as the original, ensuring that adjacent components — including terminal blocks, 24 VDC power supplies, and signal isolators — do not need to be relocated. This is particularly relevant in retrofit projects where the control cabinet was originally designed around the 1756-series chassis dimensions and cannot be easily expanded.

TOPNLMS maintains stock of the 1756-PSCA2 and related ControlLogix chassis components to support both emergency procurement and planned maintenance schedules. Orders are processed and dispatched from Xiamen, with international shipping available to support global plant operations. Each shipment includes documentation confirming the part number, inspection status, and warranty terms.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete ControlLogix chassis replacement or upgrade typically involves more than a single component. When sourcing the 1756-PSCA2, procurement teams frequently require companion components to complete the chassis assembly or address adjacent failures. The 1756-PA75 AC power supply is the most common pairing, providing the regulated DC output that the 1756-PSCA2 adapter distributes to the backplane. For DC-powered installations — common in battery-backed or solar-assisted control systems — the 1756-PB75 DC input power supply serves the same role.

In systems where the chassis also houses communication infrastructure, the 1756-EN2T EtherNet/IP communication module is frequently stocked alongside the power supply adapter to ensure that network connectivity is restored in full during a chassis rebuild. Sites running legacy Data Highway Plus networks may also require the 1756-DHRIO module to maintain connectivity to older remote I/O drops during the transition period.

I/O module continuity is equally important during a chassis replacement. Digital I/O modules such as the 1756-IB16 (16-point 24 VDC input) and 1756-OB16I (16-point isolated output) are commonly reinstalled into the replacement chassis without rewiring, provided the terminal block wiring is preserved. Analog signal chains using the 1756-IF16 analog input module similarly transfer without recalibration when the module is reseated into an equivalent slot position.

For sites that require signal isolation between field devices and the ControlLogix I/O modules — particularly in high-noise industrial environments — DIN-rail-mounted signal isolators are often installed in the same control cabinet during the retrofit. These isolators protect the new chassis components from transient voltages and ground loops that may have contributed to the original component failure.

Programming cable access is also a consideration during commissioning. The 1756-CP3 serial programming cable or a USB-to-serial adapter compatible with Studio 5000 Logix Designer may be required if the replacement chassis does not have an active EtherNet/IP connection at the time of initial configuration verification.

Retrofit Guidance FAQ

Q: Does replacing the 1756-PSCA2 require any changes to the Logix 5000 or Studio 5000 project?
A: No. The 1756-PSCA2 is a passive power distribution adapter with no firmware or configuration data. Replacing it does not affect the controller program, I/O configuration, or network settings.

Q: Is the replacement unit compatible with both the 1756-PA75 (AC) and 1756-PB75 (DC) power supplies?
A: Yes. The 1756-PSCA2 is compatible with both AC and DC input power supplies in the 1756-series lineup. Verify the power supply model installed in your chassis before ordering to confirm the correct supply type is also available if needed.

Q: Will the replacement affect EtherNet/IP or Data Highway Plus communication modules in the same chassis?
A: No. Communication modules such as the 1756-EN2T or 1756-DHRIO receive power through the backplane and are not affected by the adapter replacement. Network addresses and module configurations are retained in the modules themselves.

Q: Can the 1756-PSCA2 be replaced while other modules remain in the chassis?
A: The chassis must be powered down before replacing the adapter. Once power is removed, other modules can remain in their slots. After the replacement adapter is seated and power is restored, the controller will resume normal operation.

Q: Is the physical footprint identical to the original, and will it fit in my existing control cabinet?
A: Yes. The replacement unit matches the OEM physical envelope of the 1756-PSCA2, ensuring compatibility with existing chassis bay dimensions and control cabinet layouts without requiring panel modifications.

Q: What if I am migrating from a SLC 500 or PLC-5 system to ControlLogix?
A: The 1756-PSCA2 is a standard component in any new ControlLogix chassis assembly. During migration, it is installed as part of the new chassis build alongside the processor, power supply, and I/O modules. No special adaptation is required.

Warranty Assurance

Every 1756-PSCA2 replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection to verify mechanical integrity, connector condition, and backplane interface compliance. Units that do not meet inspection criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or a full refund, subject to inspection of the returned item. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution confirmation. Replacement units for warranty claims are prioritized in our dispatch queue to minimize customer downtime.

For procurement teams requiring documentation, TOPNLMS can provide inspection records, part number confirmation, and shipping documentation upon request. All orders are traceable from dispatch to delivery, supporting your internal procurement audit requirements.

To place an order, request a quotation, or discuss bulk procurement terms, contact our sales team directly:

📧 [email protected]
📞 +86 18359293191
