Allen-Bradley 1756-L84E Ruggedized PAC for Harsh Environments

Product Overview

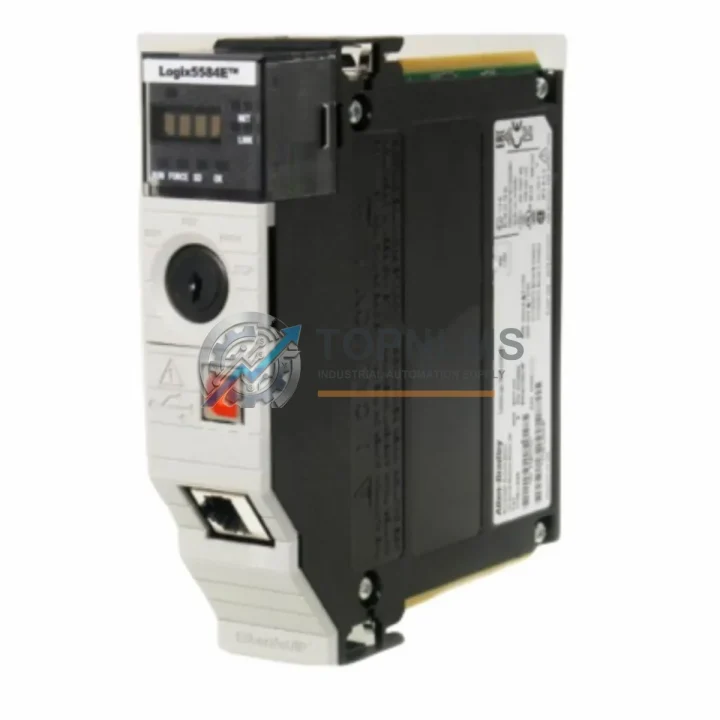

Allen-Bradley 1756-L84E Ruggedized PAC for Harsh Environments

The Allen-Bradley 1756-L84E is a high-performance Programmable Automation Controller (PAC) from Rockwell Automation’s ControlLogix 1756 platform — one of the most trusted CPU architectures deployed across global heavy industry. Engineered for continuous operation in demanding industrial environments, the 1756-L84E delivers 4 MB of user memory, native dual-port EtherNet/IP connectivity, and the deterministic processing power required to manage complex, multi-axis control tasks without compromise. Whether installed in a climate-controlled control room or a dust-laden, vibration-intensive production floor, this controller is built to sustain mission-critical automation with the reliability that industrial operators depend on.

In high-temperature environments such as steel mills, glass manufacturing lines, and cement plants, thermal stability is non-negotiable. The 1756-L84E operates reliably across an extended temperature range of 0°C to 60°C, maintaining deterministic scan times even when ambient conditions fluctuate. Its robust backplane interface within the 1756 chassis ensures that I/O modules, communication modules, and power supply units remain synchronized under load — a critical requirement in continuous process industries where even a millisecond of unplanned downtime translates to significant production loss.

In high-humidity and corrosive atmospheres — common in water treatment facilities, chemical processing plants, and coastal offshore installations — the ControlLogix architecture supports redundant power configurations through the 1756-PA75 and 1756-PB75 power supply modules. Paired with the 1756-L84E, these power modules ensure the controller remains energized and operational even during utility fluctuations or partial power failures. The 1756-PSCA2 chassis adapter further supports redundant power supply configurations, ensuring that a single power supply failure does not interrupt controller operation in mining hoists or continuous casting lines.

Electromagnetic interference (EMI) is a persistent challenge in environments with large variable frequency drives (VFDs), arc welding equipment, and high-voltage switchgear. The 1756-L84E’s shielded chassis design and EtherNet/IP protocol stack — with built-in CIP Security support — provide robust noise immunity and secure, deterministic communication across plant networks. Integration with the 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules extends network reach while maintaining the real-time performance that safety-critical applications demand. In legacy installations where DeviceNet or ControlNet infrastructure is already in place, the 1756-DNB DeviceNet scanner module and 1756-CN2 ControlNet module provide seamless backward compatibility, protecting existing capital investments.

For applications requiring functional safety compliance, the 1756-L84E can be deployed alongside GuardLogix safety controllers and 1791DS-IB12 safety I/O modules within the same 1756 chassis, enabling a unified safety and standard control architecture. This integration reduces cabinet footprint, simplifies wiring, and streamlines safety validation — a significant advantage in oil and gas, mining, and power generation facilities where IEC 61511 and IEC 62061 compliance is mandatory. The 1756-IB16 digital input module and 1756-OB16E digital output module interface with field devices including proximity sensors, solenoid valves, and motor starters, while the 1756-IF16 analog input module and 1756-OF8 analog output module provide precision signal conditioning for closed-loop PID control of flow rates, pressure, and temperature.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-L84E does not operate in isolation — it anchors a complete ControlLogix control architecture designed for resilience across the harshest industrial environments. In a typical heavy-industry control cabinet, the CPU works in concert with the 1756-IB16 digital input module and 1756-OB16E digital output module to interface with field devices including proximity sensors, solenoid valves, and motor starters. For analog process control — managing flow rates, pressure, and temperature in a refinery or water treatment plant — the 1756-IF16 analog input module and 1756-OF8 analog output module provide the precision signal conditioning required for closed-loop PID control.

Network communication in multi-node plant architectures is handled by the 1756-EN2T EtherNet/IP bridge module, which allows the 1756-L84E to communicate with remote I/O racks, SCADA systems, and HMI panels over a standard industrial Ethernet backbone. Power integrity is maintained through the 1756-PA75 AC power supply module, which accepts a wide input voltage range and provides regulated, filtered DC power to the chassis backplane. Safety-critical processes benefit from the integration of the 1791DS-IB12 GuardLogix safety I/O module, which monitors emergency stop circuits, light curtains, and safety gate interlocks in compliance with IEC 61508 SIL 2/3 requirements.

The 1756-L84E’s ability to share a chassis with GuardLogix safety modules under a unified Studio 5000 Logix Designer programming environment significantly reduces engineering complexity and validation effort in safety-instrumented systems (SIS). Terminal modules, relay output modules, and specialty communication adapters within the 1756 family further extend the controller’s reach into distributed field architectures — making the 1756-L84E the logical centerpiece of any ruggedized, fault-tolerant control cabinet in continuous production environments.

Application in Critical Infrastructure

Across the world’s most demanding industrial sectors, the Allen-Bradley 1756-L84E has established a proven track record of reliable service. In upstream oil and gas operations, the controller manages wellhead automation, pipeline pressure regulation, and emergency shutdown (ESD) sequences in environments where explosive atmospheres, extreme temperatures, and remote locations make reliability non-negotiable. Its EtherNet/IP connectivity enables integration with distributed control systems (DCS) and safety instrumented systems (SIS) over fiber-optic plant networks, supporting the redundant communication paths required by API 14C and IEC 61511 standards.

In coal and metal mining operations, the 1756-L84E controls conveyor belt systems, crusher drives, and ventilation fan arrays in environments characterized by heavy vibration, coal dust, and high ambient temperatures. Its deterministic scan time — typically sub-millisecond for time-critical tasks — ensures that protective relay logic and motor overload detection respond within the time windows required to prevent equipment damage and personnel injury.

Power generation facilities — including thermal, hydroelectric, and renewable energy plants — rely on the ControlLogix platform for turbine governor control, generator protection relay coordination, and balance-of-plant automation. The 1756-L84E’s large user memory accommodates the complex ladder logic, function block, and structured text programs required for multi-unit power plant control, while its EtherNet/IP interface supports integration with energy management systems (EMS) and plant historian databases.

Municipal water treatment and wastewater management facilities deploy the 1756-L84E to automate chemical dosing systems, pump station control, and SCADA telemetry in environments where continuous, unattended operation is required. In metallurgical and steel production environments, the controller manages electric arc furnace (EAF) electrode positioning, rolling mill speed synchronization, and ladle transfer car automation — applications where millisecond-level response times and fault-tolerant operation are essential to product quality and worker safety.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1756-L84E?
Every 1756-L84E unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty process is straightforward: if a unit fails within the warranty period, we provide a replacement or full refund with no hidden conditions. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
All 1756-L84E modules undergo a multi-stage pre-shipment inspection protocol that includes visual inspection for physical damage, firmware version verification, power-on functional testing, and EtherNet/IP communication validation. Units sourced as surplus are additionally subjected to extended burn-in testing to screen for latent defects. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 1756-L84E compatible with my existing ControlLogix infrastructure?
Yes. The 1756-L84E is fully compatible with all standard 1756 chassis sizes (4, 7, 10, 13, and 17-slot), all 1756-series I/O modules, and all 1756 communication modules including EtherNet/IP, DeviceNet, ControlNet, and PROFIBUS adapters. It is programmed using Rockwell Automation’s Studio 5000 Logix Designer software and supports RSLogix 5000 project files, ensuring seamless integration with existing programs and HMI configurations.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains a dedicated inventory of ControlLogix platform components — including CPU modules, I/O modules, power supplies, and communication modules — to support both planned maintenance schedules and emergency breakdown replacements. We offer same-day shipping for in-stock items via DHL, FedEx, or UPS express services, with delivery to most global destinations within 3–7 business days. For customers with critical spare parts requirements, we offer reserved stock agreements to guarantee availability.
