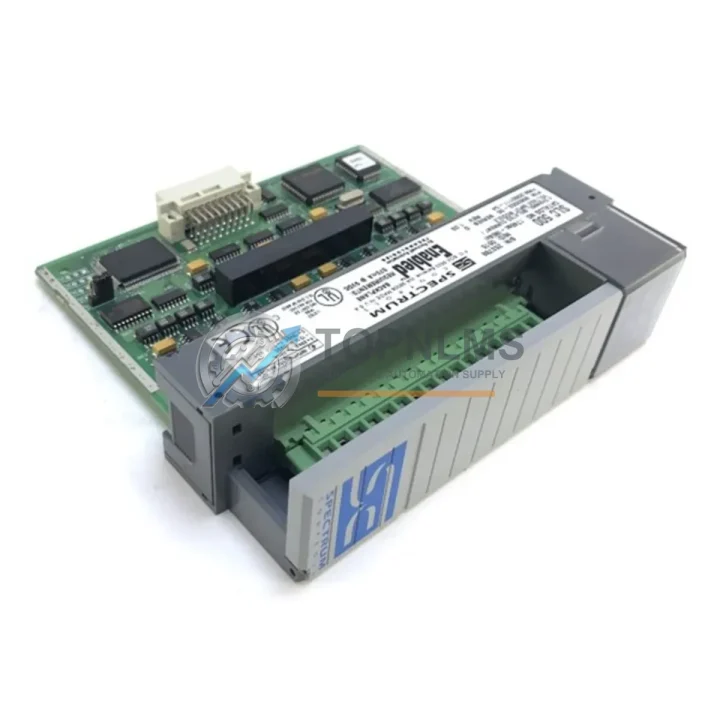

Allen-Bradley 1746SC-INI4VI Ruggedized Analog Input Module for Harsh Environments

Product Overview

Allen-Bradley 1746SC-INI4VI Ruggedized Analog Input Module for Harsh Environments

The Allen-Bradley 1746SC-INI4VI is a 4-channel isolated analog input module engineered for the SLC 500 programmable controller platform — one of Rockwell Automation’s most proven and widely deployed control architectures in industrial automation. Designed to deliver precise, interference-free signal acquisition in the most demanding plant-floor conditions, this module is a critical component for facilities where measurement accuracy, electrical isolation, and long-term operational stability are non-negotiable.

Built to withstand the rigors of continuous industrial operation, the 1746SC-INI4VI provides full channel-to-channel and channel-to-backplane isolation, making it exceptionally resilient against ground loops, common-mode noise, and high-frequency electromagnetic interference (EMI) — conditions routinely encountered in heavy manufacturing, petrochemical processing, power generation, and mining environments. Each of its four input channels independently accepts voltage signals, enabling simultaneous multi-point monitoring without cross-channel contamination. This architecture is essential in applications where sensor signals originate from physically separated field devices operating at different ground potentials.

In high-vibration environments such as compressor stations, rolling mills, and offshore platforms, the module’s robust backplane connector and conformal-coated PCB design ensure reliable contact and protection against moisture ingress and corrosive atmospheres. The SLC 500 rack-mount form factor provides mechanical stability that loose-wired signal conditioning alternatives simply cannot match, reducing the risk of intermittent faults that can cascade into unplanned shutdowns on critical production lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746SC-INI4VI does not operate in isolation — it is one node in a broader SLC 500 control system architecture that demands equally rugged supporting components. In a typical hardened control cabinet deployment, this analog input module works in concert with the 1746-A13 13-slot SLC 500 chassis and a 1746-P4 power supply, which provides the stable 24 VDC backplane power essential for accurate analog signal processing. Upstream, field transmitters connect through 1492-IFM20F interface modules or equivalent terminal block assemblies, ensuring clean, organized wiring that minimizes induced noise at the input terminals.

For digital I/O expansion within the same rack, the 1746-IB32 32-point DC input module and 1746-OB32 output module complement the analog acquisition role of the 1746SC-INI4VI, forming a complete mixed I/O solution for process control loops. Where safety-rated shutdowns are required — such as in SIL 2 or SIL 3 classified zones — the system is typically paired with a 1791DS-IB12 GuardI/O safety module or a dedicated Allen-Bradley SmartGuard 600 safety controller, ensuring that analog measurement data feeds directly into safety-rated logic without signal re-conditioning losses.

Communication integrity across the plant network is maintained through the 1747-SDN DeviceNet Scanner module or the 1747-SCNR ControlNet Scanner, both of which allow the SLC 500 processor to exchange real-time data with upstream SCADA systems, HMI panels, and distributed control nodes. In facilities running parallel DCS architectures, the analog signals captured by the 1746SC-INI4VI can be bridged to Rockwell Automation ControlLogix or CompactLogix platforms via gateway modules, preserving investment in existing SLC 500 field wiring while enabling migration to newer control tiers. Industrial power conditioning — including 1606-XLP72E power supplies — further protects the entire rack from voltage transients and brownout conditions common in heavy industrial grid environments.

Application in Critical Infrastructure

The 1746SC-INI4VI has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas processing facilities, it monitors pressure transmitter outputs and flow meter signals in hazardous-area control panels, where its channel isolation prevents ground faults from propagating across measurement loops and triggering spurious shutdowns. Upstream wellhead automation and midstream pipeline SCADA systems rely on the SLC 500 platform’s proven reliability, with the 1746SC-INI4VI serving as the primary analog front-end for temperature and pressure loop control.

In mining and mineral processing operations, the module withstands the extreme vibration, dust loading, and electrical noise generated by crushers, conveyors, and variable-frequency drives (VFDs). Its isolated input architecture prevents VFD switching transients — which can reach several hundred volts in common-mode — from corrupting analog readings or damaging the backplane. Water and wastewater treatment plants deploy the 1746SC-INI4VI for pH, turbidity, and flow monitoring, where continuous 24/7 operation and resistance to high-humidity environments are mandatory. The module’s conformal coating provides an additional barrier against condensation and chemical vapors present in pump stations and chemical dosing areas.

In power generation and electrical utilities, the module integrates into substation automation panels and turbine control systems, capturing analog feedback from current transformers and voltage dividers with the precision required for grid-synchronization logic. Steel mills and metallurgical plants use it within rolling mill control systems, where furnace temperature monitoring and hydraulic pressure feedback demand both high accuracy and immunity to the intense electromagnetic fields generated by induction heating equipment. Across all these applications, the 1746SC-INI4VI’s combination of electrical isolation, rugged construction, and SLC 500 platform compatibility makes it an indispensable component for engineers prioritizing uptime, safety, and long-term maintainability.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 1746SC-INI4VI?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. Each unit shipped by TOPNLMS has been individually inspected and functionally tested prior to dispatch. If a module fails within the warranty period due to a verified manufacturing or component defect, we provide a replacement or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is each unit tested before shipment?
Every 1746SC-INI4VI unit undergoes a pre-shipment inspection protocol that includes visual inspection for physical damage, connector integrity checks, and where applicable, power-on functional verification. Units sourced from certified distribution channels are cross-referenced against Rockwell Automation’s original part markings and date codes to confirm authenticity. We do not ship untested or visually compromised units.

Q3: Is the 1746SC-INI4VI compatible with all SLC 500 processors and chassis?
Yes. The 1746SC-INI4VI is designed for the 1746 series backplane and is compatible with all SLC 500 processor families, including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05. It occupies one slot in any standard 1746-series chassis (4-slot through 13-slot configurations). No firmware upgrade is required on the processor side for standard integration. For specific application compatibility questions, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of the 1746SC-INI4VI for ongoing maintenance programs?
Absolutely. TOPNLMS specializes in the supply of industrial automation spare parts for long-lifecycle platforms including the SLC 500 series. We maintain stock of the 1746SC-INI4VI and related SLC 500 modules to support planned maintenance schedules, emergency replacements, and multi-unit procurement for MRO programs. Bulk pricing and priority allocation are available for qualified industrial buyers. Contact us to discuss your ongoing supply requirements.
