Allen-Bradley 1746-P4 Replacement/Upgrade for SLC 500

Product Overview

Allen-Bradley 1746-P4 Replacement/Upgrade for SLC 500: Seamless Transition & Legacy System Compatibility

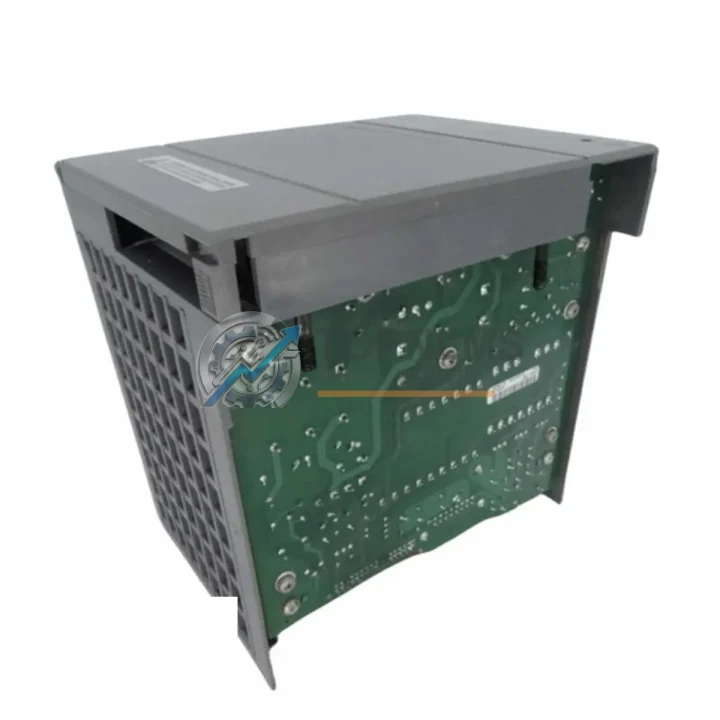

The Allen-Bradley 1746-P4 is a 24 VDC input power supply module designed for the SLC 500 modular chassis family. As Rockwell Automation progressively phases out legacy SLC 500 components in favor of the ControlLogix and CompactLogix platforms, many facilities operating 1746-series racks face an urgent need for reliable, drop-in replacement units or a structured migration path. TOPNLMS stocks the 1746-P4 to support both strategies — whether you need an immediate like-for-like swap to restore production or a bridging component while planning a full platform upgrade.

The 1746-P4 supplies power to the SLC 500 modular chassis (1746-A4, 1746-A7, 1746-A10, 1746-A13) and is compatible with all standard 1746-series I/O modules, including digital input modules such as the 1746-IB16 and 1746-IA16, digital output modules such as the 1746-OB16, and analog I/O modules such as the 1746-NI4 and 1746-NO4I. Replacing a failed or end-of-life 1746-P4 requires no rewiring of the chassis backplane — the module slides into the dedicated power supply slot and connects via the existing DC input wiring harness, preserving your existing field wiring and terminal block layout.

For sites running SLC 5/03, SLC 5/04, or SLC 5/05 processors (1747-L531, 1747-L541, 1747-L551), the 1746-P4 replacement is fully backward compatible. No changes to the RSLogix 500 program, I/O configuration, or communication settings are required. The processor continues to communicate over DH-485, DH+, or Ethernet/IP depending on the installed processor variant, and the replacement power supply has no impact on these communication paths.

When the broader migration goal is to transition from the SLC 500 platform to a modern architecture, the 1746-P4 replacement serves as a stabilization measure while the new control system is engineered. A typical migration project involves introducing a 1769-L30ER or 1769-L33ER CompactLogix controller alongside a 1769-ECR right-end cap and 1769-series compact I/O modules. During the transition period, the existing SLC 500 chassis — powered by the 1746-P4 — can remain operational in parallel, allowing engineers to validate the new program in Studio 5000 Logix Designer before cutover. This parallel-run approach significantly reduces unplanned downtime and production risk.

Physical installation of the 1746-P4 is straightforward. The module occupies the leftmost slot of the 1746 modular chassis and is secured with a single captive screw. Input power is connected via a removable terminal block, accepting 24 VDC from the site’s control panel power distribution. The module’s output capacity supports the full chassis load across all populated I/O slots, and the status LED provides immediate visual confirmation of power-good state. No special tools or programming software are required for the physical replacement.

For facilities where the SLC 500 system interfaces with a PanelView 300, PanelView 550, or PanelView Plus HMI terminal over DH-485 or RS-232, the 1746-P4 replacement has no effect on the HMI communication link. The AIC+ (1761-NET-AIC) or 1747-PIC programming cable connections remain intact, and the HMI program continues to poll the SLC processor without modification. This is a critical consideration for food processing, water treatment, and discrete manufacturing sites where HMI uptime is tied directly to operator safety and production visibility.

TOPNLMS maintains inventory of the 1746-P4 and related SLC 500 components to support emergency breakdown recovery as well as planned preventive maintenance programs. Units are inspected and function-tested prior to dispatch. Standard lead time is 1–3 business days for in-stock units, with expedited same-day dispatch available for urgent breakdown situations. All units are shipped with anti-static packaging and include a detailed inspection report.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 power supply replacement or platform migration typically involves several interconnected components. When replacing the 1746-P4, engineers should simultaneously audit the condition of the 1746-A7 or 1746-A10 chassis backplane for corrosion or connector wear. If the chassis is also approaching end-of-life, a proactive chassis replacement alongside the power supply eliminates a second unplanned outage. The SLC 5/04 processor module (1747-L541) and its associated 1747-C13 DH+ communication cable should be inspected for firmware currency and connector integrity during the same maintenance window.

For sites migrating to CompactLogix, the 1769-PA2 power supply module provides the equivalent DC power budget for a 1769-series local I/O bank, and the 1769-L30ER controller replaces the SLC 5/03 processor with full Ethernet/IP connectivity and Studio 5000 programming support. Signal conditioning between legacy 4–20 mA field devices and the new analog input modules (1769-IF4) can be maintained using DIN-rail-mounted signal isolators, avoiding the need to recalibrate field transmitters. Where the existing SLC 500 system communicates with a PanelView 550 HMI, a FactoryTalk View ME terminal on a PanelView Plus 6 provides a direct upgrade path with minimal screen redevelopment effort.

TOPNLMS can supply the 1746-P4 as a standalone replacement or as part of a bundled spares kit that includes the 1746-IB16 digital input module, 1746-OB16 digital output module, and a 1747-L531 SLC 5/03 processor — covering the most common failure-prone components in a single procurement action and reducing future emergency sourcing lead times.

Retrofit Guidance FAQ

Q: Can I replace the 1746-P4 without powering down the entire SLC 500 system?
A: No. The 1746-P4 must be replaced with the chassis fully de-energized. Isolate the 24 VDC input supply at the control panel breaker before removing the module. Failure to do so risks damage to the backplane and connected I/O modules.

Q: Will my RSLogix 500 program need to be re-downloaded after the power supply replacement?
A: No. The SLC processor retains its program in battery-backed RAM. Provided the processor battery (1747-BA) is in good condition, the program, data table values, and I/O configuration are preserved through the power cycle. We recommend verifying battery status before the replacement procedure.

Q: Is the 1746-P4 compatible with both 120 VAC and 240 VAC input power?
A: No. The 1746-P4 accepts 24 VDC input only. If your existing power supply is an AC-input model (1746-P1 or 1746-P2), you will need to retain your existing 24 VDC power supply or install a new DIN-rail 24 VDC SMPS to feed the 1746-P4.

Q: Does replacing the power supply affect DH-485 or DH+ communication with other nodes?
A: No. The communication interfaces are handled by the processor module and the 1747-SDN DeviceNet scanner or 1747-KE DH-485/RS-232 interface, not the power supply. Network communication is restored as soon as the processor completes its power-up diagnostic cycle, typically within 5–10 seconds.

Q: Can the 1746-P4 be used in a 1746-A4 four-slot chassis?
A: Yes. The 1746-P4 is compatible with all SLC 500 modular chassis sizes: 1746-A4, 1746-A7, 1746-A10, and 1746-A13. The power budget must be verified against the total I/O module load for the specific chassis configuration.

Q: What is the physical installation space requirement?
A: The 1746-P4 occupies the dedicated power supply slot at the left end of the chassis. No additional DIN rail space or panel cutout is required. The module dimensions are identical to all other 1746-series power supply variants, ensuring a direct physical fit.

Warranty Assurance

Every 1746-P4 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of dispatch. Prior to shipment, each unit undergoes a functional inspection that includes input voltage range verification, output voltage and current load testing, and visual inspection of the terminal block and module connector. Units that do not meet specification are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 2 business days of claim confirmation, minimizing production downtime. Customers are not required to return the defective unit before the replacement is dispatched for verified warranty cases. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 during business hours (GMT+8).

Procurement documentation including a commercial invoice, packing list, and inspection report is provided with every shipment to support your internal asset management and maintenance records. For bulk orders or standing purchase agreements, TOPNLMS offers priority allocation and extended warranty terms — contact our sales team for details.
