Allen-Bradley 1746-OB8 SLC 500 Replacement/Upgrade Solution

Product Overview

Allen-Bradley 1746-OB8 SLC 500 Replacement/Upgrade Solution: Smooth Transition from Legacy PLC Systems

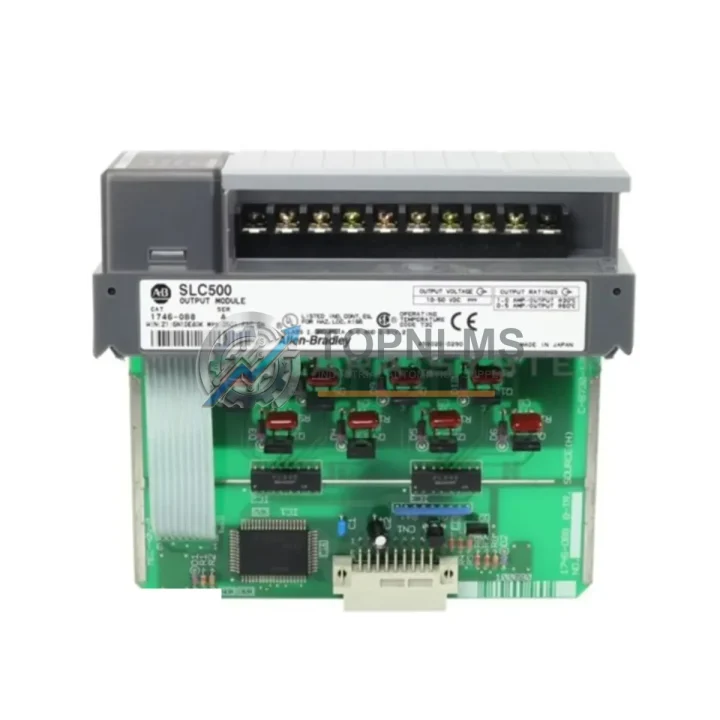

The Allen-Bradley 1746-OB8 is an 8-point PNP DC output module designed for the SLC 500 modular chassis platform, operating at 10–50VDC with a maximum load current of 1A per point and 4A per common. As Rockwell Automation progressively phases out legacy SLC 500 hardware, facilities running SLC 5/01, SLC 5/02, SLC 5/03, SLC 5/04, and SLC 5/05 processors face increasing pressure to source reliable replacement modules that maintain wiring compatibility, preserve existing ladder logic programs, and minimize unplanned downtime.

TOPNLMS supplies tested, ready-to-ship 1746-OB8 modules sourced from verified industrial channels. Each unit undergoes functional output verification prior to dispatch, ensuring that your replacement integrates directly into your existing 1746 modular rack without rewiring field devices or modifying RSLogix 500 programs.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from a legacy SLC 500 control system involves more than swapping a single output module. A complete and reliable retrofit typically requires coordinating several interdependent components across the same 1746 rack and control cabinet.

For facilities replacing multiple I/O modules simultaneously, the 1746-IB16 16-point DC input module and the 1746-OW16 relay output module are commonly sourced alongside the 1746-OB8 to refresh an entire I/O tier in one maintenance window. Where analog signal conditioning is required — for example, when interfacing with legacy 4–20mA transmitters or thermocouple inputs — the 1746-NI4 analog input module and 1746-NO4I analog output module integrate directly into the same chassis without backplane configuration changes.

Power supply integrity is critical during any SLC 500 retrofit. The 1746-P4 power supply module (24VDC input, 10A output) is frequently replaced in parallel with I/O modules to eliminate the risk of an aging PSU causing intermittent faults after the new output module is installed. For systems using a 1746-A13 or 1746-A10 modular rack, verifying slot capacity and backplane current budget before populating new modules is a standard pre-commissioning step.

Communication continuity is another key consideration. Many SLC 500 installations rely on the 1747-SDN DeviceNet scanner module or the 1747-KE DH-485 to RS-232C interface module for SCADA connectivity. These communication modules remain fully compatible with the 1746 backplane and do not require reconfiguration when output modules are replaced. For sites transitioning to Ethernet-based supervision, the 1761-NET-ENI Ethernet interface adapter can be added to the existing SLC 5/05 processor without altering field wiring or ladder logic.

Where physical cabinet space is constrained, the compact footprint of the 1746-OB8 — occupying a single 1746 slot — makes it straightforward to replace without rearranging adjacent modules such as the 1746-OBP8 protected output module or repositioning terminal block wiring. The removable 20-pin RTB (removable terminal block) design means field wiring can be transferred directly from the failed module to the replacement unit in minutes, significantly reducing commissioning time during a live plant shutdown window.

Retrofit Guidance FAQ

Q: Will the 1746-OB8 replacement require any wiring changes?
No. The replacement unit uses the same 20-pin removable terminal block (RTB) connector. Field wiring transfers directly from the original module to the replacement without modification.

Q: Do I need to modify my RSLogix 500 program?
No. The 1746-OB8 replacement is a direct functional equivalent. The I/O address mapping, output bit assignments, and ladder logic rungs remain unchanged. No program download is required after module swap.

Q: Is the module compatible with all SLC 500 chassis sizes?
Yes. The 1746-OB8 is compatible with all 1746 modular rack sizes, including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13. It occupies one standard slot and draws from the backplane power budget accordingly.

Q: What communication protocols does the SLC 500 backplane support?
The SLC 500 platform supports DH-485 and Data Highway Plus (DH+) natively. With appropriate communication modules, the system can also interface with DeviceNet, ControlNet, and Ethernet/IP networks without replacing the I/O layer.

Q: How do I verify the replacement module before installation?
Each TOPNLMS unit is tested for output continuity and backplane communication prior to shipment. We recommend a bench test using a 24VDC source and a known-good SLC 500 processor before installing the module in a live rack.

Q: Can this module replace the 1746-OBP8?
The 1746-OBP8 includes electronic short-circuit protection not present in the standard 1746-OB8. If your application requires output protection, the 1746-OBP8 is the appropriate replacement. Contact TOPNLMS to confirm the correct module for your specific wiring and load requirements.

Warranty Assurance

Every 1746-OB8 replacement module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes functional output testing, backplane connector inspection, and RTB contact verification. Modules that do not pass inspection are not dispatched.

In the event of a warranty claim, TOPNLMS provides direct replacement support with a target response time of 1 business day. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available for urgent plant maintenance situations. We do not require the return of the defective unit before dispatching a replacement for verified warranty cases.

Our procurement guarantee includes accurate SKU verification, original or equivalent-grade sourcing, and full traceability documentation upon request. For B2B customers requiring batch procurement of SLC 500 I/O modules, volume pricing and consolidated shipment arrangements are available.

For technical pre-sales consultation, compatibility verification, or urgent replacement inquiries, contact our industrial automation team directly.
