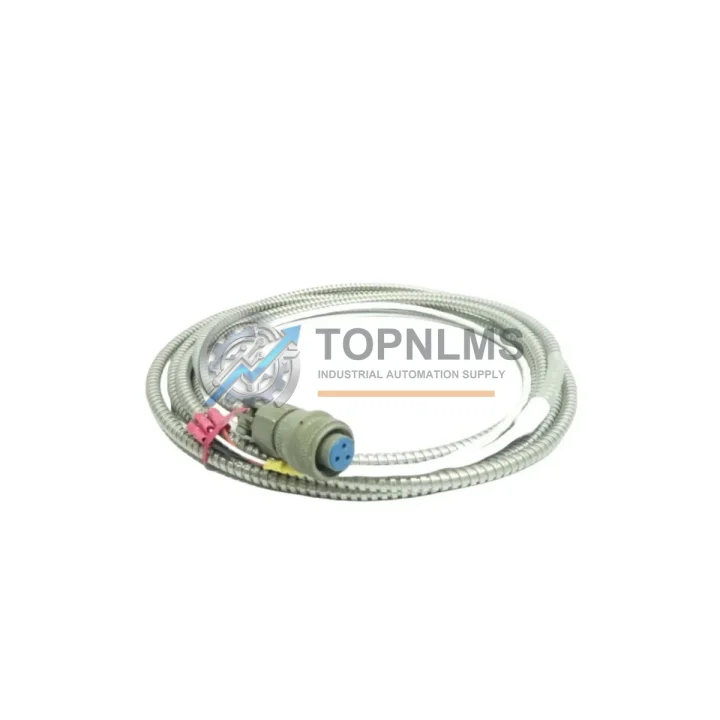

Bently Nevada 16710-12 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 16710-12 Original Industrial Spare 3300 XL Compatible: System Stability & Maintenance Value

The Bently Nevada 16710-12 is an original interconnect cordset engineered specifically for the 3300 XL Proximity Probe System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection worldwide. In continuous-process industries such as petrochemical, power generation, oil & gas, and heavy manufacturing, the 3300 XL system forms the backbone of turbine, compressor, and pump shaft monitoring. The 16710-12 cordset is the critical signal transmission link between the proximity probe and the proximitor/extension cable assembly, making it a non-negotiable spare in any serious predictive maintenance inventory.

When a cordset fails — whether from mechanical fatigue, connector corrosion, cable crush damage, or signal degradation — the entire vibration channel goes offline. In a machinery protection context, this can trigger nuisance trips, mask real fault conditions, or force an unplanned shutdown. Stocking the 16710-12 as a verified original spare eliminates the risk of extended downtime caused by sourcing delays. Our units are tested prior to shipment, supplied with a 12-month warranty, and dispatched with full traceability documentation.

Critical Technical Specs

Preventive Maintenance Strategy

The 16710-12 cordset sits at the field end of the 3300 XL measurement chain, and its condition directly affects the accuracy of every vibration and position reading fed into your machinery protection system. A structured preventive maintenance approach for rotating equipment should treat the entire proximity measurement loop as a single replaceable assembly — not just individual components.

During scheduled outages or turnaround inspections, maintenance teams should inspect the 16710-12 cordset alongside the 3300 XL Extension Cable (330130 series), which carries the signal from the probe tip back to the proximitor housing. Connector corrosion, jacket cracking, or impedance drift in either component will corrupt the gap voltage reading. At the same time, the 3300 XL Proximitor Sensor (330180 / 330181) should be bench-tested or replaced on a lifecycle schedule — proximitor drift is a common root cause of false high-vibration alarms that are misattributed to the cordset.

For control cabinet integrity, verify the condition of the 3500 Series Rack I/O Modules that receive the proximity signal downstream. A degraded 16-channel monitor card or a failing 3500/42M Proximitor/Seismic Monitor can produce erratic readings even when the field wiring is intact. Pairing a cordset replacement with a rack module inspection is a best practice that reduces repeat call-outs.

Power supply stability is equally critical. The 3500 Rack Power Supply (3500/15) provides the regulated –24 VDC bias voltage that drives the entire eddy-current measurement chain. A marginal power supply that passes basic checks under no-load conditions may still introduce noise under full rack load — always verify output ripple during commissioning after a cordset swap.

In facilities running mixed Bently Nevada generations, it is common to find 3300 5mm and 8mm proximity probes installed alongside newer 3300 XL hardware. Confirm probe-to-proximitor compatibility before replacing cordsets to avoid mismatched system gain errors. Stocking a small buffer of 3300 XL 8mm Proximity Probes (330103 series) alongside the 16710-12 cordsets ensures that a complete channel replacement can be executed within a single maintenance window.

For facilities with older DCS or safety system integrations, signal isolators and Zener barriers in the intrinsically safe wiring circuits should be inspected concurrently. A degraded barrier can clamp the proximity signal and simulate a probe fault. Similarly, terminal blocks and DIN rail assemblies in the junction box should be torque-checked and visually inspected for oxidation — loose terminations are a leading cause of intermittent vibration channel faults that are difficult to reproduce during static testing.

Where HMI or historian systems display vibration trends, confirm that the Bently Nevada System 1 software configuration reflects the correct probe gap and scale factor for the 16710-12 cordset length. An incorrect scale factor will produce a systematic offset in all gap and vibration readings, which can mask developing bearing faults or trigger unnecessary protective trips.

Strategic Replacement Solutions

The 16710-12 is a direct original replacement for worn, damaged, or end-of-life cordsets in any 3300 XL proximity measurement loop. Because the 3300 XL platform has been in service for decades, many facilities are operating with cordsets that have exceeded their recommended service life — particularly in high-temperature or high-vibration environments where cable jacket degradation accelerates.

Replacing an aged cordset with a verified original 16710-12 restores the full measurement accuracy of the channel without requiring recalibration of the proximitor or adjustment of the System 1 configuration, provided the probe gap is reset to the original specification. This is a significant operational advantage over using non-original or aftermarket cordsets, which may introduce impedance mismatches that shift the linear range of the measurement system.

For facilities managing a fleet of rotating machines — multiple compressor trains, turbine-generator sets, or pump arrays — a standardized spare parts strategy built around the 16710-12 and its associated 3300 XL components reduces the number of unique part numbers that maintenance planners must track. A single cordset SKU covers all 3300 XL 8mm probe installations, simplifying procurement, reducing minimum order quantities, and improving first-time fix rates during unplanned outages.

For legacy systems where the original 3300 (non-XL) proximitors are still in service, our technical team can advise on compatibility and transition planning. In many cases, a phased upgrade to 3300 XL hardware — starting with cordset and proximitor replacement — can be executed without modifying the existing probe installation or control system wiring, preserving capital investment while improving measurement reliability.

Support FAQ

Q1: Is the 16710-12 compatible with both 3300 and 3300 XL proximitors?
The 16710-12 is designed and specified for the 3300 XL Proximity Probe System. While the connector format is physically similar to earlier 3300 series cordsets, Bently Nevada recommends using matched XL-series components throughout the measurement chain to ensure correct system gain and linear range. If you are operating a legacy 3300 (non-XL) system, contact us before ordering to confirm compatibility with your specific proximitor model.

Q2: What pre-shipment testing is performed on the 16710-12?
Each unit undergoes signal continuity verification and coaxial impedance testing before dispatch. Units that do not meet Bently Nevada original specification are rejected. A test report is available upon request for critical applications. All units are shipped with a 12-month warranty covering manufacturing defects and performance failures under normal operating conditions.

Q3: How should the 16710-12 be stored as a long-term spare?
Store in original packaging in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Avoid coiling the cable tightly or placing heavy objects on the connector ends. Inspect connectors for oxidation annually. Properly stored units maintain full specification for a minimum of 5 years from the date of manufacture.

Q4: What is the lead time and shipping arrangement?
In-stock units are dispatched within 1–3 business days. International shipments are supported with full export documentation. For urgent maintenance requirements, expedited shipping options are available — contact us directly to confirm availability and arrange priority dispatch. All orders include a 12-month warranty from the date of shipment.
