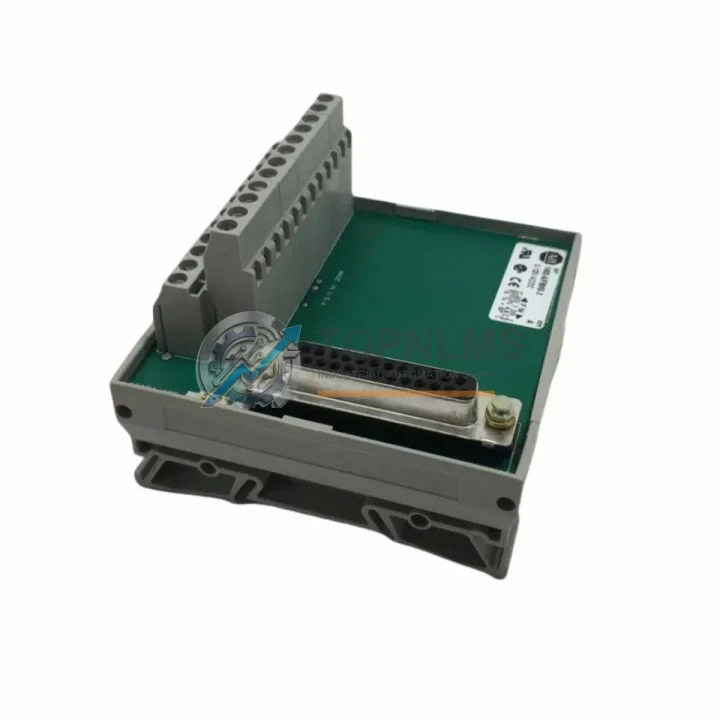

Allen-Bradley 1492-IFM40F-FS-2 Ruggedized Analog I/O Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1492-IFM40F-FS-2 is a 40-terminal fused analog interface module engineered for mission-critical industrial automation environments where signal integrity, electrical protection, and long-term reliability are non-negotiable. As part of Rockwell Automation’s 1492 IFM (Interface Module) series, this component serves as the critical bridge between field-level analog instrumentation and the control system’s I/O backplane — protecting both the controller and the field device from overcurrent faults, wiring errors, and transient surges that are endemic to heavy industrial sites.

In facilities where continuous uptime is paramount — oil refineries, chemical processing plants, power generation stations, and metal smelting operations — the 1492-IFM40F-FS-2 delivers the kind of passive protection that prevents a single wiring fault from cascading into a full production shutdown. Each of its 40 terminals is individually fused, isolating fault conditions at the channel level and allowing maintenance personnel to replace a single fuse without interrupting adjacent circuits. This granular protection architecture is precisely what separates a ruggedized interface solution from a generic terminal block.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1492-IFM40F-FS-2 does not operate in isolation — it is a foundational component within a broader Rockwell Automation control architecture. In a typical ControlLogix or CompactLogix panel, this interface module sits between the field wiring and the 1756-IF16 or 1756-IF8 analog input modules, providing the fused termination layer that protects sensitive I/O circuitry from field-side faults. When paired with the 1492-CABLE series pre-wired interface cables, installation time is dramatically reduced and wiring errors are virtually eliminated.

For digital I/O protection in the same control cabinet, the 1492-IFM40D (unfused digital interface module) and 1492-IFM40DS (with surge suppression) complement the analog fused variant, creating a unified, consistent termination strategy across all I/O types. In safety-rated applications, the 1492-IFM40F-FS-2 is commonly deployed alongside the 1791DS GuardLink safety I/O modules and the 1734 POINT Guard I/O safety modules, ensuring that both standard and safety-rated analog signals receive equivalent levels of passive protection.

Power distribution within the same enclosure is typically handled by the 1606-XLP series industrial power supplies, which provide clean, regulated 24 VDC to the I/O backplane and field instruments. Surge protection at the cabinet entry point — using devices such as the 1492-SP series supplementary protectors — further shields the 1492-IFM40F-FS-2 and downstream I/O from transient overvoltage events caused by lightning strikes or motor switching on long cable runs. For communication-intensive panels, the 1756-EN2T EtherNet/IP communication module and 1756-DNB DeviceNet bridge module are frequently co-located in the same ControlLogix chassis, and the signal quality delivered by properly fused analog terminations directly improves the data integrity reported over these networks.

In distributed control architectures, the 1492-IFM40F-FS-2 is equally at home in remote I/O panels connected via the 1756-RM2 redundancy module or in standalone CompactLogix panels using the 1769-L30ER processor. Regardless of the system topology, the fused interface module ensures that field instrument failures — whether from a shorted 4–20 mA transmitter, a damaged thermocouple, or a corroded RTD connection — are contained at the termination layer and do not propagate into the controller backplane.

Application in Critical Infrastructure

In upstream oil and gas operations, the 1492-IFM40F-FS-2 is deployed in wellhead control panels and SCADA remote terminal units where analog signals from pressure transmitters, flow meters, and temperature sensors must be reliably terminated despite exposure to vibration from pump machinery, wide ambient temperature swings, and the ever-present risk of electrical transients from high-power motor drives operating on the same power distribution network.

In coal-fired and gas-fired power generation plants, this module protects the analog I/O channels that monitor boiler drum levels, turbine exhaust temperatures, and generator excitation currents. A single unprotected wiring fault in these loops can trigger a spurious trip of a generating unit, resulting in megawatt-scale production losses. The per-channel fusing of the 1492-IFM40F-FS-2 ensures that such faults are isolated immediately, and the affected channel can be restored during the next scheduled maintenance window without forcing a plant-wide shutdown.

In municipal water treatment and wastewater facilities, the module handles analog signals from pH sensors, dissolved oxygen probes, and chemical dosing flow meters — instruments that operate in high-humidity, chemically aggressive environments. The module’s rated operating humidity range and its compatibility with sealed control cabinets make it a dependable choice for these installations. Similarly, in mining and mineral processing operations, where vibration from crushers and conveyors is constant and dust ingress is a persistent concern, the 1492-IFM40F-FS-2 is installed in IP54 or IP65-rated enclosures, with the module itself providing the internal fused termination layer that keeps the control system operational through the harshest production cycles.

Metallurgical and steel mill applications present some of the most demanding electrical environments in industry — high electromagnetic interference from arc furnaces, extreme radiant heat near casting lines, and mechanical shock from rolling mill operations. In these settings, the 1492-IFM40F-FS-2 is valued not only for its protective function but also for its ease of replacement: a maintenance technician can swap a blown fuse or replace the entire module in minutes, minimizing mean time to repair (MTTR) and keeping the production line moving.

Security & Quality FAQ

Q1: What warranty coverage does the 1492-IFM40F-FS-2 carry when purchased from TOPNLMS?
Every 1492-IFM40F-FS-2 unit shipped by TOPNLMS is covered by a 12-month full replacement warranty from the date of delivery. If the module exhibits any functional defect under normal operating conditions within this period, we will arrange a replacement or full refund at no additional cost. Our warranty terms are documented and provided with every shipment.

Q2: How is each unit tested before shipment?
All modules undergo a multi-point pre-shipment inspection that includes visual examination for physical damage, terminal integrity verification, fuse continuity testing across all 40 channels, and functional verification against the original Allen-Bradley datasheet specifications. Units that do not pass all inspection criteria are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1492-IFM40F-FS-2 compatible with my existing ControlLogix or CompactLogix system?
Yes. The 1492-IFM40F-FS-2 is designed to interface with the full range of Allen-Bradley analog I/O modules across the 1756 ControlLogix, 1769 CompactLogix, 1746 SLC 500, and 1771 PLC-5 platforms via the corresponding 1492-CABLE pre-wired interface cables. Compatibility is determined by the specific analog I/O module in your chassis — our technical team can confirm the correct cable assembly for your configuration before you place an order.

Q4: Can TOPNLMS support long-term or repeat procurement for maintenance and spare parts programs?
Absolutely. TOPNLMS maintains standing inventory of the 1492-IFM40F-FS-2 and related 1492 IFM series components to support planned maintenance schedules, emergency spare parts programs, and capital project procurement. We offer volume pricing for blanket orders and can provide lead time commitments for scheduled deliveries. Contact our team to discuss a supply agreement tailored to your facility’s maintenance cycle.
