Allen-Bradley 1444-DYN04-01RA Original Industrial Spare 1444 Compatible: System Stability Through Precision Condition Monitoring

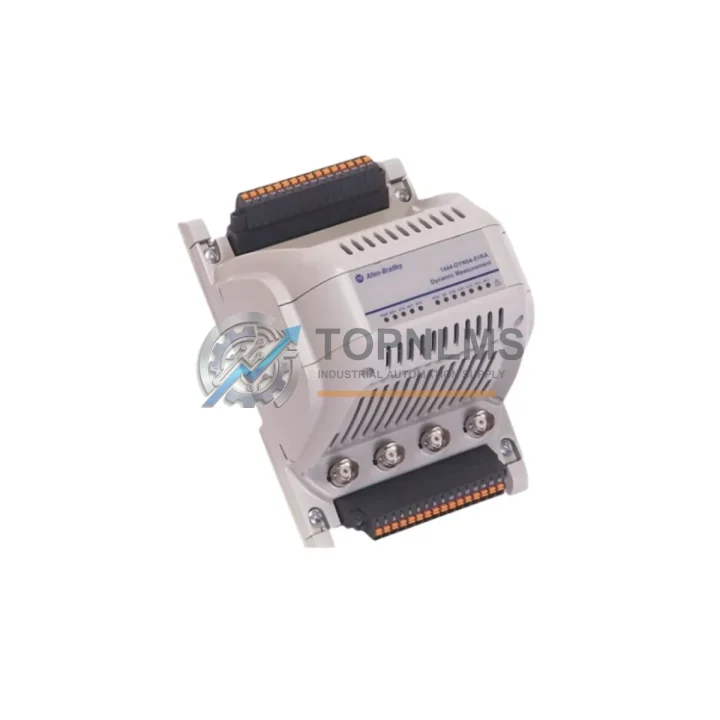

The Allen-Bradley 1444-DYN04-01RA is a 4-channel dynamic measurement module engineered for the Rockwell Automation 1444 Series Integrated Condition Monitoring platform. Designed to integrate seamlessly with ControlLogix and CompactLogix backplane architectures, this module delivers real-time vibration, speed, and dynamic signal acquisition critical to predictive maintenance programs in heavy industrial environments. For maintenance engineers managing rotating machinery, compressors, turbines, pumps, and conveyor drives, the 1444-DYN04-01RA represents a cornerstone spare that directly supports system uptime and long-term asset reliability.

At TOPNLMS, every 1444-DYN04-01RA unit is sourced as an original Allen-Bradley component, inspected prior to dispatch, and backed by a 12-month warranty. We ship globally with full documentation support to ensure your replacement is drop-in compatible with your existing 1444 Series chassis installation.

Critical Technical Specs

Preventive Maintenance Strategy

When a 1444-DYN04-01RA module is flagged for replacement during a scheduled shutdown or an unplanned fault event, experienced maintenance teams treat the intervention as an opportunity to audit the broader condition monitoring system. A single module failure rarely occurs in isolation — vibration anomalies, sensor drift, or communication faults often indicate stress across adjacent components in the same control cabinet or measurement loop.

During the module swap, it is best practice to simultaneously inspect the 1444-TB-A terminal base that the DYN04 module seats into. Contact wear or contamination on the terminal base can cause intermittent signal loss even after a new module is installed. If the chassis has been in service for more than five years, evaluate the 1444 Series chassis power supply for output voltage stability — degraded backplane power is a common root cause of dynamic measurement anomalies that is frequently misdiagnosed as a module fault.

On the sensor side, the IEPE accelerometers connected to the 1444-DYN04-01RA inputs — typically mounted on bearing housings, gearbox casings, or motor end-bells — should be checked for cable integrity, connector corrosion, and bias voltage compliance. Faulty IEPE accelerometer cables and field wiring connectors are among the most frequent causes of false alarms and channel dropouts in condition monitoring installations. Replacing the module without inspecting the sensor wiring loop is a common maintenance oversight that leads to repeat call-outs within weeks of the original repair.

For facilities running ControlLogix-based control systems alongside the 1444 platform, the 1756-EN2T EtherNet/IP communication module and 1756-L7x series ControlLogix controllers should be included in the periodic inspection checklist. These components govern the data pathway from the 1444 condition monitoring system to the SCADA or historian layer, and any firmware mismatch or network latency issue can mask real-time vibration alerts before they reach the operator. Similarly, the 1756-IB16 digital input module used for tachometer or keyphasor signal integration should be verified for channel response accuracy during the same maintenance window, as tachometer signal integrity is essential for accurate speed-referenced spectral analysis.

In facilities where the 1444 system monitors multiple asset trains — such as a pump-motor set, a compressor skid, and a cooling tower fan — it is advisable to maintain a minimum buffer stock of one 1444-DYN04-01RA module per monitored asset group. Alongside this, stocking 1444-ACNR15 communication network modules and 1444-TB-B terminal bases ensures that any combination of hardware faults can be resolved within a single maintenance shift without waiting for emergency procurement. For facilities with older installations, the 1444-DYN02-01RA 2-channel variant may also be present in the same cabinet and should be included in the spare parts inventory plan to avoid a mixed-stock gap during a multi-module failure event.

Finally, for control cabinets housing both the 1444 system and associated PLC racks, routine inspection of 24 VDC power supply modules — such as the Allen-Bradley 1606-XLP series — and surge protection terminal blocks is strongly recommended. Transient voltage events are a leading cause of premature module failure in industrial environments where variable-frequency drives or large motor starters operate in close proximity to the condition monitoring hardware.

Strategic Replacement Solutions

The 1444-DYN04-01RA is a direct replacement for earlier Allen-Bradley condition monitoring hardware, including legacy vibration monitoring cards used in older 1771 PLC-5 and SLC 500 installations that have been migrated to the ControlLogix platform. Its plug-in compatibility with the 1444 Series chassis means that no re-engineering of the sensor wiring or software tag structure is required when replacing a like-for-like unit — a critical advantage when minimizing planned downtime windows in continuous-process industries such as oil and gas, pulp and paper, mining, and power generation.

For facilities managing end-of-life condition monitoring systems from third-party vendors, the 1444-DYN04-01RA combined with the full 1444 Series platform offers a migration path that preserves existing sensor investments while delivering modern EtherNet/IP integration, Studio 5000 Logix Designer configuration, and seamless historian connectivity. This reduces the total cost of system modernization compared to a full rip-and-replace approach and allows maintenance teams to phase the upgrade across multiple shutdown cycles without disrupting production continuity.

TOPNLMS maintains ready stock of the 1444-DYN04-01RA to support emergency replacement scenarios. All units are tested for backplane communication integrity and channel signal response before dispatch. Standard lead time is 3–7 business days for international shipments, with expedited options available for critical plant situations. Each unit ships with original Allen-Bradley labeling, a pre-shipment test report, and a 12-month warranty certificate.
