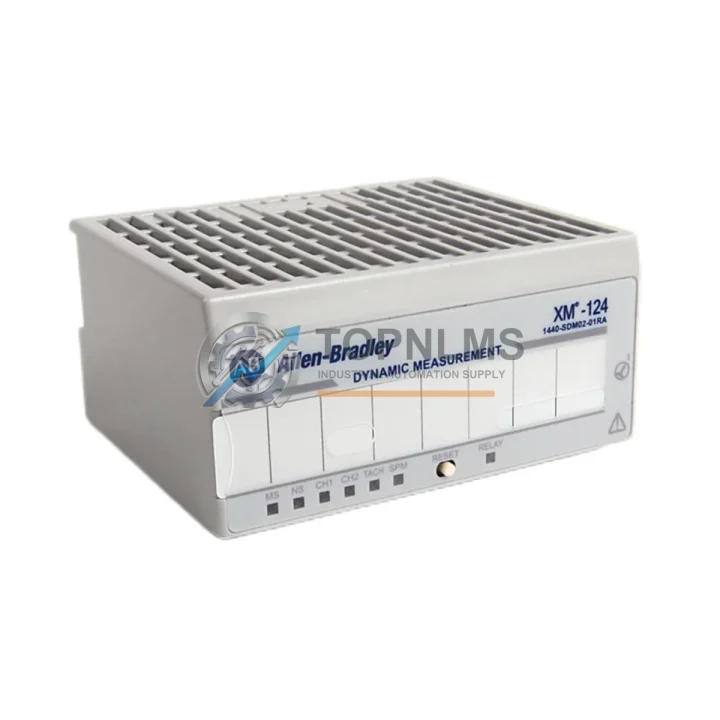

Allen-Bradley 1440-SDM02-01RA Ruggedized Measurement Module

Product Overview

Allen-Bradley 1440-SDM02-01RA Ruggedized Measurement Module for Harsh Environments

The Allen-Bradley 1440-SDM02-01RA is a two-channel dynamic measurement module engineered for continuous, mission-critical condition monitoring in the most demanding industrial environments. Part of the ArmorBlock MaXum 1440 series from Rockwell Automation, this module is purpose-built to withstand high temperatures, elevated humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference — conditions routinely encountered in oil and gas facilities, mining operations, power generation plants, water treatment infrastructure, metallurgical processing lines, and heavy manufacturing floors.

Unlike standard rack-mounted I/O modules that require climate-controlled enclosures, the 1440-SDM02-01RA is housed in a sealed, IP67-rated ArmorBlock enclosure that mounts directly in the field — adjacent to rotating machinery, conveyor drives, pump stations, and compressor trains. This eliminates long signal cable runs, reduces susceptibility to noise pickup, and dramatically improves measurement fidelity in electrically noisy environments where variable frequency drives, high-current motor starters, and power distribution equipment generate continuous electromagnetic interference.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1440-SDM02-01RA is rarely deployed in isolation. In a fully integrated condition monitoring architecture, it works in concert with the 1440-TPS02-01RA tachometer and process measurement module to correlate vibration signatures with shaft speed — a critical capability for detecting imbalance, misalignment, and bearing defects on rotating equipment. Alongside the 1440-REX00-04RB expansion module, engineers can scale the monitoring network to cover additional measurement points without adding new DeviceNet nodes, preserving network bandwidth and simplifying PLC programming in ControlLogix L7x or CompactLogix L3x controllers.

In high-voltage switchgear rooms and motor control centers, the 1440-SDM02-01RA is often paired with 1756-IB16 digital input modules and 1756-OB16E digital output modules housed in ControlLogix chassis, enabling automated protective shutdown sequences when vibration thresholds are exceeded. The DeviceNet communication backbone that carries measurement data from the ArmorBlock MaXum field devices is typically managed through a 1756-DNB DeviceNet scanner module, which bridges field-level sensor data into the ControlLogix backplane for real-time processing by the safety PLC.

For installations requiring functional safety compliance, the 1440-SDM02-01RA measurement data is frequently consumed by GuardLogix 1756-L71S safety controllers or routed through 1791DS safety I/O modules to implement SIL-rated protective functions. Industrial power continuity is maintained by 1606-XLP series SMPS power supplies, which deliver stable 24 V DC to the ArmorBlock bus even under wide input voltage fluctuations common in heavy industrial facilities. Communication integrity across the plant network is further supported by 1783-BMS10CGP Stratix managed Ethernet switches, ensuring low-latency data delivery from field sensors to the SCADA historian.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1440-SDM02-01RA is deployed on gas compressor trains, pipeline booster pumps, and wellhead control panels where continuous vibration monitoring is mandated by API 670 machinery protection standards. The module’s IP67 enclosure and wide operating temperature range allow it to function reliably in outdoor installations subject to desert heat, arctic cold, and salt-laden coastal atmospheres without requiring additional weatherproof housings.

In mining and mineral processing operations, the module monitors crusher drives, ball mill pinion bearings, conveyor head pulleys, and slurry pump mechanical seals — all high-wear components whose failure causes costly unplanned downtime. Early vibration trend detection enabled by the 1440-SDM02-01RA allows maintenance teams to schedule bearing replacements during planned shutdowns rather than reacting to catastrophic failures mid-shift.

In power generation and utilities, including coal-fired, gas turbine, and hydroelectric plants, the module provides continuous health monitoring of boiler feed pumps, cooling water pumps, and turbine auxiliary systems. Integration with the plant DCS via the ControlLogix gateway allows vibration alarms to be displayed on operator workstations alongside process variables such as flow, pressure, and temperature — giving control room operators a unified view of both process and mechanical health.

In water and wastewater treatment facilities, the 1440-SDM02-01RA monitors high-duty-cycle centrifugal pumps and blower units that run continuously for months without manual inspection. Its sealed enclosure resists the corrosive, high-humidity atmosphere of wet wells and chemical dosing rooms, while its DeviceNet interface integrates seamlessly with existing Allen-Bradley PLC infrastructure already managing SCADA-controlled treatment processes.

In metallurgy and steel production, where rolling mill drives, ladle transfer cars, and continuous casting equipment operate under extreme thermal and mechanical stress, the module’s vibration data feeds predictive maintenance algorithms that extend equipment life and reduce unplanned production interruptions — directly protecting revenue on high-throughput production lines where every hour of downtime carries significant financial consequence.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order number and a description of the fault. Replacement units are dispatched after fault verification, and defective units are returned for root-cause analysis.

Q2: How is each unit tested before shipment?
Every 1440-SDM02-01RA unit undergoes functional verification prior to dispatch. Testing includes power-on self-test confirmation, channel input response verification, and communication interface handshake validation. Units that fail any test stage are quarantined and not shipped. A test record is retained for traceability. Customers requiring third-party inspection or factory acceptance test documentation may request this at the time of order.

Q3: Is the 1440-SDM02-01RA compatible with my existing ControlLogix or CompactLogix system?
Yes. The 1440-SDM02-01RA communicates via DeviceNet and integrates with any ControlLogix or CompactLogix system equipped with a DeviceNet scanner module such as the 1756-DNB or 1769-SDN. The module is configured using RSNetWorx for DeviceNet and is fully compatible with Studio 5000 Logix Designer for tag mapping and alarm configuration. Existing ArmorBlock MaXum 1440 installations can add the 1440-SDM02-01RA without modifying the network topology.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains stock of the 1440-SDM02-01RA and other ArmorBlock MaXum 1440 series modules to support both planned procurement and emergency breakdown replacement scenarios. Standard orders are processed and shipped within 1–3 business days. For critical infrastructure customers requiring guaranteed response times or consignment stock arrangements, please contact [email protected] to discuss a supply agreement tailored to your maintenance strategy.
