Allen-Bradley 1336T-MCB-SP34B Replacement for 1336 PLUS II

Product Overview

Allen-Bradley 1336T-MCB-SP34B Replacement for 1336 PLUS II: Smooth Transition from Legacy AC Drive Systems

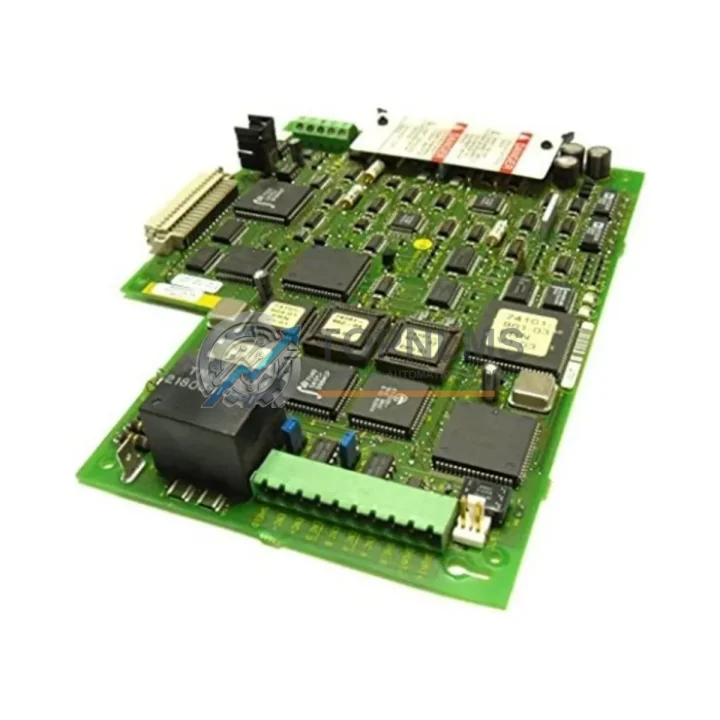

The Allen-Bradley 1336T-MCB-SP34B (Part No. 74101-772-54) is the main control board (MCB) for the 1336 PLUS II series AC variable-frequency drive — one of Rockwell Automation’s most widely deployed drive platforms across industrial manufacturing, water treatment, HVAC, and material handling applications. As the 1336 PLUS II series reaches end-of-life and OEM spare parts become increasingly scarce, facilities engineers and maintenance teams are actively seeking verified replacement boards and structured upgrade paths to minimize unplanned downtime and extend system service life.

This listing provides a direct-fit replacement and modernization solution for the 1336T-MCB-SP34B main control board, supporting both like-for-like swap-out and phased migration to current-generation Rockwell Automation drive platforms. Whether your goal is emergency restoration of a failed drive or a planned retrofit during scheduled maintenance, this solution is engineered to reduce commissioning time and preserve your existing wiring infrastructure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1336T-MCB-SP34B replacement or system migration involves more than swapping the control board. During retrofit projects, engineers commonly address the full drive control stack to ensure long-term reliability. The 1336-MOD-L2 parameter memory module is typically recovered from the failed drive and used to restore all programmed parameters to the new board, eliminating the need to re-enter hundreds of drive settings manually — a critical time-saver during emergency maintenance windows.

Where DH+ or Remote I/O network connectivity is required, the existing 1336-GM-1 or 1336-GM-2 communication option cards can be transferred directly to the replacement board without reconfiguration, preserving the existing PLC network topology. For facilities running a 1747 SLC 500 or 1756 ControlLogix rack alongside the 1336 PLUS II drive, this means the PLC program and I/O mapping remain unchanged after the board swap — a significant advantage in time-critical production environments.

For facilities undertaking a broader drive modernization program, the PowerFlex 400 and PowerFlex 525 series represent the current-generation successors to the 1336 PLUS II platform. These drives support EtherNet/IP natively and integrate with existing ControlLogix or CompactLogix PLC systems without additional communication gateways. In mixed-generation control cabinets, 1492-IFM interface modules and pre-wired terminal block cables simplify I/O rewiring and reduce the risk of field wiring errors during commissioning.

Where signal isolation is required between the legacy drive and updated PLC I/O cards — particularly in older systems using 4–20 mA analog speed references — DIN-rail-mounted signal isolators and analog signal conditioners are recommended to maintain loop integrity. For installations where the 1336 PLUS II drive shares a control cabinet with a ControlLogix rack, verifying the 1756-PA72 or 1756-PB72 power supply capacity before adding new I/O modules is a standard pre-commissioning step.

Panel-mount HMI terminals such as the PanelView Plus 7 can be retained or upgraded in parallel with the drive replacement, as their communication links to the PLC are independent of the drive control board. In high-availability production environments, maintaining a tested spare 1336T-MCB-SP34B on the shelf is the most cost-effective insurance against unplanned downtime. Our stock is pre-tested, serialized, and shipped with a full inspection report.

Retrofit Guidance FAQ

Q: Can I reuse my existing control wiring?
A: Yes. The 1336T-MCB-SP34B uses the same TB1/TB2 terminal block layout as all 1336 PLUS II main control boards. No rewiring is required for a direct board swap.

Q: How do I restore my drive parameters after replacing the board?
A: If a 1336-MOD-L2 memory module was installed in the original drive, insert it into the replacement board and perform a parameter restore via the HIM keypad. Alternatively, use a DriveTools SP backup file uploaded via the 1203-USB or 1203-SSS serial converter cable.

Q: Are existing DH+ or Remote I/O option cards compatible with the replacement board?
A: Yes. All standard 1336 PLUS II option cards (1336-GM-x series) are physically and electrically compatible with the replacement 1336T-MCB-SP34B. Transfer the card from the failed board to the replacement board before powering up.

Q: What if my control cabinet has limited space for a migration to PowerFlex?
A: The 1336 PLUS II and PowerFlex 400 share similar frame sizes for equivalent power ratings. A frame-by-frame comparison using Rockwell’s Product Selection Toolbox is recommended before ordering. For tight enclosures, the PowerFlex 525 compact frame may offer a better fit.

Q: Can this board be used in a 1336 PLUS (non-II) drive?
A: No. The 1336T-MCB-SP34B is specific to the 1336 PLUS II series. It is not cross-compatible with the earlier 1336 PLUS (1336F) platform.

Q: What communication protocols are supported?
A: The base board supports DH+ and Remote I/O. DeviceNet, ControlNet, and other protocols are available via the corresponding 1336-GM-x option cards.

Q: Is programming required after board replacement?
A: No reprogramming is required if parameters are restored from a 1336-MOD-L2 memory module or a DriveTools SP backup. The replacement board is firmware-matched to the 1336 PLUS II series and ready for parameter restore immediately after installation.

Warranty Assurance

Every 1336T-MCB-SP34B replacement board shipped from TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional inspection including power-on self-test, firmware version verification, connector integrity check, and visual inspection for component damage. Units that do not pass inspection are not shipped.

In the event of a warranty claim, our after-sales team responds within 24 business hours. Defective units are eligible for replacement or full refund at the buyer’s discretion. We maintain buffer stock of critical spare boards to support rapid replacement dispatch, minimizing the impact on your production schedule.

For urgent requirements, expedited shipping via DHL Express, FedEx International Priority, or UPS Worldwide Express is available to most destinations. Standard lead time from order confirmation to dispatch is 1–3 business days. Bulk orders for MRO stocking programs are welcome — please contact us for volume pricing and consignment stock arrangements.

All units are shipped in anti-static packaging with moisture barrier protection, suitable for long-term storage in MRO inventory environments.
