Servo-drive replacement mistakes often begin with a correct family name and the wrong motor pairing. Voltage, current, encoder, brake, communication, firmware, connector, and parameter requirements can make two MINAS units unsuitable for the same axis. A model-checking RFQ should prove the axis relationship before a price is compared.
TOPNLMS focuses on model evidence because motion-control failures arrive during narrow production windows. The goal is to identify an exact spare quickly while keeping substitutes and migration candidates clearly conditional.
Match the drive to the motor and axis

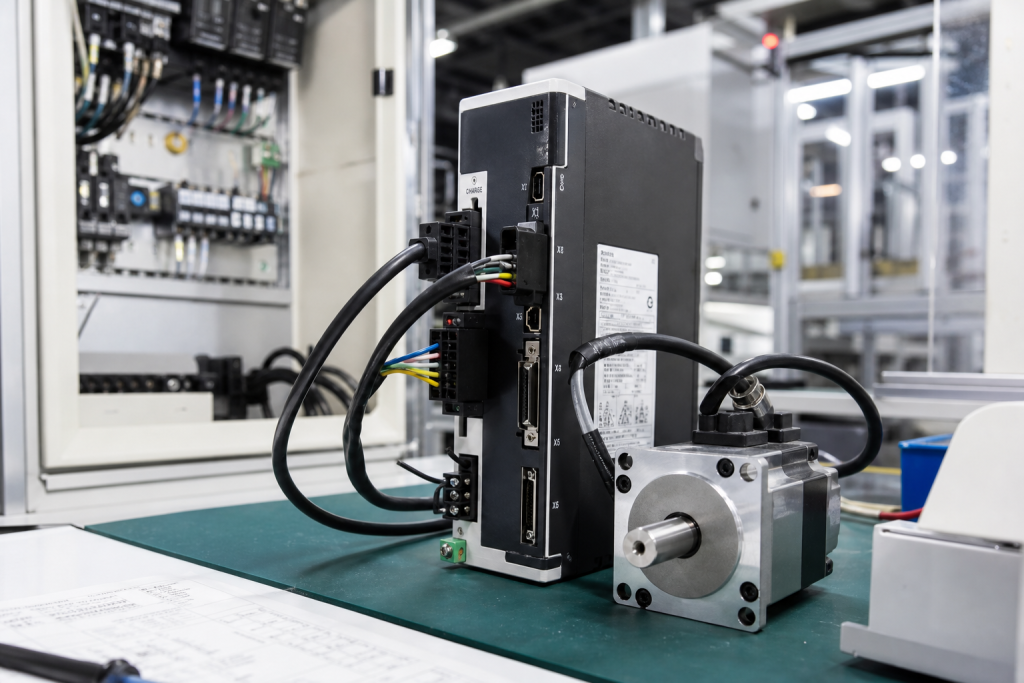

Record drive model, voltage, current, motor model, encoder, brake, connector, feedback, control interface, network, mounting, and machine-axis role. Photograph drive and motor labels together where safe.
The live Panasonic MCDDT3520L01 reference and MINAS A5 MSD5AZA1Y reference are real catalog matches for an RFQ, but the installed motor and feedback evidence remains authoritative.
Include connector close-ups, cabinet mounting, cooling, cable ends, brake wiring, and the machine-side axis context. State whether the requirement is exact replacement, repair exchange, or a possible upgrade.
Preserve parameters and safety dependencies
Confirm parameter backup, tuning data, motor identification, firmware, homing, limits, safe functions, and the owner of commissioning. A drive without the correct parameter path may extend the outage.
Check voltage, current, overload, feedback, brake, inertia, motion profile, communication, and connector compatibility before considering an equivalent.
Ask suppliers to separate exact, substitute, repair, and bench-only options. Include actual-item photos, condition, test evidence, accessories, and warranty for surplus or refurbished offers.
Acceptance should prove the axis
After replacement, verify power, motor identification, encoder, direction, homing, limits, braking, alarms, communication, tuning, and the required production move.
Mark the spare exact, conditional, bench-tested, or engineering review required. A drive that reaches ready state is not automatically an accepted axis.
Save the drive and motor labels, parameter reference, cable pairing, approved settings, and final test record. This creates a reusable model-checking shortcut for the next emergency.
Build the RFQ around the installed function
A useful spare request begins with the installed function, not only a familiar brand name. State what the device does, where it sits, what it connects to, and what failure would stop or blind the process. Then add the exact label, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.
Separate an exact replacement from a possible substitute, repair exchange, bench item, and migration candidate. These options may all be commercially useful, but they do not carry the same approval burden. An exact spare may support a short outage window. A substitute may need wiring changes, parameter review, software work, or a production trial before it can be counted as recovery stock.
The product references in this article are live catalog examples, not permission to skip engineering checks. Compare the product page with the installed label and the plant record. If a suffix, connector, voltage, protocol, firmware family, or mechanical interface differs, keep the item conditional until the responsible engineer closes that gap.
Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. A clean-looking item is not automatically a field-ready spare, and an item that powers up is not automatically accepted by the control or protection function.
Keep the approved catalog and RFQ reference with the maintenance record, but do not let a catalog title replace the installed evidence. The useful record is the combination of model, function, interface, condition, test requirement, and decision owner.
Review the spare before the maintenance window, not only after a failure. Confirm that the item is still physically present, that packaging and accessories are intact, that the backup or test procedure is available, and that the responsible engineer is still named.
When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it. This may include a drawing comparison, firmware review, bench test, dimensional check, protection test, communication test, or production trial.
The final decision should be visible to stores, procurement, maintenance, and operations. Use plain status labels such as exact replacement, approved substitute, repair exchange, bench-only, or engineering review required.
FAQ
What must match on a MINAS A5 spare?
Match drive model, voltage, current, motor, encoder, brake, connector, feedback, communication, firmware, and axis role.
Can any MINAS A-series drive replace an A5 unit?
No. Motor, feedback, parameters, control, safety, connector, and commissioning requirements must be reviewed.
What photos should be sent with the RFQ?
Send drive and motor labels, connectors, cable ends, brake wiring, cabinet mount, cooling, and axis context.
What proves the drive is ready?
Motor identification, feedback, direction, homing, limits, braking, alarms, communication, tuning, and the production move.
Send TOPNLMS the drive and motor labels, connector photos, parameter status, axis role, and deadline. We can help make the MINAS A5 RFQ precise before purchase.
A useful record also states what the supplier cannot determine from a catalog page. Unknown firmware, missing drawings, unclear terminal scope, incomplete accessories, and untested condition should be written as open items so the quote remains honest and the plant has a short list of questions to close before the equipment is needed.
Use the same evidence at receiving that was used during selection. Compare the actual label and interface with the approved request, then save received-item photos with the work order. This helps maintenance, procurement, and stores learn from every replacement instead of starting the next RFQ from a blank screen.
