On September 21, ABB announced Infinitus, a direct-current portfolio designed primarily around AI data-center power from source to rack. The announcement says similar efficiency and architecture benefits may apply to manufacturing and other energy-intensive industries. That is a noteworthy signal, not a reason to retrofit every factory cabinet. The engineering question is where future DC distribution meets the familiar 24 VDC control-power layer, and which protection, isolation and redundancy boundaries must remain distinct. Plants should review actual designs and vendor documentation before translating a high-voltage infrastructure announcement into control-system spare requirements.
A planned test can show whether the system carries the actual load after one source is lost, whether alarms arrive at the operator station and whether restoration causes a transient. This is especially important in legacy DCS cabinets where power distribution has evolved through undocumented additions. A DeltaV KJ1501X1-BC5 is a catalog example of a DC power module; compatibility and function must be verified against the installed power architecture.
Draw the power path beyond the module
Trace the source breaker, AC feed, power module, redundancy or diode assembly, DC distribution, fuse terminals, controller carrier, I/O, communication equipment and any shared auxiliary loads. Mark common conductors, return paths, grounding points and alarm contacts. Compare the drawing with the cabinet and record undocumented taps, replacement wiring and loads added since commissioning.
Identify which control functions are on each branch and the process consequence of losing them. A redundant controller pair may still share an unprotected 24 V feed to network equipment, field barriers or remote I/O. Include battery-backed supplies, UPS and downstream converters where they actually participate in the same failure path.
Measure real load and margin

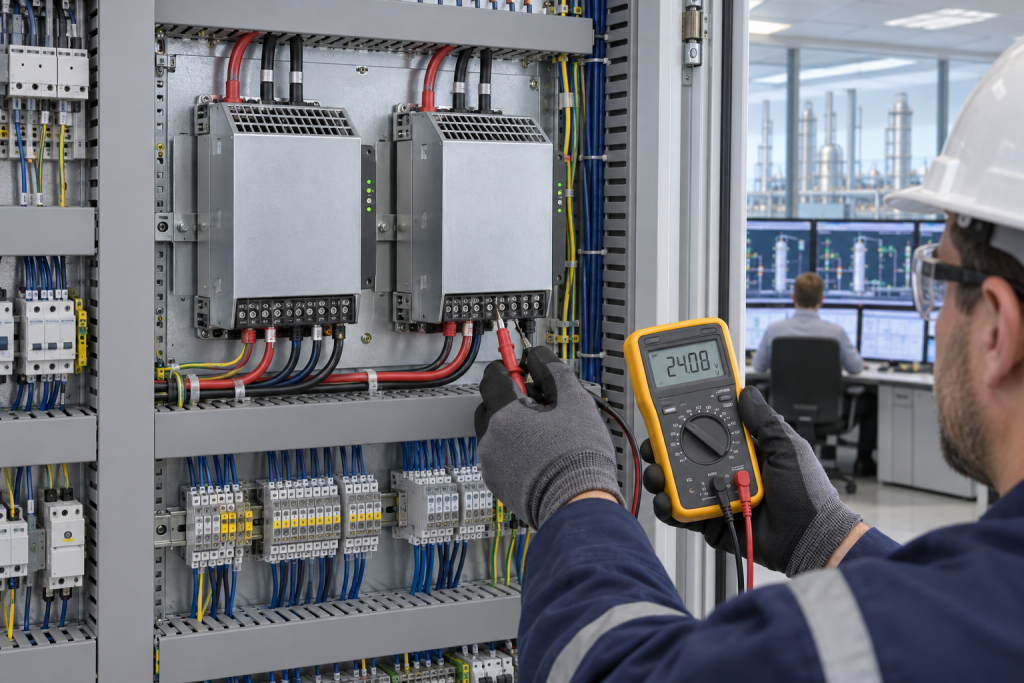

Record bus voltage at the source and representative downstream terminals under normal and peak operating conditions. Measure current on each branch using an approved method and compare with supply, fuse, wire and terminal ratings. Include startup loads, solenoid or relay switching, communication devices, cabinet heaters and recent additions. A nameplate capacity without measured utilization does not reveal remaining margin.
Look for unequal sharing, voltage drop, ripple, warm terminals, loose connections and abnormal temperature. Trends across operating states can reveal loads that appear only during a sequence or maintenance mode. Do not infer current sharing from front-panel indicators alone; follow the manufacturer method and site electrical safety requirements.
Test failover without creating a process hazard
Write an approved test plan with operations, controls and electrical staff. Define which source will be isolated, expected alarm, permissible interruption, compensating protection, abort criteria, rollback step and responsible person. Verify that the remaining path is healthy before removing one leg. Never pull a module or open a live DC circuit as an informal test.
During the controlled test, capture voltage and current before, during and after the change; observe module status, controller health, I/O quality, network links and operator alarms. Confirm that the surviving path carries the load within specification and that the system does not reboot or create a transient. Restore the source and check for inrush, alarm clearing and correct return to the intended sharing state.
Check alarm visibility and common-cause vulnerabilities
Redundancy is weak if a failed leg remains silent. Verify module fault contacts, distribution alarms, controller diagnostics and operator notification, including alarm priority and acknowledgment behavior. Confirm that test or maintenance inhibits are removed. Trend recurring low-voltage or imbalance warnings instead of treating them as nuisance messages.
The Emerson KJ1501X1-BC5 DeltaV DC power module and Honeywell 2MLR-AC22 TDC 3000 item belong to different control-system families and must not be confused as equivalents. When assessing a spare, match complete identity, role, rating, connector, revision and system configuration; do not substitute on the basis of a generic “power” description.
Turn test evidence into a stocking decision
Classify the supply as ready, conditionally available or unsupported based on verified system compatibility, condition and test evidence. Record the exact part and revision, expected load, redundancy scheme, storage requirements, inspection interval, acceptance criteria and replenishment lead time. A spare that has never been checked should not be counted the same as one proven in a representative setup.
If the cabinet has a common upstream failure point or little load margin, a second module alone will not reduce the dominant risk. The action may instead be circuit segregation, feeder protection, load redistribution, terminal repair, alarm correction or a planned architecture improvement. Prioritize changes by process consequence and test them in an approved outage window.
For a shared DCS cabinet, group loads by consequence and recovery time, not just by physical row. A communication switch or controller may deserve a separate feed from noncritical displays, while field circuits may require different protection. Make the proposed change visible on a marked-up drawing and review whether a fault on one fuse or terminal can still remove both redundant branches.
Questions Maintenance Teams Ask
Does installing two power modules guarantee redundancy?
No. Check common upstream feeds, distribution, returns, shared loads, alarms and the ability of one leg to carry the real load.
How do I prove load sharing?
Use the manufacturer and site-approved measurement method to record each branch current and bus voltage across normal and peak states.
Can I remove one power module while the DCS is running?
Only if the installed design and an authorized test plan explicitly permit it, with operations coordination and defined abort criteria.
What makes a DCS power module a valid spare?
Exact model, revision, rating, connector, system role, condition, configuration and documented acceptance evidence must match the approved application.
Send TOPNLMS the full power-module labels, source and distribution photos, system family, measured load and voltage, required condition, quantity and outage window. We can help identify a precise catalog item; your site electrical and controls owners should approve architecture compatibility.
