A failed legacy drive often creates two parallel decisions. Maintenance needs the motor back today, while engineering needs to decide how much longer the 1336 platform should remain in service. The wrong response is to collapse both decisions into an urgent search for “a 1336 board.” Power rating, frame, control option, interface hardware, motor data, and failure cause must stay visible.
Rockwell’s 1336 FORCE conversion guide documents the historical transition toward PowerFlex 700S and makes clear that migration is a system exercise. Even when a board-level spare is justified, the repair should produce evidence that improves the eventual drive replacement rather than resetting the clock with no better documentation.
Identify The Drive Before Identifying The Board
Photograph the complete drive nameplate, frame and enclosure, input voltage, output current, horsepower or kilowatt rating, control option, communication hardware, motor nameplate, braking components, and cabinet layout. Record the fault code, operating state, load condition, ambient temperature, and whether the failure followed a supply event or motor problem.
Board markings can be misleading when viewed outside the assembly. Use the drive catalog number and revision together with the board number. Note connector positions, jumper settings, gate leads, mounting hardware, insulation barriers, and any field modifications. A board that looks identical may serve a different rating or option.
Power Board Failure Requires Cause Isolation

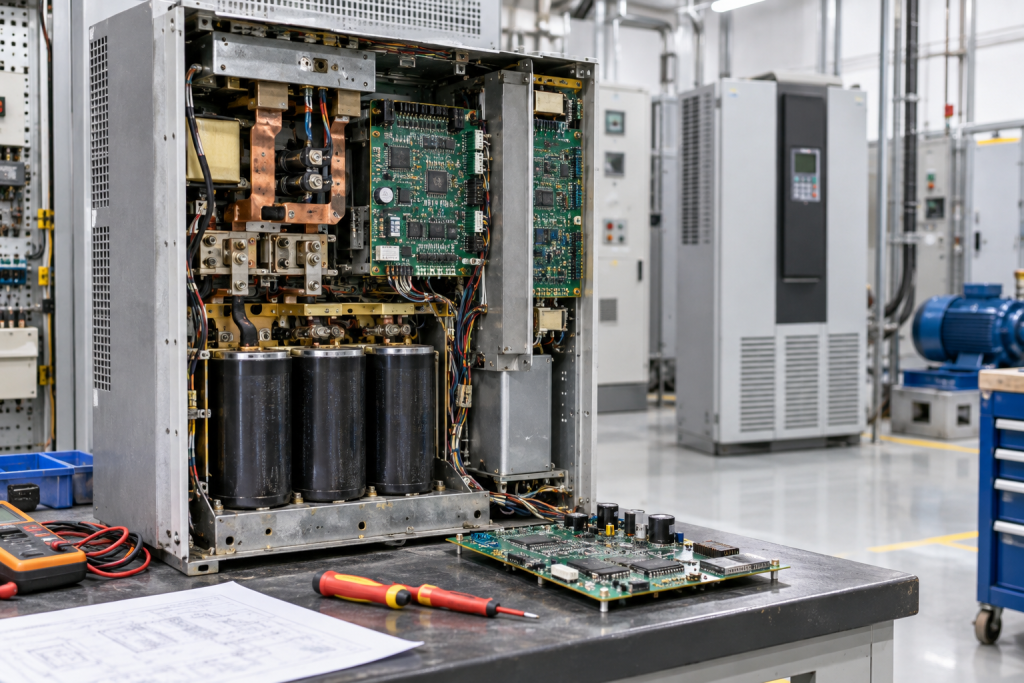

The 1336-BDB-SP5C drive power board belongs in an inquiry only after the surrounding power stage has been inspected. Check incoming supply, fuses, precharge components, DC-bus capacitors, power semiconductors, motor insulation, grounding, cooling fans, contamination, and signs of arcing or heat.
Installing a replacement board without addressing a shorted power device, degraded capacitor bank, or motor-cable fault can destroy the spare immediately. Record resistance and insulation measurements under the site procedure, and keep photographs of damaged components. Those findings help a repair provider understand whether the board failure was primary or consequential.
Interface Hardware Defines The Control Boundary
A 74101-954-53 1336T interface replacement should be matched against the installed control and communication arrangement. Capture terminal assignments, encoder or feedback interfaces, network option, reference source, start-stop logic, interlocks, and any external speed or torque command.
During fault isolation, prove whether the missing command originates in the plant control system, interface board, drive logic, or power stage. A modern meter and signal trace can prevent a healthy control board from being replaced because an upstream permissive or reference signal is absent.
Preserve Parameters And Operating Baselines
Archive the drive parameters in a readable format and keep a printed or exported critical-parameter list with the asset. Include motor data, acceleration and deceleration, current limits, control mode, scaling, skip frequencies, communication settings, and fault-history information. If upload tools or adapters are scarce, document them as spare dependencies.
Record baseline motor current, speed, process load, acceleration time, temperature, and any known vibration or nuisance-trip pattern. Those values become acceptance criteria for both a board repair and a future migration. Without a baseline, a replacement may run while quietly reducing process performance or motor protection.
Decide Whether The Spare Buys Useful Time
A board spare is reasonable when the drive and motor are otherwise serviceable, the failure cause is understood, installation skills exist, and the remaining service period supports a planned migration. It is less attractive when several assemblies are degraded, documentation is poor, or production cannot tolerate another board-level outage.
For migration, compare electrical rating, overload duty, motor feedback, braking, enclosure, cooling, physical footprint, control wiring, network integration, safety requirements, and process response. Plan adapter panels and cable work before the outage. A successor drive with enough power can still fail the application if its dynamic behavior or interfaces are not engineered.
Acceptance Should Cover Drive And Process
After repair, verify precharge, DC bus, control power, parameters, command and reference signals, motor rotation, current balance, acceleration, deceleration, braking, protection, communications, and interlocks. Begin uncoupled or at minimum load where the process permits, then move through controlled load stages.
Close the work only after the driven equipment reaches representative operation without abnormal current, heat, vibration, or faults. Update the record with installed board serials, measurements, parameters, photos, and remaining migration actions. The repaired drive should leave the plant better prepared than it was before the failure.
Make The Next Decision Easier
After the drive returns to service, hold a short review while the evidence is fresh. Decide whether another identical board should be stocked, whether the repaired unit should be sent for evaluation, and which measurements or drawings were missing. Assign a migration action with an owner and date rather than leaving it as an open recommendation.
This closes the gap between maintenance and capital planning. Each 1336 repair then contributes real data about failure modes, remaining support burden, downtime consequence, and conversion complexity, allowing management to replace the highest-risk drives first.
FAQ
Can a 1336 power board be selected by its board number alone?
No. Match it with the complete drive catalog number, frame, rating, revision, control option, connectors, and power-stage context.
What should be checked before installing a replacement power board?
Inspect supply quality, fuses, precharge, DC-bus capacitors, power semiconductors, motor and cable insulation, grounding, cooling, and contamination.
Should parameters be backed up before board work?
Yes. Preserve motor, control, protection, communication, and process-critical settings, plus the tools and adapters needed to restore them.
When is migration better than another board repair?
Migration deserves priority when failures are recurring, several assemblies are degraded, support skills are disappearing, or downtime consequence exceeds the value of extending the old drive.
